2000KVA Power Distribution Box 20KV Pre Fabricated Substation Intelligent 33KV MV Box Three
2000KVA Power Distribution Box 20KV Pre Fabricated Substation Intelligent 33KV MV Box Three Product Specifications Attribute Value Frequency 60Hz Phase Three Application Power transformer Output Voltage 415V, 380V, 400V, 110V, 220V, 440V, 480V Input Voltage 11kV, 10.5kV, 6.3kV, 6.6kV, 6kV, 10kV, 35kV Type Oil-Immersed Transformer Product Overview Hentg Power 20KV 33KV 2000KVA Outdoor Packaged Hv/MV Intelligent Box Power Distribution 20kV Pre-installed Box Substation High
2000KVA Power Distribution Box
,20KV Pre Fabricated Substation Box
| Attribute | Value |
|---|---|
| Frequency | 60Hz |
| Phase | Three |
| Application | Power transformer |
| Output Voltage | 415V, 380V, 400V, 110V, 220V, 440V, 480V |
| Input Voltage | 11kV, 10.5kV, 6.3kV, 6.6kV, 6kV, 10kV, 35kV |
| Type | Oil-Immersed Transformer |

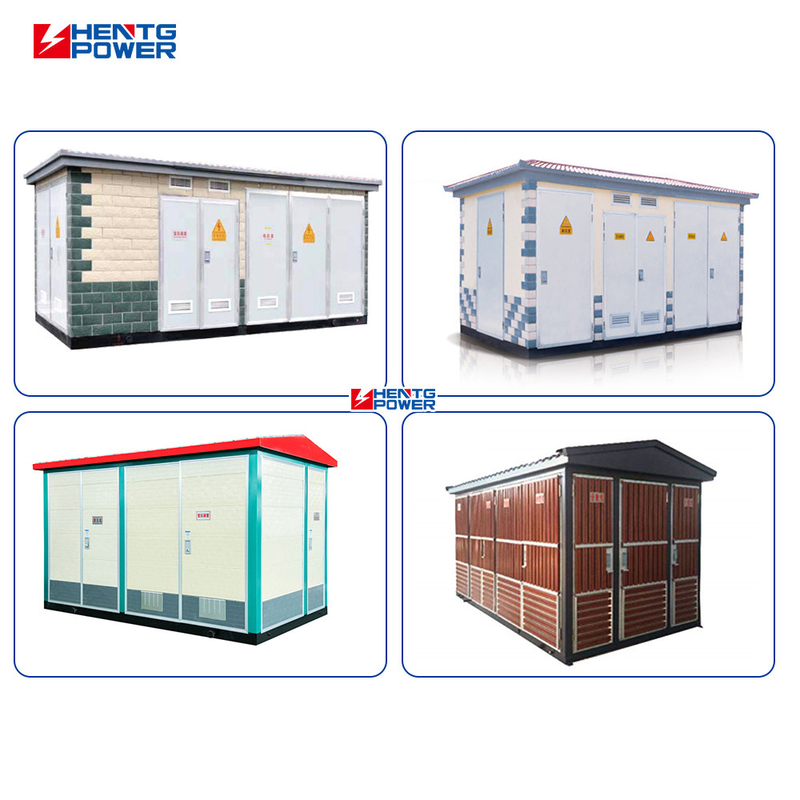

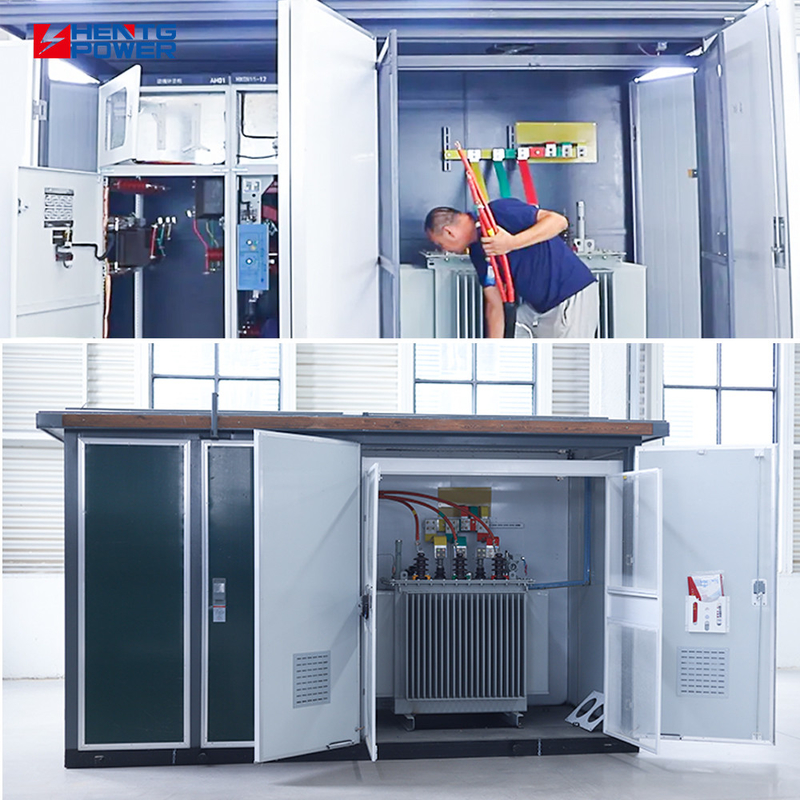

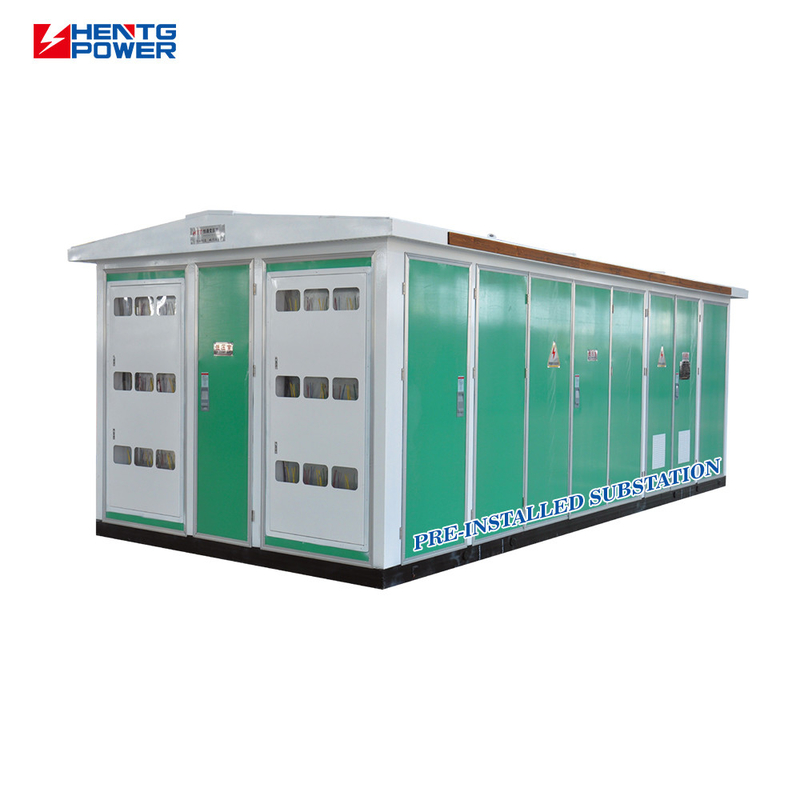

Hentg Power 20KV 33KV 2000KVA Outdoor Packaged Hv/MV Intelligent Box Power Distribution 20kV Pre-installed Box Substation
High Protection Level: Enclosure with IP55 protection made of galvalume or stainless steel for extreme environments.
- Over 100,000 sqm plant, 10,000+ units/year capacity
- Certified with ISO, CE etc.
- Exported to 45+ countries worldwide
- Aesthetic and Durable Appearance: Clean and modern appearance with strong environmental adaptability. Integrates well with surrounding architecture and landscaping.
- Proximity to Medium-Voltage Load Centers: Enables deployment close to load centers, reducing distribution line length and improving power quality.
- Cost-Effective Operation: Requires no civil infrastructure or full-time staffing, with long maintenance cycles for lower total cost of ownership.
- Reusable and Environmentally Friendly: Modular design allows relocation and reuse based on urban development needs.
-
