3 Phase Transformer Oil Immersed Type 10KV 100KVA 125KVA Two Windings Rectangle Shape
3 Phase Transformer Oil Immersed Type 10KV 100KVA 125KVA Two Windings Rectangle Shape Product Specifications Attribute Value Frequency 50Hz, 60Hz Phase Three Coil Number Two Windings, Multi Winding Application Power Transformer Coil Structure Round coil, Shell-Type Coil Output Voltage 220V, 380V, 400V, 440V, 480V Input Voltage 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV Type Oil-Immersed Transformer, Oil Type Winding Material 100% Copper/Aluminum Shape Rectangle Capacity 100KVA, 125KVA
3 Phase Transformer Oil Immersed Type
,Two Windings 3 Phase Transformer
,10KV 100KVA Transformer Oil Immersed Type
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz |
| Phase | Three |
| Coil Number | Two Windings, Multi Winding |
| Application | Power Transformer |
| Coil Structure | Round coil, Shell-Type Coil |
| Output Voltage | 220V, 380V, 400V, 440V, 480V |
| Input Voltage | 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV |
| Type | Oil-Immersed Transformer, Oil Type |
| Winding Material | 100% Copper/Aluminum |
| Shape | Rectangle |
| Capacity | 100KVA, 125KVA |
| Vector Group | Dyn11 / Yyn0 |
| Usage | Power Distribution System Power Transformer |
| Warranty | 2 Years |
| Cooling | ONAN/ONAF or Customized |
| Rated Power | 10kVA - 500MVA |
| Impedance | 4% |
The Type S13 oil-immersed distribution transformer is an advanced design based on the S11 model, incorporating new materials and technologies through independent innovation. Optimized core and coil structures significantly reduce no-load loss and noise levels by an average of 20% compared to JB/T10088-2004 standards, achieving domestic advanced performance levels.
- Rated voltage of 35KV for medium voltage distribution networks
- Ensures stable power supply for urban and industrial applications
- Wide compatibility with various power systems

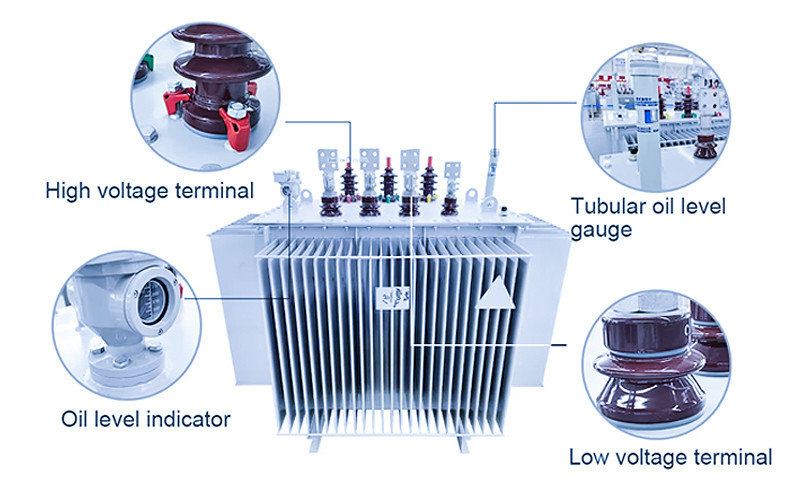

- Fully sealed tank with high-quality insulating oil
- Efficient heat dissipation reduces operating temperature
- Extends transformer lifespan and improves operational safety
| Rated Capacity (KVA) | Vector Group | Voltage Combination | No-load Loss | Load Loss | No-load Current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10/6.3/6 ±5% ±2X2.5% | 80 | 630 | 1.5 | 4.0 |
| 50 | 100 | 910 | 1.3 | |||
| 63 | 110 | 1090 | 1.2 | |||
| 100 | 150 | 1580 | 1.1 | |||
| 125 | 170 | 1890 | 1.1 | |||
| 160 | 200 | 2310 | 1.0 | |||
| 200 | 240 | 2730 | 1.0 | |||
| 250 | 290 | 3200 | 0.9 | |||
| 315 | 340 | 3830 | 0.9 | |||
| 500 | 480 | 5410 | 0.8 |

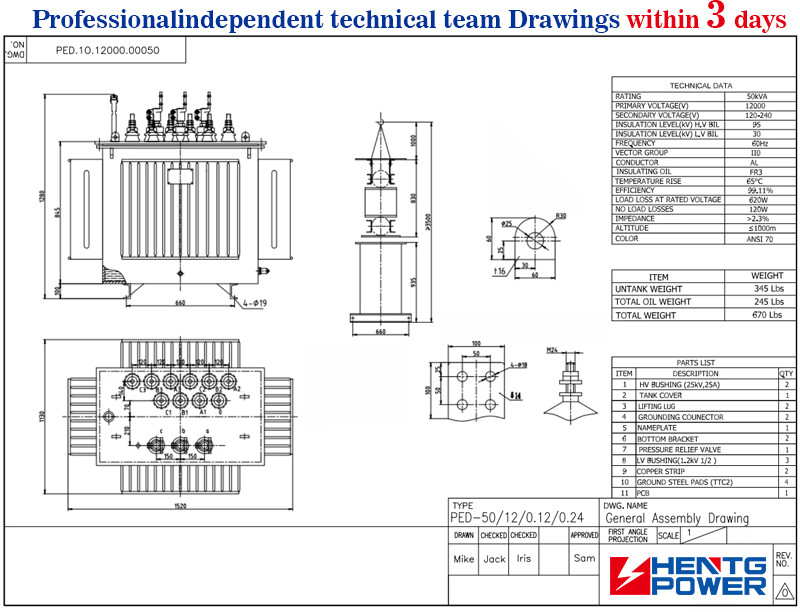

We respond within 1 hour with suitable transformer recommendations, competitive quotations, and flexible payment terms. Our professional drawing and technical teams will confirm all specifications within 7 days after payment, including technical data, weight, and parts list.
After finalizing production drawings, we source materials, manufacture, and conduct rigorous quality inspections. We provide both QC and test reports, with raw materials strictly screened for quality. Custom accessories available upon request.
Our professional team provides installation guidance and on-site support when needed. All products come with a 2-year warranty and comprehensive after-sales service.
- In-house R&D & Manufacturing with Quality Assurance
- Fast Delivery & Quick Response Times
- OEM/ODM Customization Available
- Comprehensive After-Sales Support
- Extensive Global Export Experience
HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011. Our 100,000 square meter facility specializes in reliable, high-performance solutions for global power systems.

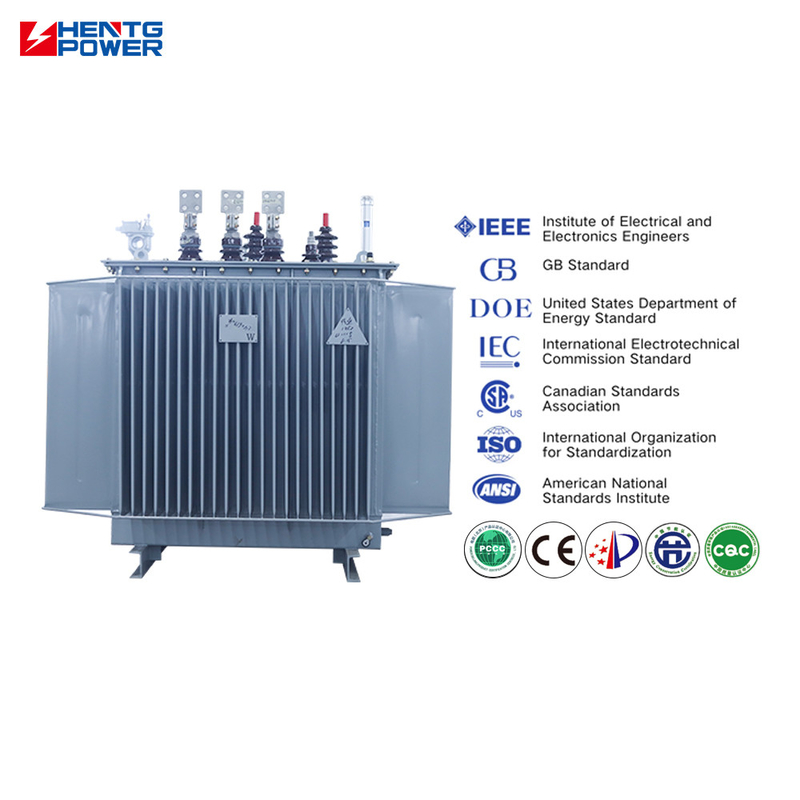

We conduct pre-production samples and final inspections before shipment, providing QC & test reports. We accept Factory Acceptance Tests (FAT) and manufacture to ANSI/IEEE/DOE2016/CSA/IEC60076 standards. All products come with a 2+ year warranty.
We offer OEM services with negotiable payment terms. Our professional technical team includes 30+ senior engineers providing 24/7 support with 30-minute response times.
-
