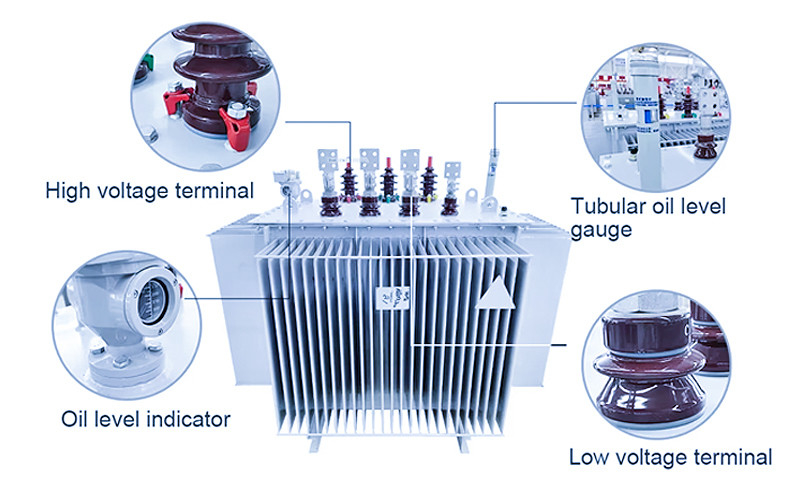

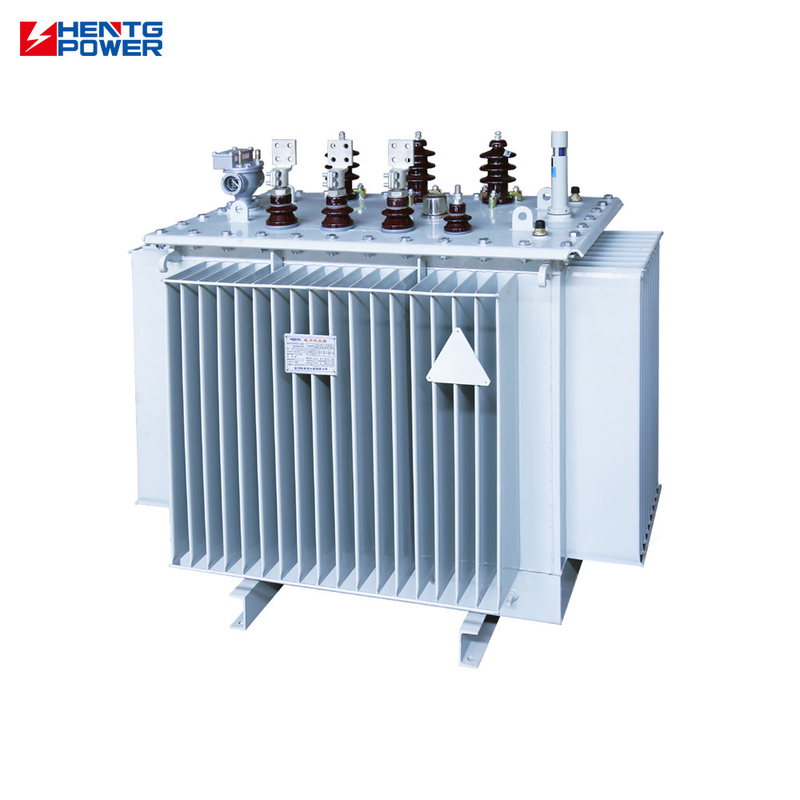

60Hz Frequency Oil Filled Step Up Step Down Power Transformer 160KVA 200KVA 250KVA
60Hz Frequency Oil Filled Step Up Step Down Power Transformer (160KVA - 250KVA) Key Specifications Attribute Value Frequency 60Hz Phase Three Coil Structure Layer coil, round coil Output Voltage 415V, 110V, 220V, 380V, 400V, 440V, 480V Input Voltage 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV Cooling Method ONAN ONAF OFAF Warranty 2 Years Capacity 160KVA - 250KVA Product Overview Our 60Hz oil-filled power transformers are designed for reliable step-up and step-down voltage
60Hz Frequency Step Down Power Transformer
,Oil Filled Step Up Power Transformer
,Step Down Power Transformer 160KVA
| Attribute | Value |
|---|---|
| Frequency | 60Hz |
| Phase | Three |
| Coil Structure | Layer coil, round coil |
| Output Voltage | 415V, 110V, 220V, 380V, 400V, 440V, 480V |
| Input Voltage | 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV |
| Cooling Method | ONAN ONAF OFAF |
| Warranty | 2 Years |
| Capacity | 160KVA - 250KVA |
Our 60Hz oil-filled power transformers are designed for reliable step-up and step-down voltage conversion in industrial and commercial applications. Available in capacities from 160KVA to 250KVA, these units feature robust construction and advanced cooling systems.
- Rated voltage of 35KV for medium voltage distribution networks
- Ensures stable power supply for urban and industrial applications
- Wide compatibility with various power systems
- Complies with IEC60076, IEEE, and GB standards
- Reliable quality and stable performance
- CE, ISO9001, ISO14001 certified for global markets
- Fully sealed structure for improved moisture resistance
- Customizable voltage, connection method, and enclosure options
- Available in aluminum or copper winding
- Vector groups: Dyn11 / Yyn0
- Protection level: IP00 for outdoor installation
- 20-30% lower no-load loss compared to S11 models
- Reduced load loss through improved winding structure
- Noise levels reduced by 20% on average
- Fully sealed tank designs minimize oil leakage risks
- Reduced environmental impact and maintenance requirements
- Extended service life of 20-30 years with proper maintenance
| Rated Capacity (KVA) | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Impedance (%) |
|---|---|---|---|---|
| 160 | 200 | 2310 | 1.0 | 4.0 |
| 200 | 240 | 2730 | 1.0 | 4.0 |
| 250 | 290 | 3200 | 0.9 | 4.0 |

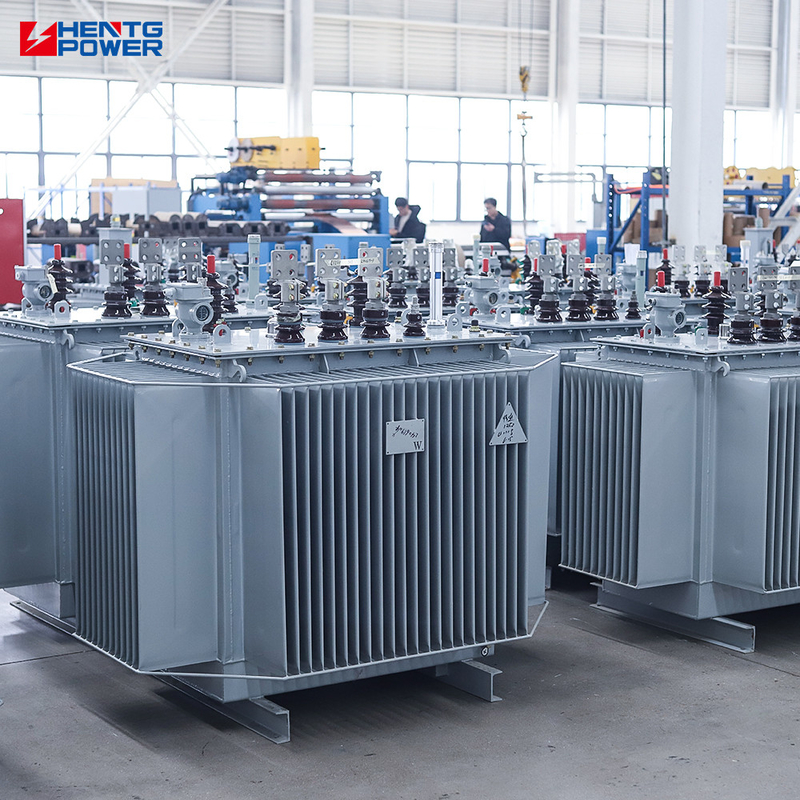

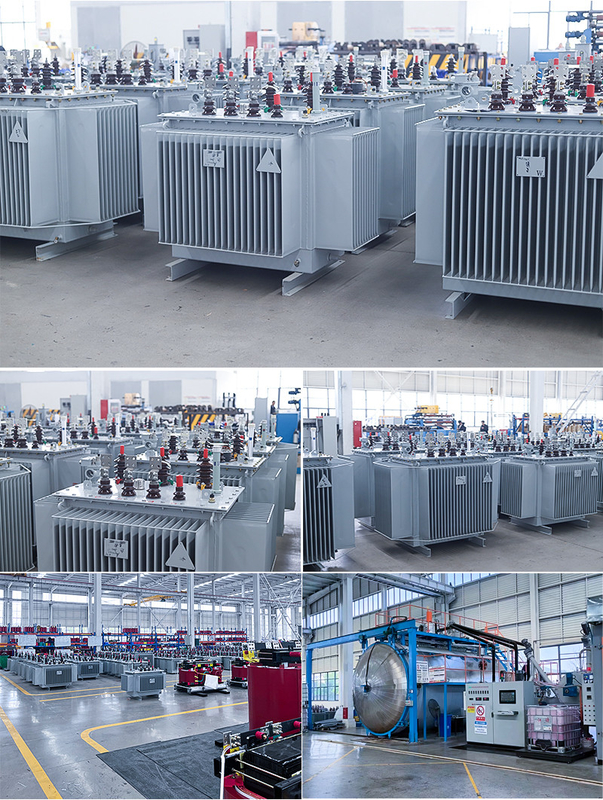

HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011. Our 100,000 square meter facility specializes in reliable, high-performance solutions for global power systems.
We conduct pre-production samples and final inspections before shipment, providing QC & test reports. We accept Factory Acceptance Tests (FAT) and manufacture transformers up to 500KV 480MVA capacity, compliant with ANSI/IEEE/DOE2016/CSA/IEC60076 standards.
Our professional team includes 30+ senior engineers offering 24/7 support with 30-minute response times. We provide complete technical drawings within 7 days of consultation.
-
