Oil Filled Power Transformer High Voltage Three Phase Step Down Transformer 1000Kva 2500Kva
Oil Filled Power Transformer High Voltage Three Phase Step Down Transformer 1000Kva 2500Kva Product Overview The S13 oil-immersed distribution transformer is an advanced power solution based on the original S11 model, incorporating new materials and innovative technologies to optimize core and coil structures. This design significantly reduces no-load loss and noise levels, achieving performance levels that meet domestic advanced standards. Key Specifications Type: Distributi
2500Kva Oil Filled Power Transformer
,Three Phase Step Down Transformer 1000 Kva
,High Voltage Oil Filled Power Transformer

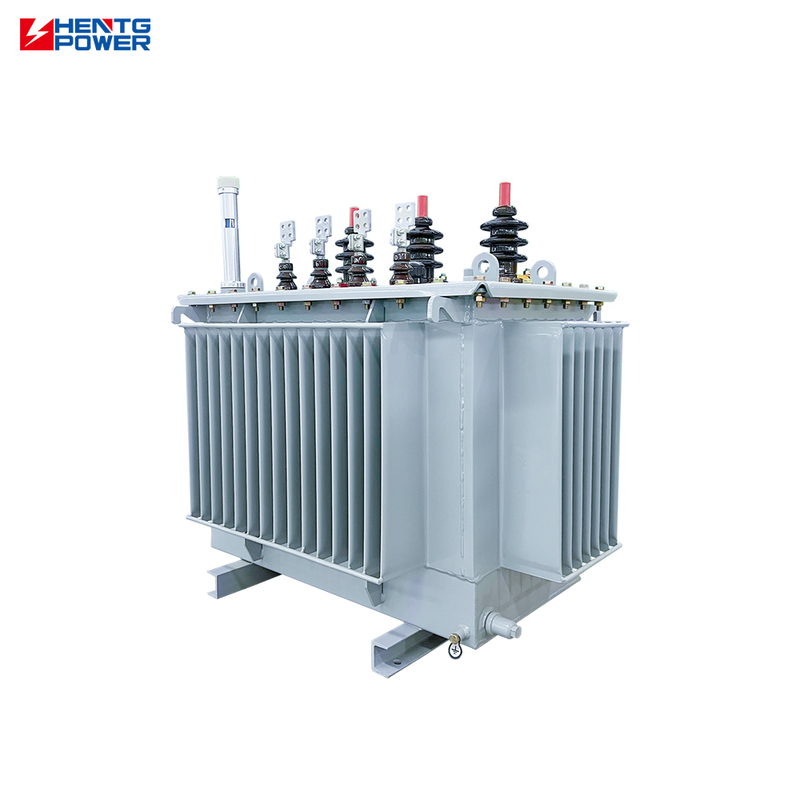

The S13 oil-immersed distribution transformer is an advanced power solution based on the original S11 model, incorporating new materials and innovative technologies to optimize core and coil structures. This design significantly reduces no-load loss and noise levels, achieving performance levels that meet domestic advanced standards.
- 20% lower noise level compared to JB/T10088-2004 standard
- Reduced no-load loss through optimized core and coil design
- Supports ONAN (Oil Natural Air Natural) and ONAF (Oil Natural Air Forced) cooling options
- Adaptable to indoor/outdoor, pad-mounted, or pole-mounted installations
- Built with low-loss silicon steel and optimized windings
- Both no-load and load losses below national standards
| Rated Capacity (KVA) | Vector Group | Voltage Combination | No-load Loss | Load Loss | No-load Current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 80 | 630 | 1.5 | 4.0 |
| 50 | 100 | 910 | 1.3 | |||
| 63 | 110 | 1090 | 1.2 | |||
| 100 | 150 | 1580 | 1.1 | |||
| 160 | 200 | 2310 | 1.0 | |||
| 315 | 340 | 3830 | 0.9 | |||
| 630 | 570 | 6200 | 0.6 | 4.5 | ||
| 1000 | 830 | 10300 | 0.6 |
Ideal for power distribution networks in urban and rural areas, providing efficient energy transformation for various industrial and commercial applications.
-
