Place of Origin:
Hunan, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
S13
| Attribute | Value |
|---|---|
| Type | Power transformer, distribution transformer, Oil-filled Transformer |
| Frequency | 50Hz, 60Hz |
| Winding Material | Aluminum |
| Application | Power |
| Phase | Three |
| Coil Structure | Layered Winding |
| Coil Number | Multi-winding coil |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV |
| Output Voltage | 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V |
| Cooling Method | ONAN ONAF OFAF |
| Vector Group | Dyn11/Yyn0 |
| Protection | Overload |
| Standard | IEC / GB |
| Rated Capacity | 800kna-31500kva |

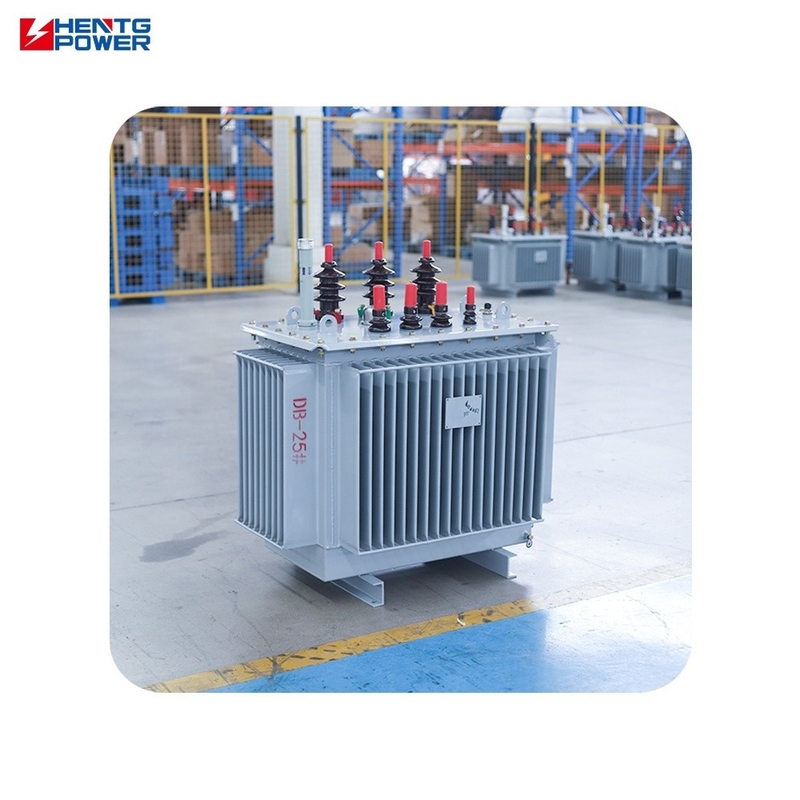

Our oil-immersed distribution transformers range from 30kVA to 2500kVA, with voltage levels up to 35kV. They are widely used in power utilities, renewable energy, industrial facilities, railway systems, and urban infrastructure. Designed to IEC and ANSI standards, our transformers offer high efficiency, low losses, and long service life, suitable for both indoor and outdoor environments.
| Rated Capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance | |||
|---|---|---|---|---|---|---|---|---|---|
| HV | Tapping range | LV | |||||||
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | ±5% ±2X2.5% | 0.4 | 80 | 630 | 600 | 1.5 | 4.0 |
| 50 | 100 | 910 | 870 | 1.3 | |||||
| 63 | 110 | 1090 | 1040 | 1.2 | |||||
| 80 | 130 | 1310 | 1250 | 1.2 | |||||
| 100 | 150 | 1580 | 1500 | 1.1 | |||||
| 125 | 170 | 1890 | 1800 | 1.1 | |||||
| 160 | 200 | 2310 | 2200 | 1.0 | |||||
| 200 | 240 | 2730 | 2600 | 1.0 | |||||
| 250 | 290 | 3200 | 3050 | 0.9 | |||||
| 315 | 340 | 3830 | 3650 | 0.9 | |||||
| 400 | 410 | 4520 | 4300 | 0.8 | |||||
| 500 | 480 | 5410 | 5150 | 0.8 | |||||
| 630 | 570 | 6200 | 6200 | 0.6 | 4.5 | ||||
| 800 | 700 | 7500 | 7500 | 0.6 | |||||
| 1000 | 830 | 10300 | 10300 | 0.6 | |||||
| 1250 | 970 | 12000 | 12000 | 0.5 | |||||
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms. We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment.

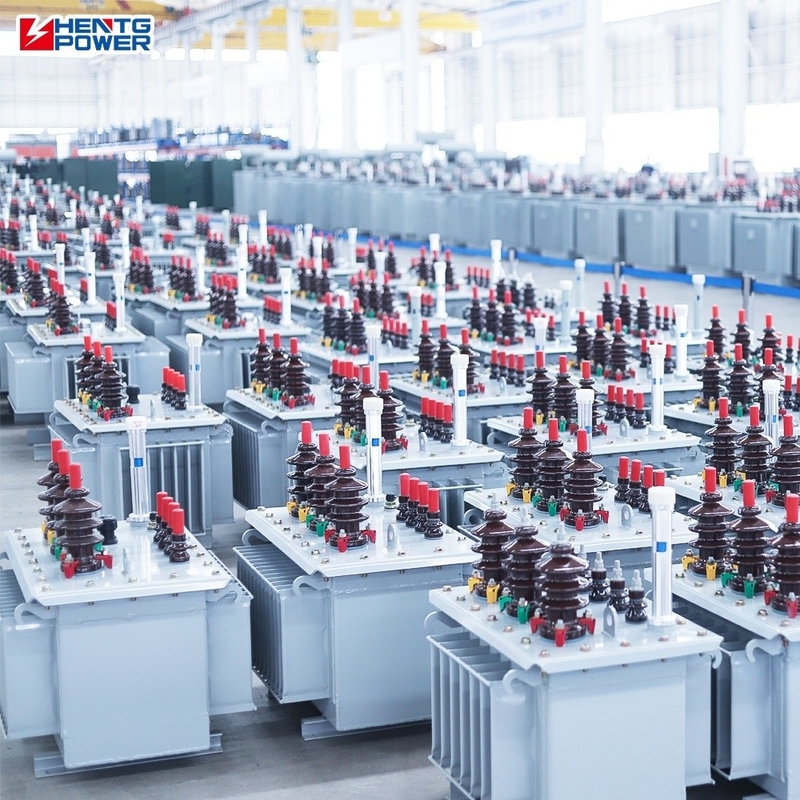

After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service.
If you have any questions, welcome to contact us for discussion!
