Place of Origin:
Hunan, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
S13
| Attribute | Value |
|---|---|
| Type | distribution transformer, Oil-filled Transformer |
| Frequency | 50Hz, 60Hz |
| Winding Material | Copper |
| Application | Power |
| Phase | Three |
| Coil Structure | Layered Winding |
| Coil Number | Multi-winding coil |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV |
| Output Voltage | 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V |
| Product Name | Three Phase Transformer |
| Material | Aluminum Winding |
| Application | Power Distribution System |
| Vector Group | Dyn11/Yyn0 |
| Protection | Overload |
| Transformer type | S13-MRL Oil-immersed Transformer |
| Usage | Power Electronic |
10kv Voltage Transformer Price 125kva 160kva 200kva 250kva 0.4kv Distribution Transformer 3 Phase Dual-winding Transformer

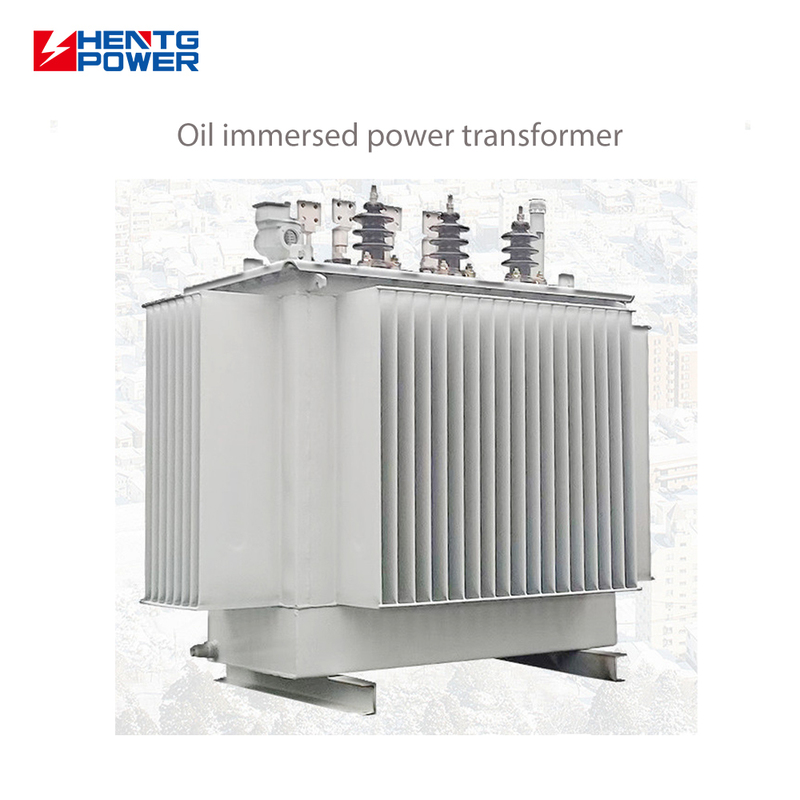

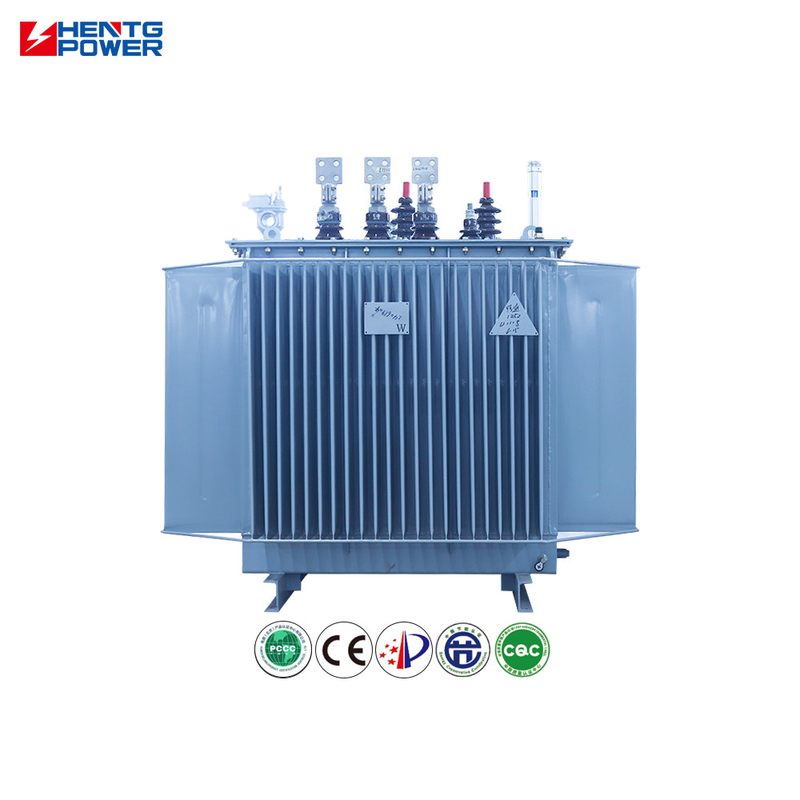

Type S13 oil-immersed distribution transformer
Our oil-immersed distribution transformers are widely used in power transmission, industrial and commercial electricity, renewable energy systems, and urban infrastructure. With a capacity range from 30kVA to 2500kVA and voltage levels up to 35kV, these units feature low loss, high reliability, and stable operation, fully compliant with IEC, ANSI, and other international standards.
Type S13 oil-immersed distribution transformer is based on the original S11 distribution transformer, through the research and application of new materials and new technologies and the combination of independent innovation and technology introduction, through the optimization and innovative design of the core and coil structure, to reduce the no-load loss and noise purposes. Compared with the current national standard JB/T10088-2004, the noise level decreased by 20% on average, and the product performance level reached the domestic advanced level.
Ideal distribution equipment for urban and rural distribution network centers.
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance | |||
|---|---|---|---|---|---|---|---|---|---|
| HV | Tapping range | LV | |||||||
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | ±5% ±2X2.5% | 0.4 | 80 | 630 | 600 | 1.5 | 4.0 |
| 50 | 100 | 910 | 870 | 1.3 | |||||
| 63 | 110 | 1090 | 1040 | 1.2 | |||||
| 80 | 130 | 1310 | 1250 | 1.2 | |||||
| 100 | 150 | 1580 | 1500 | 1.1 | |||||
| 125 | 170 | 1890 | 1800 | 1.1 | |||||
| 160 | 200 | 2310 | 2200 | 1.0 | |||||
| 200 | 240 | 2730 | 2600 | 1.0 | |||||
| 250 | 290 | 3200 | 3050 | 0.9 | |||||
| 315 | 340 | 3830 | 3650 | 0.9 | |||||
| 400 | 410 | 4520 | 4300 | 0.8 | |||||
| 500 | 480 | 5410 | 5150 | 0.8 | |||||
| 630 | 570 | 6200 | 6200 | 0.6 | 4.5 | ||||
| 800 | 700 | 7500 | 7500 | 0.6 | |||||
| 1000 | 830 | 10300 | 10300 | 0.6 | |||||
| 1250 | 970 | 12000 | 12000 | 0.5 | |||||
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms.
We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list.
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation.
