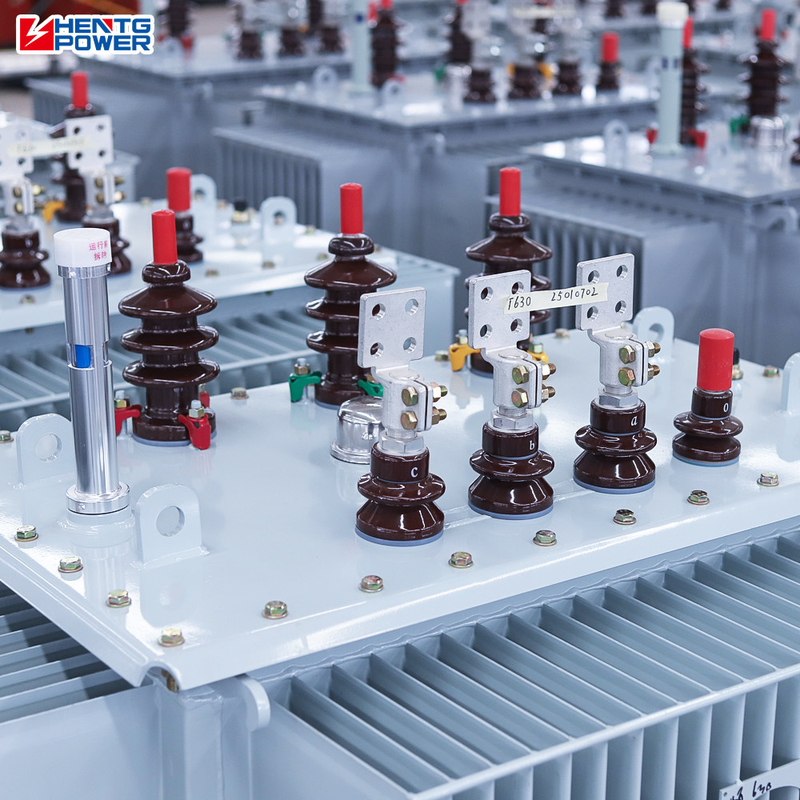

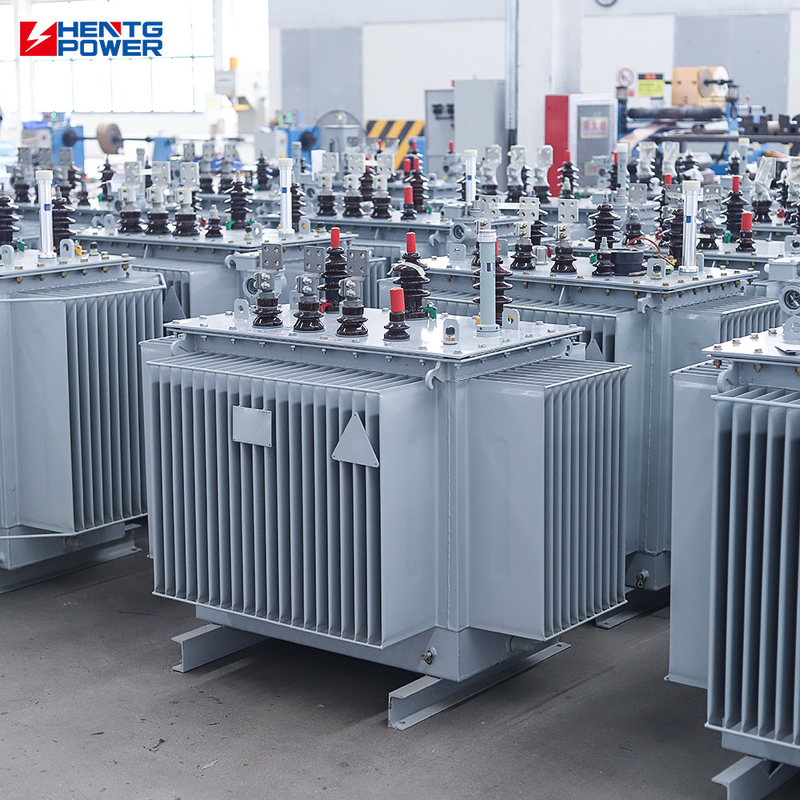

Three Phase Isolation Transformer 80 Kva 10kv 1000Kva Transformer Outdoor Oil Immersed Distribution Transformer
Three Phase Isolation Transformer 80 Kva 10kv 1000Kva Transformer Outdoor Oil Immersed Distribution Transformer Product Specifications Attribute Value Type Distribution transformer, Oil-filled Transformer Material Copper Frequency 50Hz, 60Hz Winding Material Copper Application High Frequency Phase Three Coil Structure Circular coil Coil Number Dual-winding coil Input Voltage 10kV, 6kV, 6.3KV Output Voltage 0.4KV Vector Group Yyn0/Dyn11 Standard IEC60076 Transformer type S13
outdoor oil immersed distribution transformer
,outdoor oil immersed power transformer
,50hz oil immersed power transformer
| Attribute | Value |
|---|---|
| Type | Distribution transformer, Oil-filled Transformer |
| Material | Copper |
| Frequency | 50Hz, 60Hz |
| Winding Material | Copper |
| Application | High Frequency |
| Phase | Three |
| Coil Structure | Circular coil |
| Coil Number | Dual-winding coil |
| Input Voltage | 10kV, 6kV, 6.3KV |
| Output Voltage | 0.4KV |
| Vector Group | Yyn0/Dyn11 |
| Standard | IEC60076 |
| Transformer type | S13 Oil-immersed Transformer |
| Warranty | 3 Years |
| Capacity | 80kva~1000KVA |
| Rated Voltage | 6-35kV |
| Cooling | ONAN/ONAF or Customized |
| Temperature Rise | ≤65℃ |
| Insulation | Mineral Oil |
Our oil-immersed distribution transformers are widely used in power transmission, industrial and commercial electricity, renewable energy systems, and urban infrastructure. With a capacity range from 30kVA to 2500kVA and voltage levels up to 35kV, these units feature low loss, high reliability, and stable operation, fully compliant with IEC, ANSI, and other international standards.
- Improved moisture resistance and extended service life
- Customization available: Voltage, connection method, and enclosure options
- International certifications: CE, ISO9001, ISO14001 compliant
The Type S13 oil-immersed distribution transformer is widely used in power distribution networks. Compared to S9 or S11, the S13 offers several improvements:
- Flexible installation for various project requirements
- Environmentally friendly - supports carbon neutrality goals
- International certifications ensure smooth overseas compliance
| Rated capacity (KVA) | Vector Group | Voltage Combination | HV | Tapping range | LV | No-load loss | Load loss | No-load current | Impedance | |
|---|---|---|---|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | ±5% ±2X2.5% | 0.4 | 80 | 630 | 600 | 1.5 | 4.0 | |
| 50 | 100 | 910 | 870 | 1.3 |
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms. We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment.
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report.
We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service.
- Professional 30+ senior engineers offer 24 hours online service and response within 30 min
- 100000m² factory, 250 workers, 30+ engineers
- 4 production line, 10000+ sets annual production capacity
- 100% OQC testing with 25 detection contents
- 15 years power transformer designing and production experience
- Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standard
- Cross-industry power transformer solution
- Global on-site technical support
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Accept OEM, business payment are negotiated.
-
