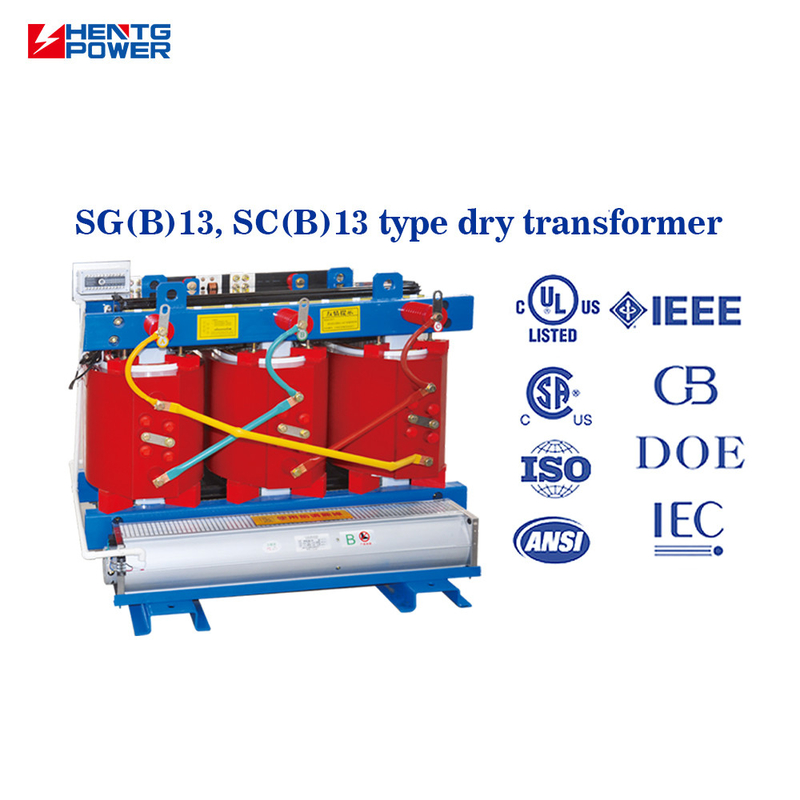

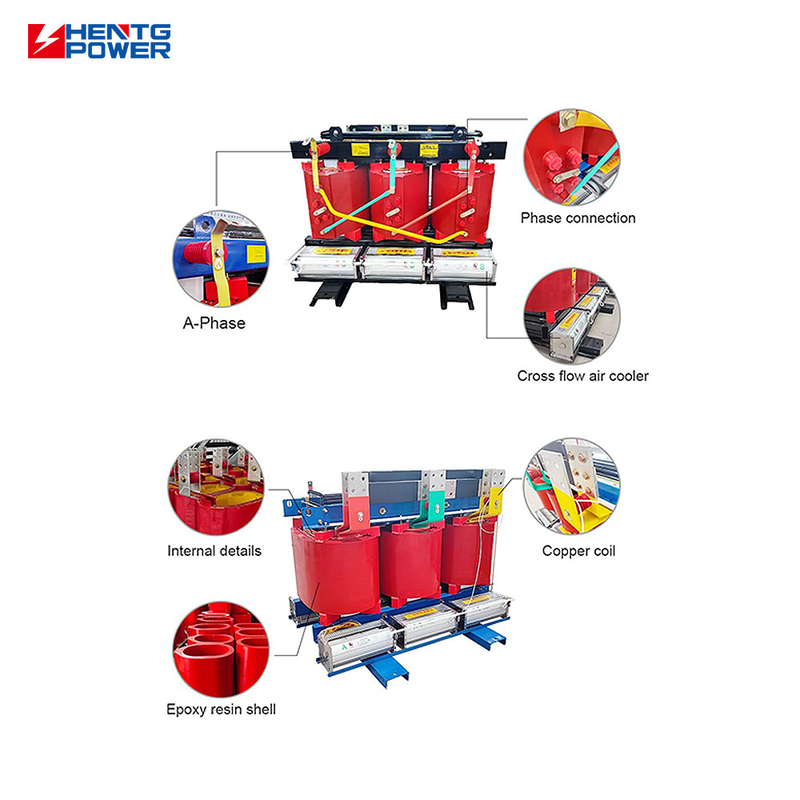

SCB11 Series 250kVA Dry Type Isolation Transformer 3Phase With Circular Coil Structure
SCB11 Series 250kVA Dry Type Isolation Transformer 3Phase With Circular Coil Structure Product Specifications Attribute Value Type Power transformer, distribution transformer, Dry Type Transformer Frequency 50Hz, 60Hz Shape ROUND Winding Material Aluminum Application Current Phase Three Coil Structure Circular coil Coil Number Multi-winding coil Input Voltage 10kV Output Voltage 400V Rated Capacity 250kVA The SCB11 Series 250kVA Dry-Type Isolation Transformer provides a
250kVA Dry Type Isolation Transformer
,Dry Type Isolation Transformer 3Phase
,Circular Coil Structure Isolation Transformer
| Attribute | Value |
|---|---|
| Type | Power transformer, distribution transformer, Dry Type Transformer |
| Frequency | 50Hz, 60Hz |
| Shape | ROUND |
| Winding Material | Aluminum |
| Application | Current |
| Phase | Three |
| Coil Structure | Circular coil |
| Coil Number | Multi-winding coil |
| Input Voltage | 10kV |
| Output Voltage | 400V |
| Rated Capacity | 250kVA |
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | 6.0 | ||
| 200 | 445 | 2270 | 1.1 | |||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 |
- Electrical Isolation: Complete isolation between primary and secondary circuits to prevent electrical noise, surges, and harmonics.
- Epoxy Resin Insulation: Superior moisture resistance, high dielectric strength, and durability for long-term operation.
- Low Noise Operation: Noise level ≤ 50 dB, suitable for sensitive environments such as offices, hospitals, and labs.
- Oil-Free Design: No oil means safer operation with no risk of oil leaks or environmental contamination.
- High Efficiency: Low no-load and load losses, improving energy conservation and reducing operational costs.
- Protects Sensitive Equipment: Filters electrical noise, voltage surges, and harmonic distortion, ensuring stable power for sensitive electronics and machinery.
- Minimal Maintenance: Dry-type construction eliminates the need for oil checks, replacements, and frequent maintenance, lowering long-term costs.
- Safe Indoor Use: The oil-free, flame-retardant design makes it suitable for indoor installations in commercial and industrial environments.
- Improved Power Quality: Provides a clean, stable power supply that prevents system disruptions, enhancing the reliability and performance of connected devices.
- Reduced Operational Costs: Lower energy consumption due to high efficiency and reduced maintenance requirements, resulting in cost savings over time.
- High Short-Circuit Strength: Withstands thermal and dynamic stresses during faults, ensuring protection and durability in industrial settings.
- Flexible Voltage Configuration: Can be customized to meet specific voltage requirements, making it adaptable to various applications.
- Meets International Standards: Fully compliant with IEC, CE, and GB standards, ensuring top-notch safety and performance.
- Long Service Life: Designed to last over 20 years, providing reliable performance and low operational costs over its lifetime.
- Compact Design: The compact form factor saves space, making it suitable for installations with limited space while maintaining robust performance.
- Industrial Equipment: Power distribution for manufacturing and automation systems.
- Data Centers: Ensures clean and stable power supply for servers and network equipment.
- Medical Equipment: Provides isolated and stable power to sensitive medical devices.
- Communication Systems: Ideal for communication base stations and control systems.
- Commercial Buildings: Used for electrical distribution in offices and high-rise buildings.
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Accept OEM, business payment are negotiated.
-
