Place of Origin:
Hunan, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
S13
| Attribute | Value |
|---|---|
| Type | power transformer, distribution transformer, Oil-filled Transformer |
| Frequency | 50Hz, 60Hz |
| Winding Material | Copper |
| Application | Power |
| Phase | Three |
| Coil Structure | Layered Winding |
| Coil Number | Multi-winding coil |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV |
| Output Voltage | 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V |
| Cooling Method | ONAN ONAF OFAF |
| Vector Group | Dyn11/Yyn0 |
| Feature | Long Service Life |

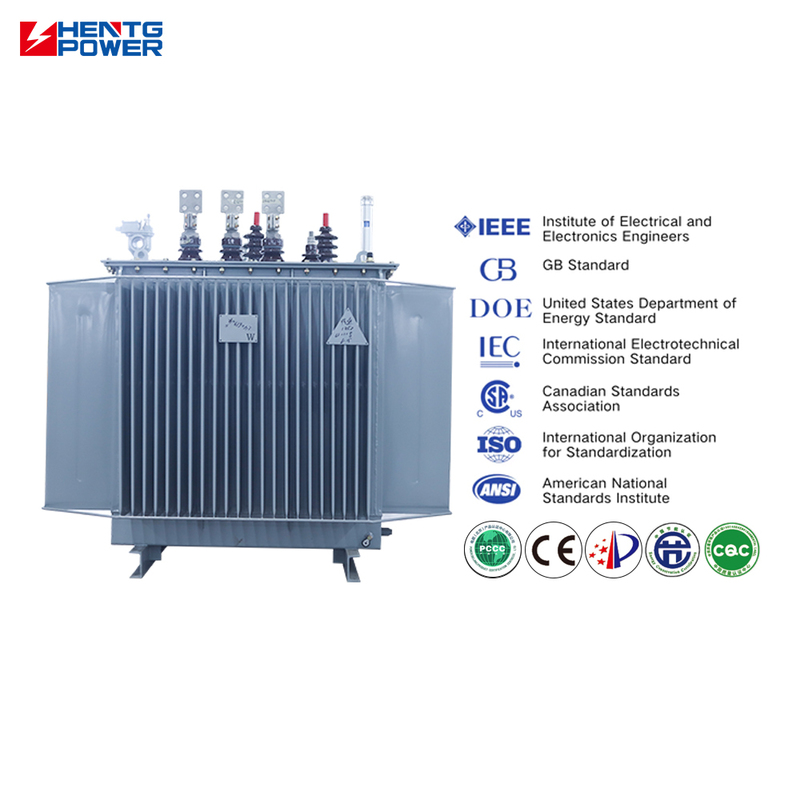

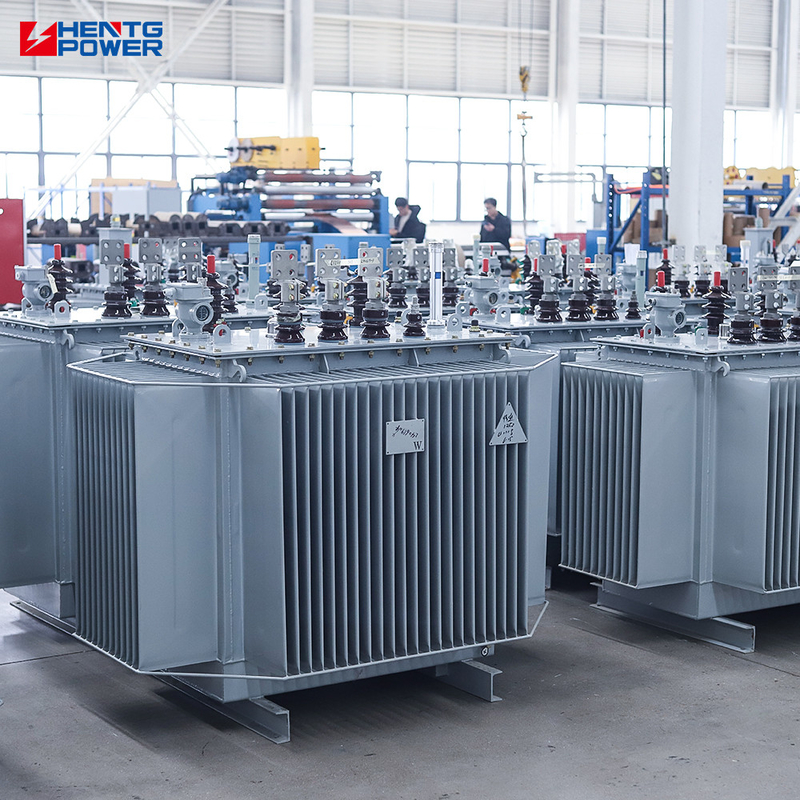

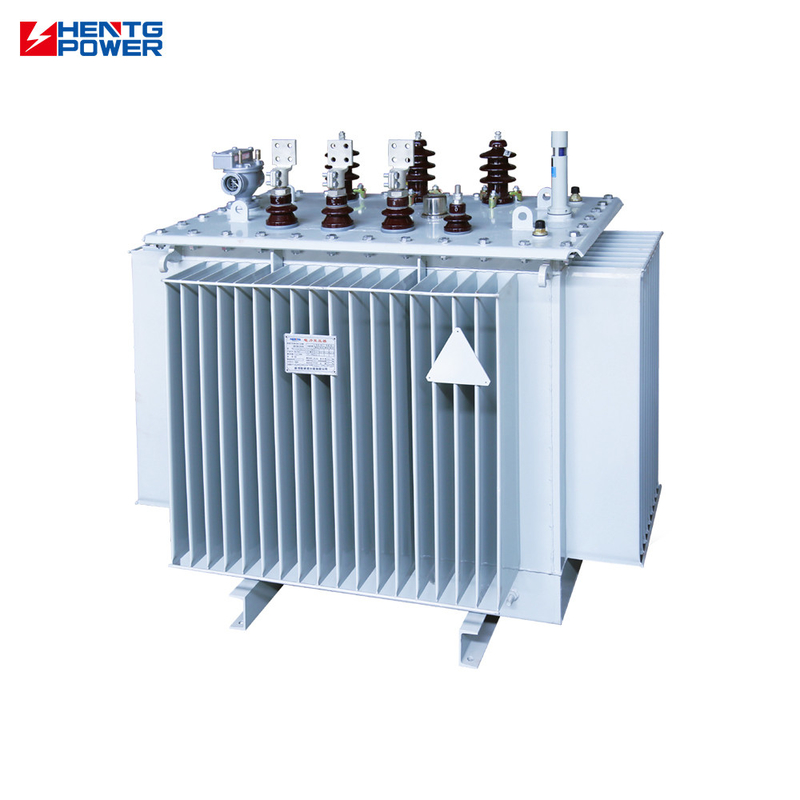

Oil Immersed Transformers 2500 Kva 2000kva 1250 Kva 1600 Kva Three Phase Copper Power Electrical Transformer
Oil-immersed transformers (30KVA-2500KVA) with low loss, high efficiency, and customizable design. Ideal for industrial, grid, and renewable projects. IEC/ANSI compliant.
Compliant with IEC, ANSI, and BS standards, with CE, ISO9001, and type test certificates available.
100% factory-tested for electrical performance and vacuum-dried for insulation reliability.
Ensures safe and compliant procurement for global projects with guaranteed performance.
Our oil-immersed distribution transformers range from 30kVA to 2500kVA, with voltage levels up to 35kV. They are widely used in power utilities, renewable energy, industrial facilities, railway systems, and urban infrastructure. Designed to IEC and ANSI standards, our transformers offer high efficiency, low losses, and long service life, suitable for both indoor and outdoor environments.
Compared with the current national standard JB/T10088-2004, the noise level decreased by 20% on average, and the product performance level reached the domestic advanced level.
Ideal distribution equipment for urban and rural distribution network centers.
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 ±5% ±2X2.5% 0.4 | 80 | 630 | 1.5 | 4.0 |
| 50 | 100 | 910 | 1.3 | |||
| 63 | 110 | 1090 | 1.2 | |||
| 80 | 130 | 1310 | 1.2 | |||
| 100 | 150 | 1580 | 1.1 | |||
| 125 | 170 | 1890 | 1.1 | |||
| 160 | 200 | 2310 | 1.0 | |||
| 200 | 240 | 2730 | 1.0 | |||
| 250 | 290 | 3200 | 0.9 | |||
| 315 | 340 | 3830 | 0.9 | |||
| 400 | 410 | 4520 | 0.8 | |||
| 500 | 480 | 5410 | 0.8 | |||
| 630 | 570 | 6200 | 0.6 | 4.5 | ||
| 800 | 700 | 7500 | 0.6 | |||
| 1000 | 830 | 10300 | 0.6 | |||
| 1250 | 970 | 12000 | 0.5 | |||
| 1600 | 1170 | 14500 | 0.5 | |||
| 2000 | 1360 | 18300 | 0.4 | 5.0 | ||
| 2500 | 1600 | 21200 | 0.4 |
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms.
We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our business now.
