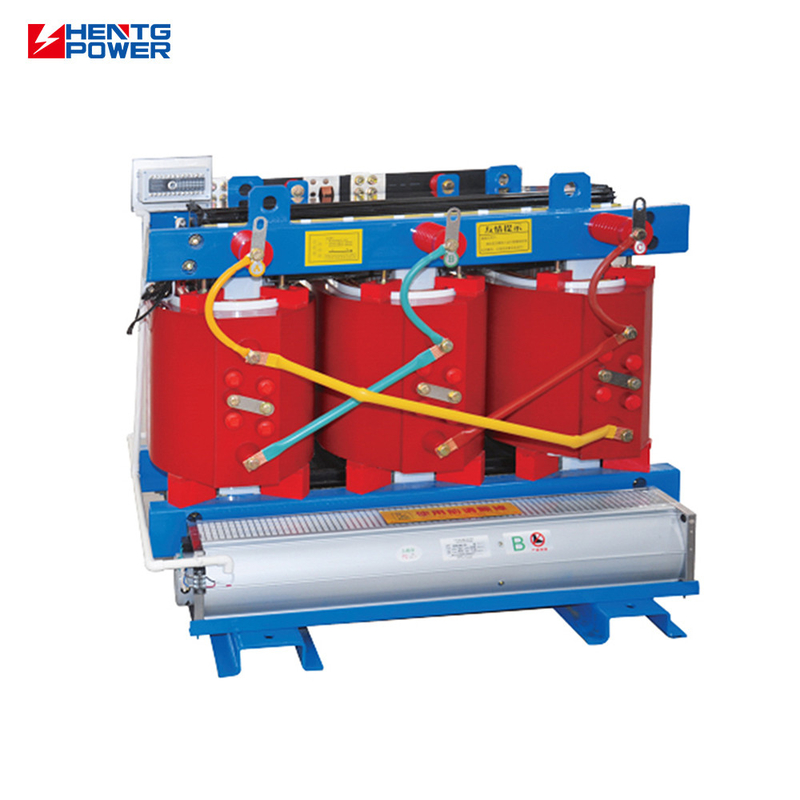

1600kVA Cast Resin Distribution Transformer Dry Type High Efficiency Flame Retardant
1600kVA Cast Resin Distribution Transformer Dry Type High Efficiency Flame Retardant Product Specifications Attribute Value Type distribution transformer Material Copper, Copper Winding Frequency 50Hz, 60Hz Phase Three Input Voltage 10kV Rated Capacity 1600KVA Cooling Method ANAF Insulation Class Class F Standard IEC60076 Product Overview The SCB13 1600kVA dry-type transformer is a robust, eco-friendly solution designed for demanding commercial and industrial applications.
1600kVA Cast Resin Distribution Transformer
,Cast Resin Distribution Transformer Dry Type
,Flame Retardant Cast Resin Distribution Transformer
| Attribute | Value |
|---|---|
| Type | distribution transformer |
| Material | Copper, Copper Winding |
| Frequency | 50Hz, 60Hz |
| Phase | Three |
| Input Voltage | 10kV |
| Rated Capacity | 1600KVA |
| Cooling Method | ANAF |
| Insulation Class | Class F |
| Standard | IEC60076 |

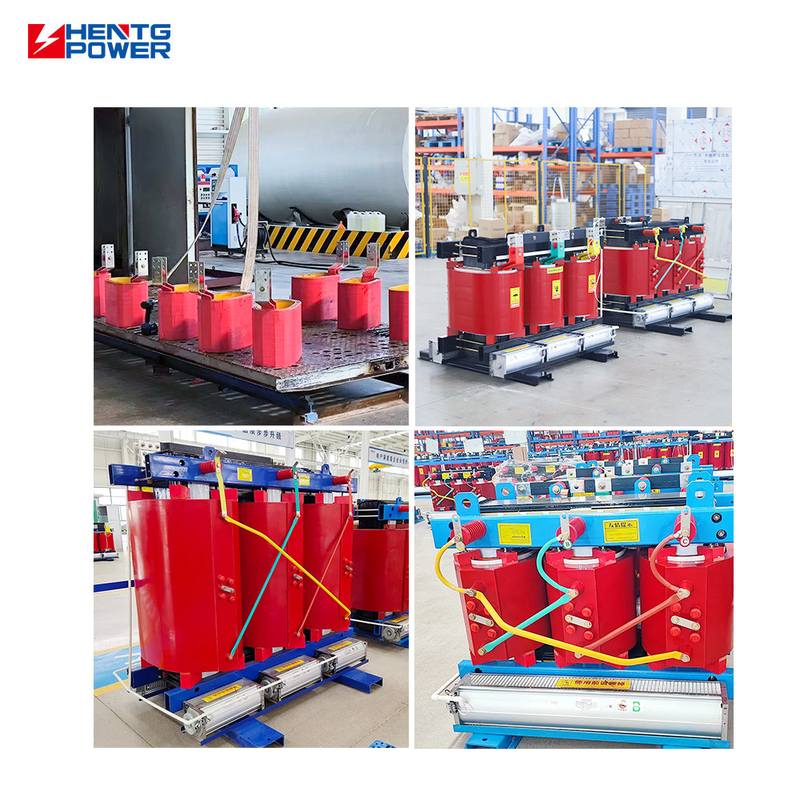

The SCB13 1600kVA dry-type transformer is a robust, eco-friendly solution designed for demanding commercial and industrial applications. With advanced cast-resin technology, it offers outstanding mechanical strength and electrical insulation, ensuring long-term performance. Suitable for indoor use, SCB13 series is highly effective in environments such as power plants, large-scale factories, and commercial buildings where reliable, high-capacity power distribution is essential.
Technical Specifications
| Rated Capacity (KVA) | Vector Group | Voltage Combination | No-load Loss | Load Loss | No-load Current | Impedance |
|---|---|---|---|---|---|---|
| 1600 | Yyn0 / Dyn11 | 10/6.3/6 | 1760 | 10500 | 0.85 | 4.0 |
- Advanced Cast-Resin Technology: High mechanical strength and superior electrical insulation.
- Energy Efficiency: Lower no-load losses and reduced load losses compared to traditional transformers.
- Fire-Safe Construction: Flame-retardant (F1 Class) material to prevent fire hazards in case of fault.
- Environmentally Friendly: No oil, no risk of leakage or environmental pollution.
- Robust and Maintenance-Free: Resistant to vibrations, dust, and humidity, requiring minimal maintenance.
- Reduced Operating Costs: Low loss and minimal maintenance translate into significant cost savings over time.
- Eco-Friendly Power Solution: No risk of harmful emissions, making it safe for the environment.
- Safe & Reliable: Prevents fire hazards and ensures stable operation in critical applications.
- Compact & Versatile: Can be used in tight spaces while providing optimal performance for high-demand areas.
- Large-Scale Industrial Plants
- Commercial & Residential Complexes
- Power Stations & Substations
- Renewable Energy Systems
- Data Centers & IT Infrastructure
HENTG POWER is a professional designer, manufacturer and installer of power system solutions around the World, founded in 2011. Our 100,000 square meter facility specializes in reliable, high-performance solutions for global power systems.
We always provide a pre-production sample before mass production and conduct final inspection before shipment. We provide QC & test reports and accept Factory Acceptance Tests (FAT). Our factory manufactures oil type and dry type distribution transformers up to 500KV 480MVA power transformers, GIS, switchgear, and substations, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standards. We offer a 2+ year guarantee service.
We have professional and independent drawing and technical teams that can confirm all drawing contents with you within 7 days. Our technical team includes 30+ senior engineers offering 24/7 online service with responses within 30 minutes.
We accept OEM orders and negotiate business payment terms.
-
