Place of Origin:
Hunan, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
S20
Attribute | Value |
---|---|
Frequency | 50Hz, 60Hz |
Phase | Three |
Coil Number | Two Windings, Multi Winding, Three Windings |
Application | Power Transformer |
Coil Structure | Round coil, Shell-Type Coil, Layer coil, Fully sealed construction, Disc Coil |
Output Voltage | 10kV, 415V, 220V, 110V, 380V, 400V, 440V, 480V |
Input Voltage | 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV |
Type | Oil-Immersed Transformer, Voltage Regulator Transformer |
Customization | Accept |
Winding Materials | Copper/Aluminum |
Vector Group | Yyn0/Dyn11 |

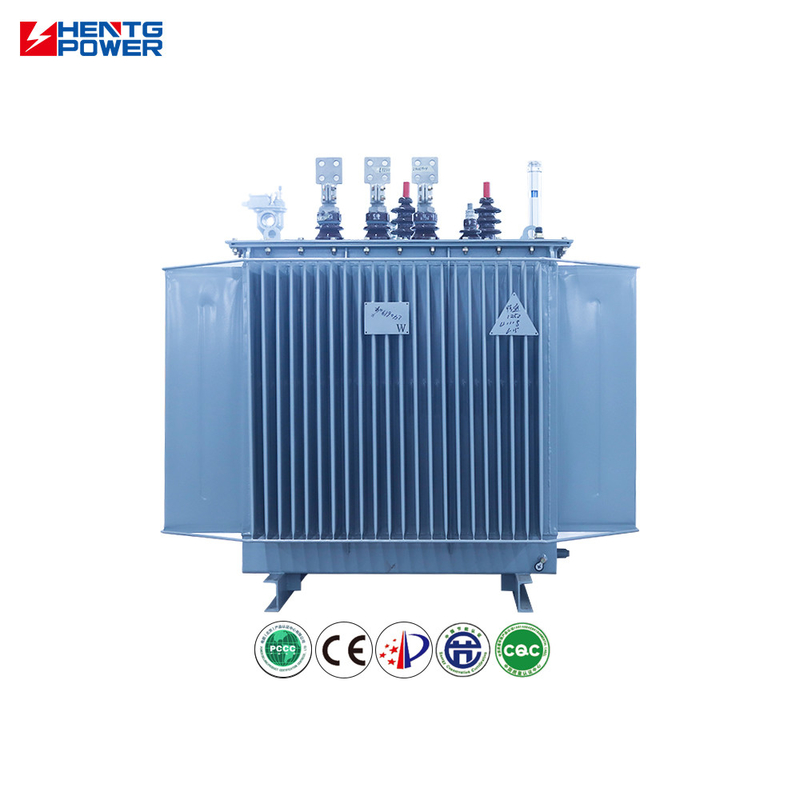

Product Name | Three Phase Oil Immersed Transformer |
Color | Gray |
Voltage | 10 or 35 kV |
Use | Power |
Temperature Rise | 65℃ |
Rated Capacity | High |
Package | Wooden Case |
Impedance | 4.75% or Customized |
Insulation Class | Class A |
Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | Impedance |
---|---|---|---|---|---|
30 | Yyn0 / Dyn11 | 10 6.3 6 | 70 | 505 | 4.0 |
50 | 90 | 730 | |||
63 | 100 | 870 | |||
80 | 115 | 1050 | |||
100 | 135 | 1265 | |||
125 | 150 | 1510 | |||
160 | 180 | 1850 | |||
200 | 215 | 2185 | |||
250 | 260 | 2560 | |||
315 | 305 | 3065 | |||
400 | 370 | 3615 | |||
500 | 430 | 4330 | 4.5 | ||
630 | 510 | 4960 | |||
800 | 630 | 6000 | |||
1000 | 745 | 8240 | |||
1250 | 870 | 9600 |

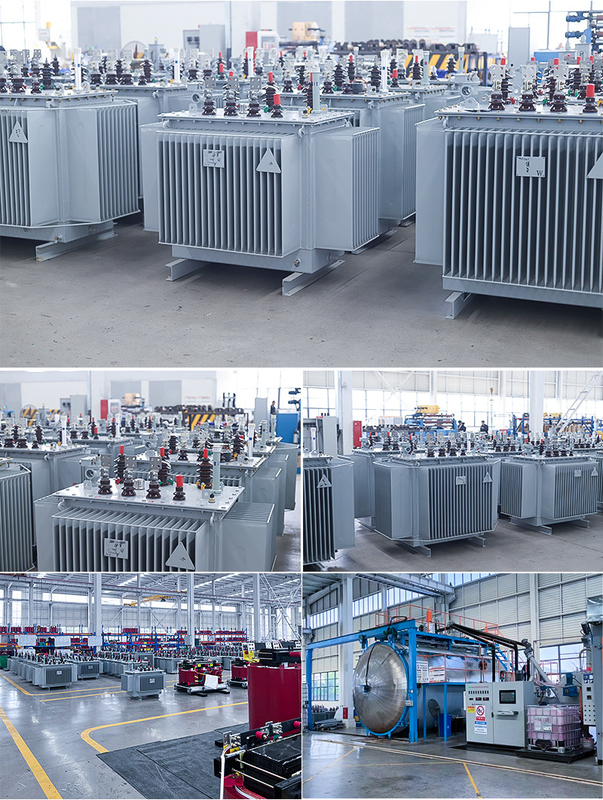

HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.

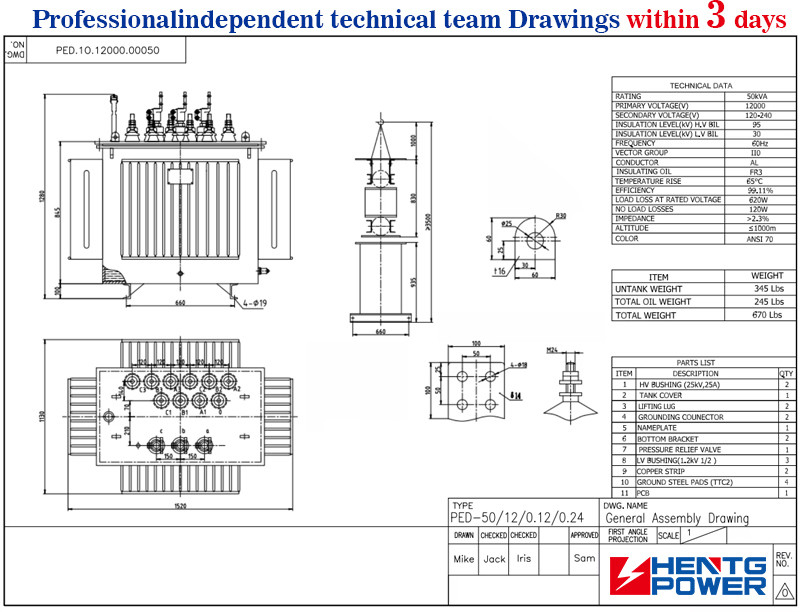

We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Accept OEM, business payment are negotiated.
