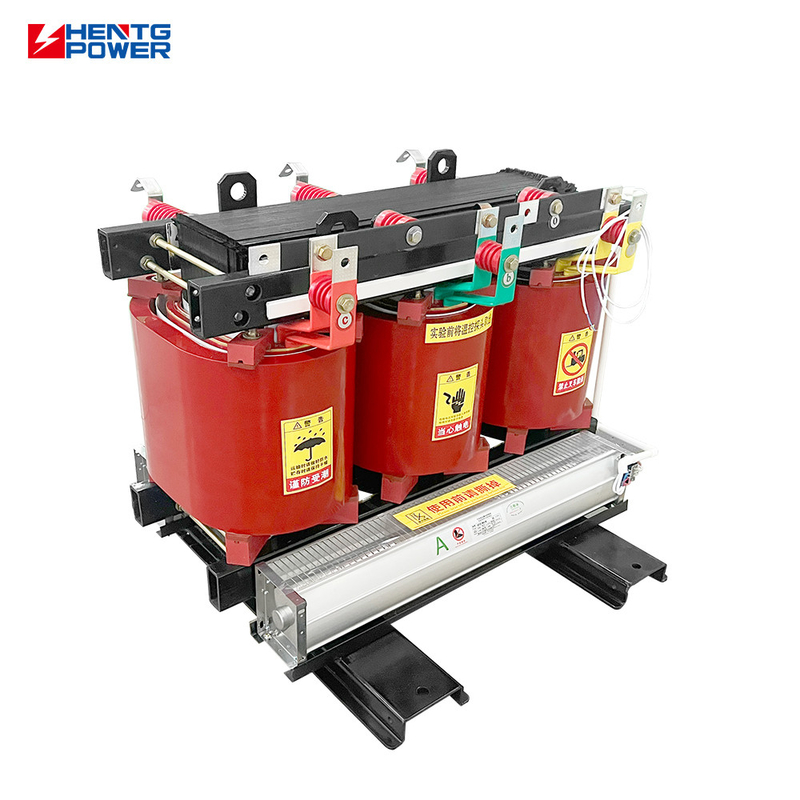

Triple Winding Coil 3 Phase Dry Type Power Transformer 2500KVA Cast Resin Transformer

Name: Triple Winding Coil 3 Phase Dry Type Power Transformer 2500KVA Cast Resin Transformer
Brand: Hunan Hentg Power Electric Technology Co., Ltd.
SKU: SC(B)13
Availability: InStock

Product Summary

Triple Winding Coil 3 Phase Dry Type Power Transformer 2500KVA Cast Resin Transformer Product Specifications Type distribution transformer, Power Isolation Transformer Frequency 50Hz, 60Hz Winding Material Aluminum Application Power Phase Three Coil Structure Layered Winding Coil Number Triple-winding coil Input Voltage 10kV Output Voltage 400V, 380V Cooling Method ANAF Vector Group Dyn11/Yyn0 Transformer type S13-MRL Oil-immersed Transformer MOQ 1PCS Technical Specifications

Key Attributes

Brand Name: HENTG Power

Model Number: SC(B)13

Place of Origin: China

Certification: CE

MOQ: 1

Product Custom Attributes

Highlight

Triple Winding Coil Power Transformer

Dry Type Power Transformer 2500KVA

Triple Winding Coil Cast Resin Transformer

Type:

Distribution Transformer, Power Isolation Transformer

Frequency:

50Hz, 60Hz

Winding Material:

Aluminum

Application:

Power

Phase:

Three

Coil Structure:

Layered Winding

Coil Number:

Triple-winding Coil

Input Voltage:

10kV

Output Voltage:

400V,380V

Product Name:

Three Phase Transformer

Cooling Method:

ANAF

Application:

Power Distribution System

Material:

Aluminum Winding

Vector Group:

Dyn11/Yyn0

Transformer Type:

S13-MRL Oil-immersed Transformer

Usage:

Power Electronic

MOQ:

1PCS

Product Description

Triple Winding Coil 3 Phase Dry Type Power Transformer 2500KVA Cast Resin Transformer

Product Specifications

Type	distribution transformer, Power Isolation Transformer
Frequency	50Hz, 60Hz
Winding Material	Aluminum
Application	Power
Phase	Three
Coil Structure	Layered Winding
Coil Number	Triple-winding coil
Input Voltage	10kV
Output Voltage	400V, 380V
Cooling Method	ANAF
Vector Group	Dyn11/Yyn0
Transformer type	S13-MRL Oil-immersed Transformer
MOQ	1PCS

Technical Specifications

Rated capacity (KVA)	Vector Group	Voltage Combination	HV	Tapping range	LV	No-load loss	Load loss	No-load current
30	Yyn0 / Dyn11	10 6.3 6	±5% ±2X2.5% (+3/-1)X2.5%	0.4	135	640	2	4.0
50					195	900	2
80					265	1240	1.5
100					290	1410	1.5
125					340	1660	1.3
160					385	1910	1.3
200					445	2270	1.1
250					515	2480	1.1
315					635	3120	1	6.0
400					705	3590	1
500					835	4390	1
630					965	5290	0.85
800					1090	6260	0.85
1000					1270	7310	0.85
1250					1500	8720	0.85
1600					1760	10500	0.85
2000					2190	13000	0.7
2500					2590	15400	0.7

The SCB13 Series Transformer 2500kVA is a high-capacity oil-immersed transformer designed for large-scale power distribution. With advanced design and durable materials, it provides stable, reliable, and efficient power supply for heavy-duty industrial and commercial applications. Whether used in power plants, substations, or large industrial facilities, the SCB13 series delivers exceptional performance, long-lasting reliability, and cost-effective energy management.

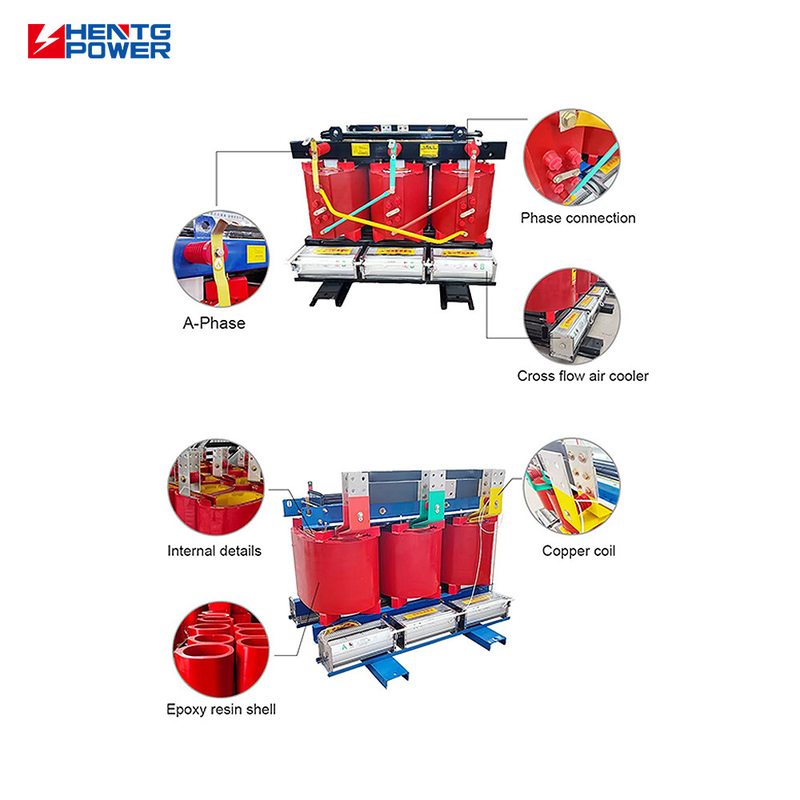

Cast resin dry type transformer is a type of SC(B) dry transformer with epoxy resin, which is widely used in many fields. Its winding surface consists of high-quality protective material that forms the cover. Even in harsh environments such as dust and humidity, it will not affect the cast insulating dry-type transformer. The process characteristic of resin casting is that it must rely on molds and use special casting equipment to cast the coil in a vacuum state. The epoxy resin used is an insulating glue, so it is also called an epoxy cast resin dry type transformer.

Key Features

Rated Power: 2500kVA, suitable for large-scale power distribution needs
Oil-immersed design: Provides superior cooling efficiency and enhanced insulation performance
Advanced Technology: High-efficiency core and windings to minimize energy losses
Cooling Method: Forced oil circulation with natural air cooling, ideal for demanding environments
Compact and Robust Construction: Engineered for heavy-duty applications with a durable, high-quality design
High-Voltage Protection: Equipped with built-in overvoltage and overload protection to ensure safety

Product Benefits

Efficient Power Management: The high-efficiency design reduces power losses, saving on long-term energy costs
Improved Reliability: Built-in safety features ensure a constant and reliable power supply
Eco-Friendly: Oil-immersed design uses less maintenance and has a lower environmental impact
Wide Range of Applications: Ideal for heavy-duty industrial plants, electrical substations, and large-scale commercial buildings
Cost-Effective: Offers long-term savings with reduced maintenance and operational costs

Technical Advantages

Long-term Durability: Offers a long operational life even in harsh conditions
Improved Cooling Efficiency: Oil cooling system ensures optimal operating temperatures
Simplicity in Maintenance: Designed for easy maintenance with accessible oil tank and filtration systems
Safety Assurance: Meets international safety standards for secure operation
International Certifications: Fully compliant with IEC, ISO 9001, and CE standards

Frequently Asked Questions

Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.

Why choose us?

We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.

What services can we provide?

Accept OEM, business payment are negotiated.
