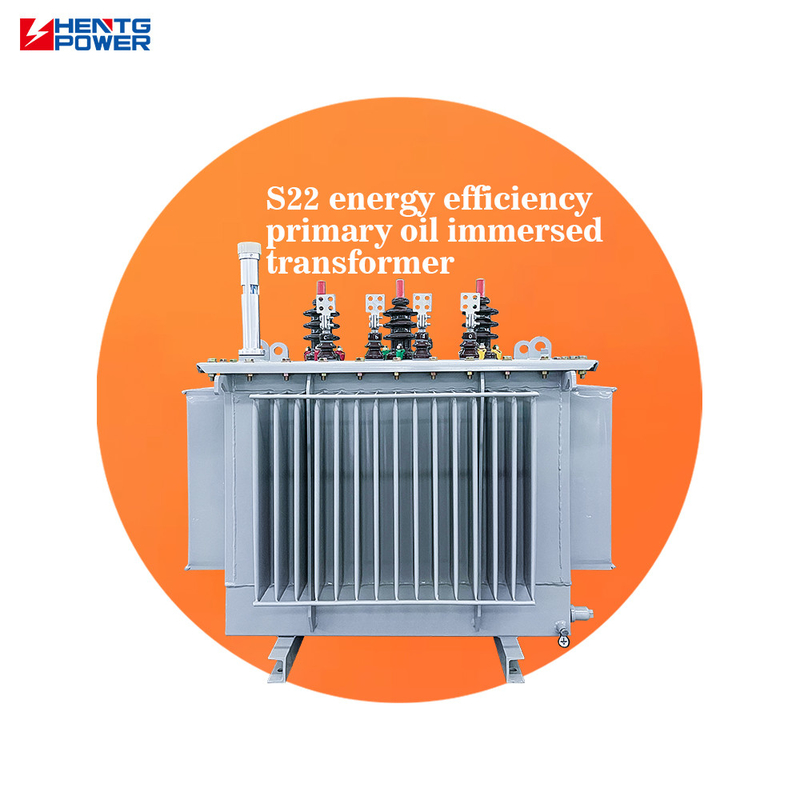

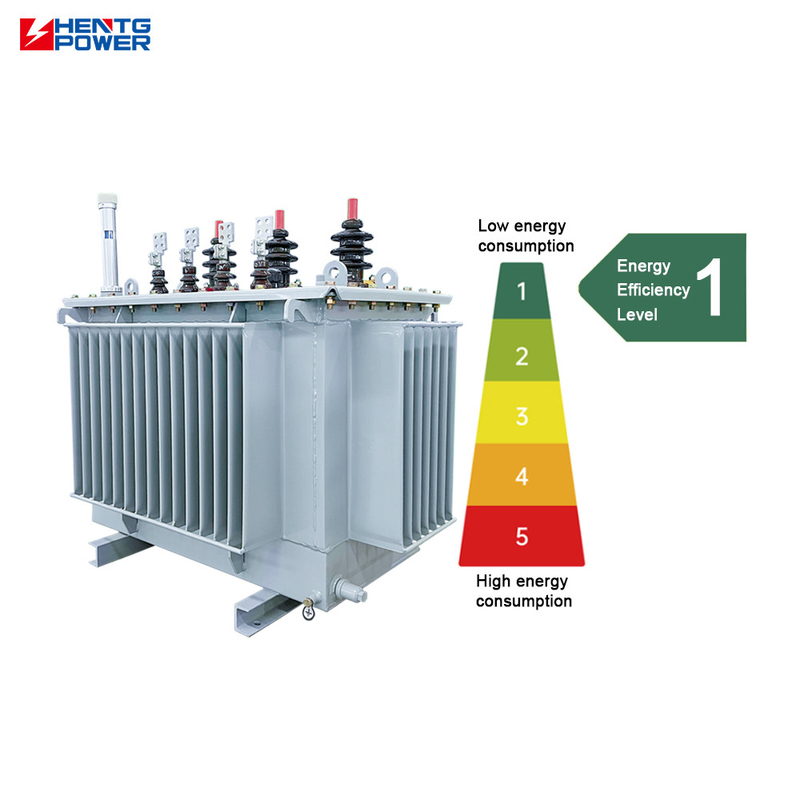

200 Kva Electric Voltage Step Down Power Transformer Three Phase Oil Filled Type
200 KVA Electric Voltage Step Down Power Transformer (Three Phase Oil Filled Type) Product Specifications Attribute Value Type Distribution transformer, Oil-filled Transformer Material Copper, silicon steel sheet, Steel Frequency 50Hz Winding Material Copper Phase Three Coil Structure Circular coil Input Voltage 6kV, 10kV Output Voltage 0.4kV Size 200*100*150cm Cooling Type AN/AF Standard IEC60076/GOST/IEEE/ANSI Vector Group Yyn0/Dyn11 Rated Capacity 100 kVA Efficiency 98%
Electric Voltage Step Down Power Transformer
,Oil Filled Type Step Down Transforme
| Attribute | Value |
|---|---|
| Type | Distribution transformer, Oil-filled Transformer |
| Material | Copper, silicon steel sheet, Steel |
| Frequency | 50Hz |
| Winding Material | Copper |
| Phase | Three |
| Coil Structure | Circular coil |
| Input Voltage | 6kV, 10kV |
| Output Voltage | 0.4kV |
| Size | 200*100*150cm |
| Cooling Type | AN/AF |
| Standard | IEC60076/GOST/IEEE/ANSI |
| Vector Group | Yyn0/Dyn11 |
| Rated Capacity | 100 kVA |
| Efficiency | 98% |
| Insulation | Mineral Oil |
| Rated Capacity (KVA) | Vector Group | Voltage Combination | No-load Loss | Load Loss | Impedance |
|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10/6.3/6 kV ±5% ±2X2.5% → 0.4 kV | 65 | 455/430 | 4.0 |
| 50 | 80 | 655/625 | |||
| 63 | 90 | 785/745 | |||
| 80 | 105 | 945/900 | |||
| 100 | 120 | 1140/1080 | |||
| 125 | 135 | 1360/1295 | |||
| 160 | 160 | 1665/1585 | |||
| 200 | 190 | 1970/1870 | 4.5 | ||
| 250 | 230 | 2300/2195 | |||
| 315 | 270 | 2760/2630 | |||
| 400 | 330 | 3250/3095 | |||
| 500 | 385 | 3900/3710 | |||
| 630 | 460 | 4460/4460 | |||
| 800 | 560 | 5400/5400 | |||
| 1000 | 665 | 7415/7415 | |||
| 1250 | 780 | 8640/8640 |
- Professional 30+ senior engineers offer 24 hours online service with 30-minute response time

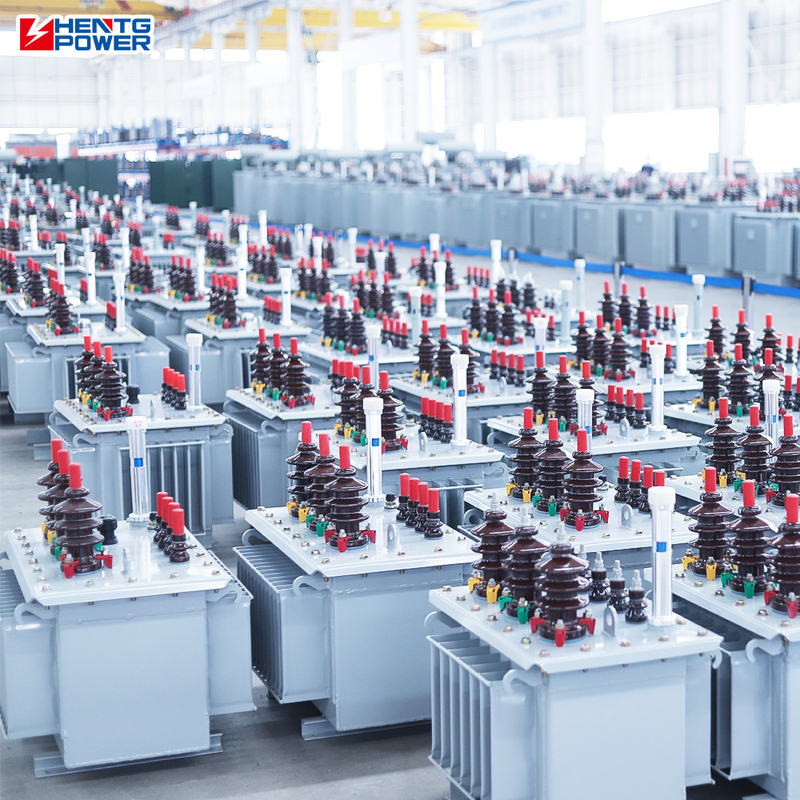

- 100,000m² factory with 250+ workers, 30+ senior engineers and 8 production lines
- 20,000+ sets annual production capacity
- 100% OQC testing with 8 main detection contents
- 15+ years power transformer designing and manufacturing experience
- Complies with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards
- Cross-industry power transformer solutions
- Global on-site technical support
-
