Name: 1600kVA Dry Type Electrical Transformers Low Loss Cast Resin Distribution Transformer 60Hz
Brand: Hunan Hentg Power Electric Technology Co., Ltd.
SKU: SC(B)13
Price: 88534 USD
Availability: InStock

Home > products > Dry Type Transformer >

1600kVA Dry Type Electrical Transformers Low Loss Cast Resin Distribution Transformer 60Hz

1600kVA Dry Type Electrical Transformers

Cast Resin Distribution Transformer 60Hz

Place of Origin:

Jiangsu, China

Brand Name:

HENTG Power

Certification:

Model Number:

SC(B)13

Chat Now

Request A Quote

Product Details

Frequency:

60Hz

Phase:

Three

Coil Number:

Three Windings, Multi Winding, Two Windings

Application:

Distribution System

Coil Structure:

Layer Coil, Disc Coil, Round Coil, Shell-Type Coil

Output Voltage:

415V, 110V, 220V, 380V, 400V , 440V, 480V

Input Voltage:

11kV, 10.5kV, 12.47kV, 10kV, 35kV, 6.6kV, 6.3kV, 6kV

Type:

Dry Type Transformer, Dry-type

Vector Group:

Dyn11 / Yyn0

Capacity/KVA:

315KVA, 400KVA, 630KVA

Application:

Indoor With High-performance Requirements

Warranty:

3 Years

Tapping Range:

2*2.5%/ 5%

Customized:

Logo

Cooling Method:

With Cooling Fans

Advantages:

Strong Overload Capacity, And Maintenance Free

Phase Number:

Three Phase

Insulation Class:

Highest Machinery Speed:

140m/min

Voltage Class:

6-35kv

Impedance:

Demension:

405*800*895 Mm

Material:

Aluminum

Product Type:

Transformer

Cooling:

AN Or ANAF

Low Voltage:

10 - 0.4/0.23kV

Temperature Rise:

150°C

Highlight:

1600kVA Dry Type Electrical Transformers

Cast Resin Distribution Transformer 60Hz

Payment & Shipping Terms

Minimum Order Quantity

2 sets

Price

CN¥88534/pieces

400Volt 200kVA 3 Phase Dry Type Transformer Low Loss Indoor Power Distribution Solution

Chat Now

Video

SCB11 Series 250kVA Dry Type Isolation Transformer 3Phase With Circular Coil Structure

Chat Now

Video

3 Phase Dry Type Transformer Step Up Step Down Transformer 1600Kva 2000Kva 2500Kva

Chat Now

Video

1600kVA Dry Type Electrical Transformers Low Loss Cast Resin Distribution Transformer 60Hz

Chat Now

+86 15074989773

info@hentgpower.com

Chat Now

Product Description

1600kVA Dry Type Electrical Transformers Low Loss Cast Resin Distribution Transformer 60Hz

Product Specifications

Attribute	Value
Frequency	60Hz
Phase	Three
Coil Number	Three Windings, Multi Winding, Two Windings
Application	Distribution system
Coil Structure	Layer coil, Disc Coil, round coil, Shell-Type Coil
Output Voltage	415V, 110V, 220V, 380V, 400V, 440V, 480V
Input Voltage	11kV, 10.5kV, 12.47kV, 10kV, 35kV, 6.6kV, 6.3kV, 6kV
Type	Dry Type Transformer, Dry-type
Vector Group	Dyn11 / Yyn0
Capacity/KVA	315KVA, 400KVA, 630KVA
Warranty	3 years
Tapping Range	2*2.5%/5%
Cooling Method	With cooling fans
Insulation Class	F
Voltage Class	6-35kv
Impedance	4%
Dimension	405800895 mm
Material	Aluminum
Cooling	AN or ANAF
Temperature Rise	150°C

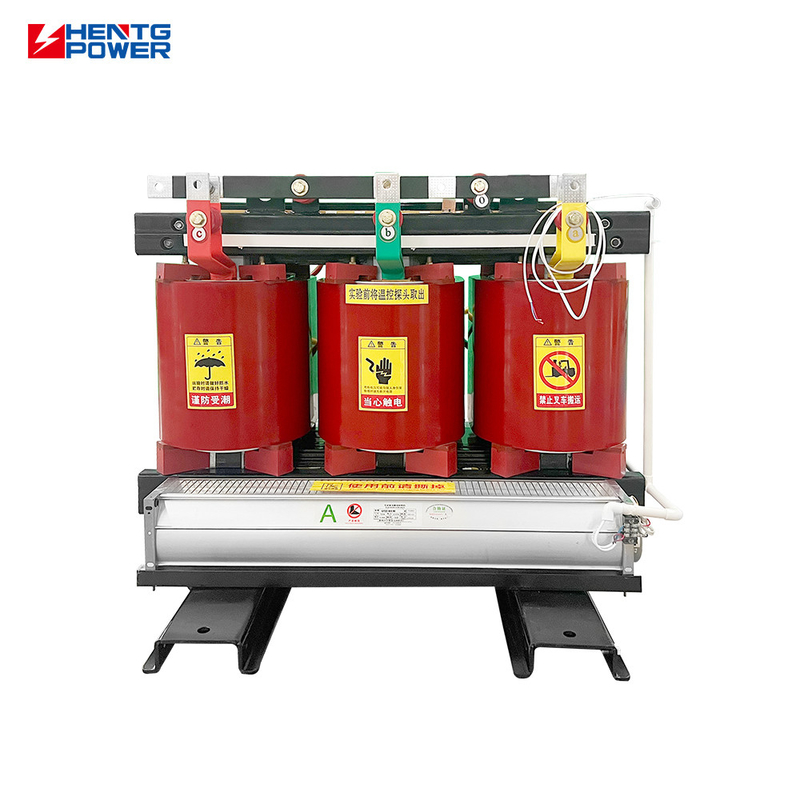

SCB13 Series 1600kVA Dry-Type Transformer | High-Efficiency, Safe, and Low-Loss Power Distribution

The SCB13 Series 1600kVA Dry-Type Transformer is engineered for high-demand power distribution applications in industrial, commercial, and utility settings. With its innovative cast resin insulation and efficient core design, this transformer provides exceptional performance in both energy savings and operational reliability. It's perfect for large-scale facilities where consistent, clean, and safe power is essential.

Rated capacity (KVA)	Vector Group	Voltage Combination	No-load loss	Load loss	No-load current	Impedance
30	Yyn0 / Dyn11	10 6.3 6	135	640	2	4.0
50			195	900	2
80			265	1240	1.5
100			290	1410	1.5
125			340	1660	1.3
160			385	1910	1.3
200			445	2270	1.1
250			515	2480	1.1
315			635	3120	1
400			705	3590	1
500			835	4390	1
630			965	5290	0.85	6.0
800			1090	6260	0.85
1000			1270	7310	0.85
1250			1500	8720	0.85
1600			1760	10500	0.85
2000			2190	13000	0.7
2500			2590	15400	0.7

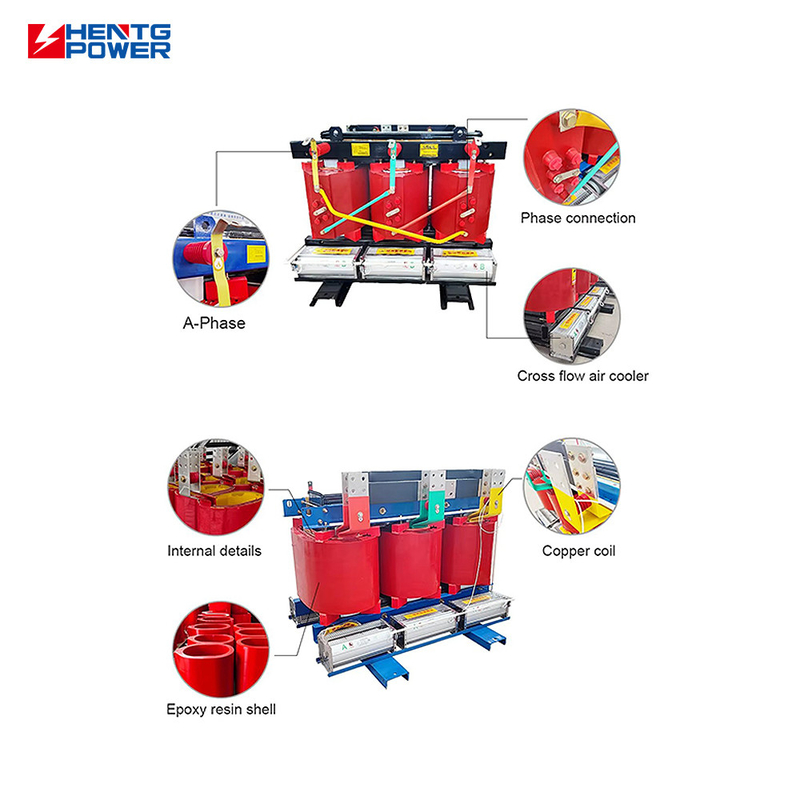

Key Features

Rated Capacity: 1600kVA - Ideal for large commercial, industrial, and utility power systems
Epoxy Resin Insulation - Flame-retardant and moisture-resistant insulation ensures high safety standards
High-Efficiency Silicon Steel Core - Low iron loss, reducing overall energy consumption and operating costs
Air-Cooled (AN) - No oil required, reducing environmental risks and maintenance needs
Low Noise Emission - Operates at ≤ 60 dB, ensuring quieter operations even in noise-sensitive environments
Compact and Robust Design - Built for indoor installations, offering space-saving flexibility

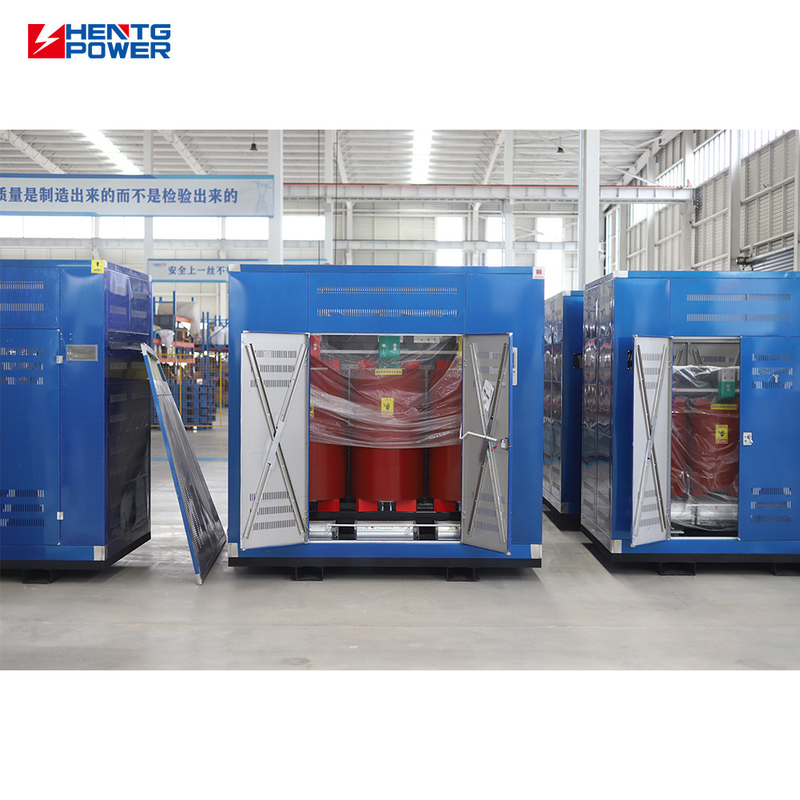

Protection Rating: IP20 - Additional protection options available for enhanced durability (IP23/IP44)

Product Benefits

Reduced Operational Costs: Energy-efficient design with low no-load and load losses helps reduce electricity bills
Enhanced Safety: Fully dry-type, no risk of oil leakage, fire, or explosion, making it ideal for high-traffic areas
Low Maintenance Requirements: No need for oil checks, external cooling systems, or complex maintenance routines
Long-Term Reliability: The resin insulation provides superior mechanical strength and resistance to environmental factors
Stable Power Delivery: Delivers consistent and clean voltage, ideal for sensitive industrial equipment
Environmentally Friendly: Oil-free design and recyclable materials comply with green building standards

Competitive Advantages

Ideal for Large-Scale Applications: Suitable for large factories, data centers, and power plants
Complies with International Standards: Fully adheres to IEC 60076, GB/T 10228, and other global safety and performance standards
Adaptable for Custom Needs: Custom voltages, IP-rated enclosures, and optional monitoring features available
Reliability in Harsh Conditions: Can withstand overloads, mechanical shocks, and harsh environments
Reduced Environmental Impact: The dry-type construction ensures zero pollution and minimal noise emissions

About HENTG POWER

HENTG POWER is a professional designer, manufacturer and installer of power system solutions around the World, founded in 2011, occupying 100,000 square meters. We specialize in reliable, high-performance solutions for global power systems.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment. We will provide QC & test reports. We accept FAT (Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.

Why choose us?

We have the professional and independent drawing team and technical team. It is expected that we can confirm all the contents on the drawings with you within 7 days. We have a professional technical team with 30+ senior engineers offering 24 hours online service and response within 30 minutes.

What services can we provide?

Accept OEM, business payment are negotiated.
