SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
Product Summary
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kVA 1250kVA Product Specifications Frequency 50Hz Phase Three Coil Number Three Windings, Multi Winding, Two Windings, Single Winding Application Power transformer Coil Structure Round coil, Disc Coil, Layer coil, Shell-Type Coil ...
Key Attributes
Brand Name:
HENTG Power
Model Number:
SC(B)13
Place of Origin:
China
Certification:
CE
MOQ:
1
Product Custom Attributes
Highlight
SC(B)13 Dry Type Power Transformer
,1250kva Dry Type Power Transformer
,Dry Type Power Transformer Three Phase
Frequency:
50Hz
Phase:
Three
Coil Number:
Three Windings, Multi Winding, Two Windings, Single Winding
Application:
Power Transformer
Coil Structure:
Round Coil, Disc Coil, Layer Coil, Shell-Type Coil
Output Voltage:
110V, 220V, 380V, 400V
Input Voltage:
10kV, 6kV, 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV
Type:
Dry Type Transformer
Rated Capacity:
800kva 1250kva
Vector Group:
Dyn11 / Yyn0
Advantage:
Maintenance-free
Tapping Range:
2*2.5%/ 5%
Winding Material:
100% Copper/Aluminum
Application:
Tough Conditions, Such As High-humidity
Product Name:
SC(B)13 Dry Type Transformer
Customized:
Accept
Product Description
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kVA 1250kVA
Product Specifications
| Frequency | 50Hz |
| Phase | Three |
| Coil Number | Three Windings, Multi Winding, Two Windings, Single Winding |
| Application | Power transformer |
| Coil Structure | Round coil, Disc Coil, Layer coil, Shell-Type Coil |
| Output Voltage | 110V, 220V, 380V, 400V |
| Input Voltage | 10kV, 6kV, 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV |
| Type | Dry Type Transformer |
| Rated Capacity | 800kVA 1250kVA |
| Vector Group | Dyn11 / Yyn0 |
| Advantage | Maintenance-free |
| Tapping Range | 2*2.5%/ 5% |
| Winding Material | 100% Copper/Aluminum |
| Application Environment | Tough conditions, such as high-humidity |
| Customization | Available |

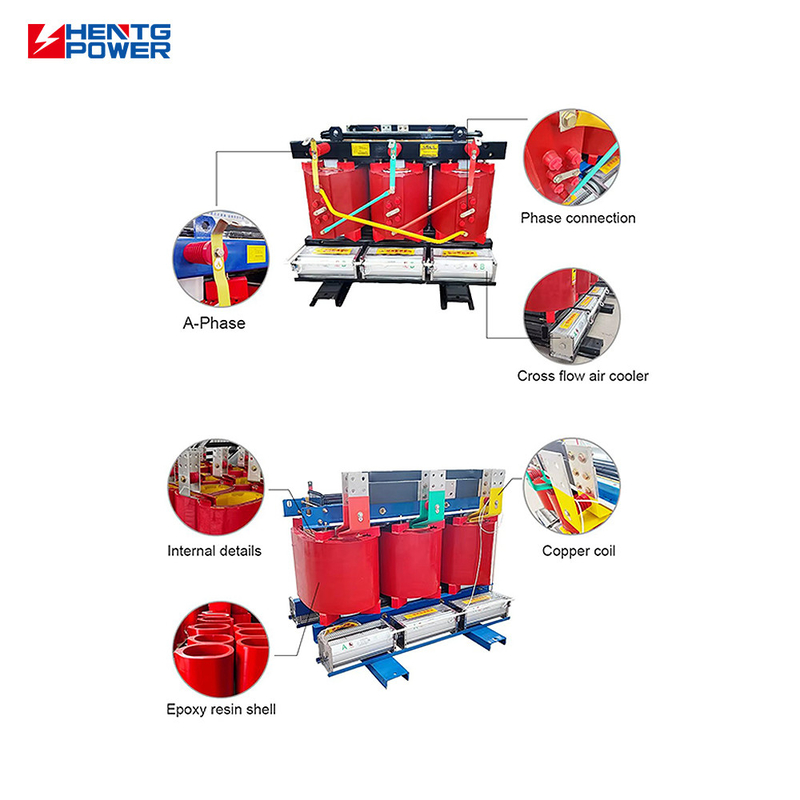

Product Overview
HENTG POWER High-performance SC(B)13 Dry Type Power Transformer with Cooling Fan 800kVA 1250kVA
Technical Parameters
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | |||
| 200 | 445 | 2270 | 1.1 | |||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 | |||
| 400 | 705 | 3590 | 1 | |||
| 500 | 835 | 4390 | 1 | |||
| 630 | 965 | 5290 | 0.85 | 6.0 | ||
| 800 | 1090 | 6260 | 0.85 | |||
| 1000 | 1270 | 7310 | 0.85 | |||
| 1250 | 1500 | 8720 | 0.85 | |||
| 1600 | 1760 | 10500 | 0.85 | |||
| 2000 | 2190 | 13000 | 0.7 | |||
| 2500 | 2590 | 15400 | 0.7 |
Our Manufacturing Process
Step 1: Consultation & Design

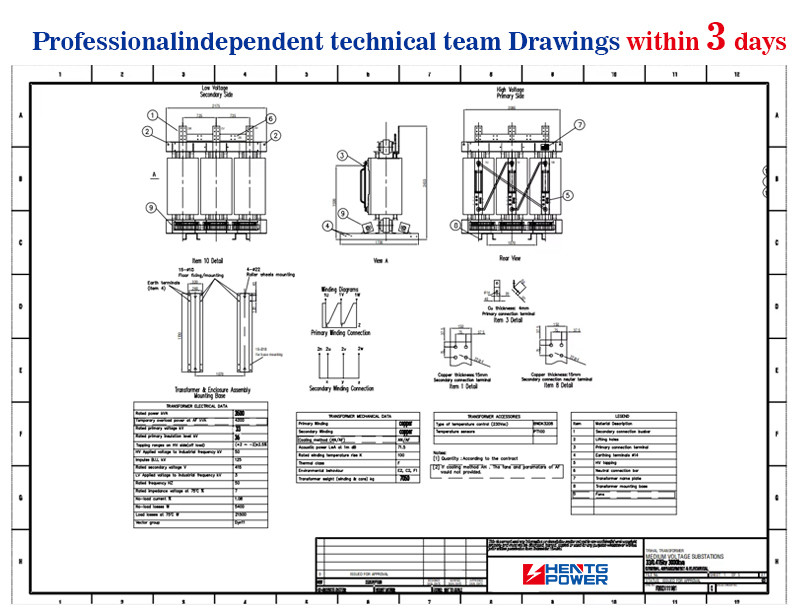

We respond to inquiries within 1 hour, recommending suitable transformers and providing quotations. Our professional drawing and technical teams confirm all drawing details within 7 days after payment, including technical data, weight, and parts list.
Step 2: Production & Quality Control
After finalizing designs, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide QC and test reports, with optional Factory Acceptance Testing (FAT). All raw materials are strictly screened for quality assurance.
Step 3: Installation & Support
Our professional team provides installation guidance and on-site support. All products come with a minimum 2-year warranty service.

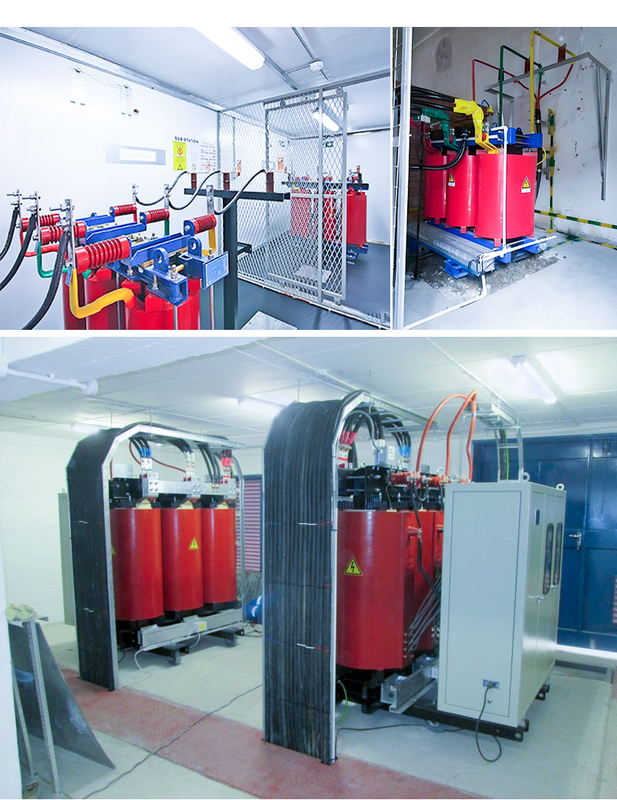

Application Scenarios
With strong short-circuit resistance, low maintenance, high efficiency, compact size, and low noise, our dry-type transformers are ideal for demanding environments requiring fire and explosion prevention, including:
- Power stations
- Factories
- Hospitals
- Airports
- Tunnels
- Chemical plants
- Nuclear power plants
Our Advantages
- 30+ senior engineers providing 24/7 online support with 30-minute response time
- 100,000 m² factory with 250 workers and 30+ engineers
- 4 production lines with 10,000+ units annual capacity
- 100% OQC testing with 25 quality control points
- 15 years of power transformer design and production experience
- Compliance with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards
- Cross-industry power transformer solutions
- Global on-site technical support
Frequently Asked Questions
Q: Who are we?
HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide, founded in 2011 with 100,000 square meter facility. We specialize in reliable, high-performance solutions for global power systems.
Q: How can we guarantee quality?
We conduct pre-production sampling and final inspections before shipment, providing QC & test reports. We offer Factory Acceptance Testing (FAT) and manufacture oil type and dry type distribution transformers up to 500KV 480MVA, GIS, switchgear, and substations, complying with IEEE/DOE2016/CSA/IEC60076 standards. All products come with over 2 years warranty.
Q: Why choose us?
Our professional drawing and technical teams confirm all drawing details within 7 days. With 30+ senior engineers providing 24/7 support and 30-minute response time, we ensure exceptional service and technical expertise.
Q: What services can we provide?
We accept OEM orders and negotiate business payment terms to meet customer requirements.
-
