MV HV Electrical Dry Type Distribution Transformer Three Phase 160kva 200kva 250kva

Name: MV HV Electrical Dry Type Distribution Transformer Three Phase 160kva 200kva 250kva
Brand: Hunan Hentg Power Electric Technology Co., Ltd.
SKU: SC(B)13
Availability: InStock

Product Summary

MV HV Electrical Dry Type Distribution Transformer Three Phase 160kva 200kva 250kva Product Specifications Attribute Value Frequency 50Hz, 60Hz Phase Three Coil Number Multi Winding, Two Windings, Three Windings, Single Winding Application Electronic Coil Structure Layer coil, Disc Coil, Round coil, Shell-Type Coil Output Voltage 415V, 110V, 220V, 380V, 400V Input Voltage 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV Type Dry Type Transformer, AUTOTRANSFORMER Vector Group Dyn11 / Yyn0

Key Attributes

Brand Name: HENTG Power

Model Number: SC(B)13

Place of Origin: China

Certification: CE

MOQ: 1

Product Custom Attributes

Highlight

HV Electrical Dry Type Distribution Transformer

MV Dry Type Distribution Transformer

160kva Dry Type Distribution Transformer

Frequency:

50Hz, 60Hz

Phase:

Three

Coil Number:

Multi Winding, Two Windings, Three Windings, Single Winding

Application:

Electronic

Coil Structure:

Layer Coil, Disc Coil, Round Coil, Shell-Type Coil

Output Voltage:

415V, 110V, 220V, 380V, 400V

Input Voltage:

11kV, 10.5kV, 3kV, 12.47kV, 6.6kV

Type:

Dry Type Transformer, AUTOTRANSFORMER

Vector Group:

Dyn11 / Yyn0

Warranty:

3 Years

Winding Material:

100% Copper/Aluminum

Standard:

ISO9001

Product Name:

SC(B)13 Dry Type Transformer

Advantage:

Strong Short-circuit Resistance, Small Maintenance Workload

Product Description

MV HV Electrical Dry Type Distribution Transformer Three Phase 160kva 200kva 250kva

Product Specifications

Attribute	Value
Frequency	50Hz, 60Hz
Phase	Three
Coil Number	Multi Winding, Two Windings, Three Windings, Single Winding
Application	Electronic
Coil Structure	Layer coil, Disc Coil, Round coil, Shell-Type Coil
Output Voltage	415V, 110V, 220V, 380V, 400V
Input Voltage	11kV, 10.5kV, 3kV, 12.47kV, 6.6kV
Type	Dry Type Transformer, AUTOTRANSFORMER
Vector Group	Dyn11 / Yyn0
Warranty	3 Years
Winding Material	100% Copper/Aluminum
Standard	ISO9001
Product Name	SC(B)13 Dry Type Transformer
Advantage	Strong short-circuit resistance, small maintenance workload

Technical Parameters

Rated capacity (KVA)	Vector Group	Voltage Combination	No-load loss	Load loss	No-load current	Impedance
30	Yyn0 / Dyn11	10 6.3 6	135	640	2	4.0
50			195	900	2
80			265	1240	1.5
100			290	1410	1.5
125			340	1660	1.3
160			385	1910	1.3
200			445	2270	1.1
250			515	2480	1.1	6.0

Our Production Process

Step 1: Inquiry & Design

We respond to inquiries within 1 hour, recommend suitable transformers, and provide quotations. Our professional team confirms all drawing details within 7 days after payment, including technical data, weight, and parts list.

Step 2: Production & Quality Control

After design approval, we prepare stock, produce, and conduct rigorous quality inspections. We provide QC reports and test reports, with raw materials strictly screened for quality assurance.

Step 3: Installation & Support

Our professional team provides installation guidance and on-site support. We offer over 2 years of warranty service and ongoing technical support.

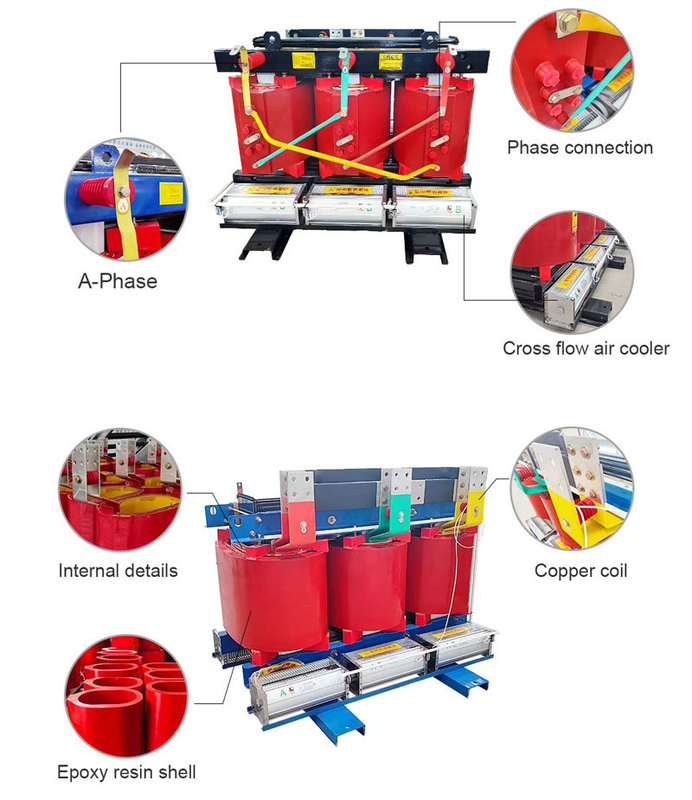

Product Advantages

Safety performance: Oil-free design, fire and explosion prevention, suitable for high safety level applications
Environmental characteristics: Pollution-free, low noise, meets green and energy-saving requirements
Structural strength: Advanced casting technology with high mechanical strength and strong short-circuit resistance
Thermal stability: Small partial discharge, good thermal stability for long-term high load operation
Intelligent control: Temperature control system with real-time monitoring, automatic air cooling, and alarm functions
Energy saving: No-load and load losses below national standards
Heat dissipation: Natural and forced air cooling design with strong overload capacity

Certifications

Company Profile

Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, occupying 100,000 square meters, specializing in reliable, high-performance solutions for global power systems.

How can we guarantee quality?

We conduct pre-production samples and final inspections before shipment, providing QC & test reports. We manufacture oil type and dry type distribution transformers up to 500KV 480MVA, following ANSI/IEEE/DOE2016/CSA/IEC60076 standards with over 2 years warranty.

Why choose us?

We have professional drawing and technical teams that confirm drawings within 7 days. Our team of 30+ senior engineers provides 24-hour online service with 30-minute response times.

What services can we provide?

We accept OEM orders and negotiate business payment terms to meet customer requirements.
