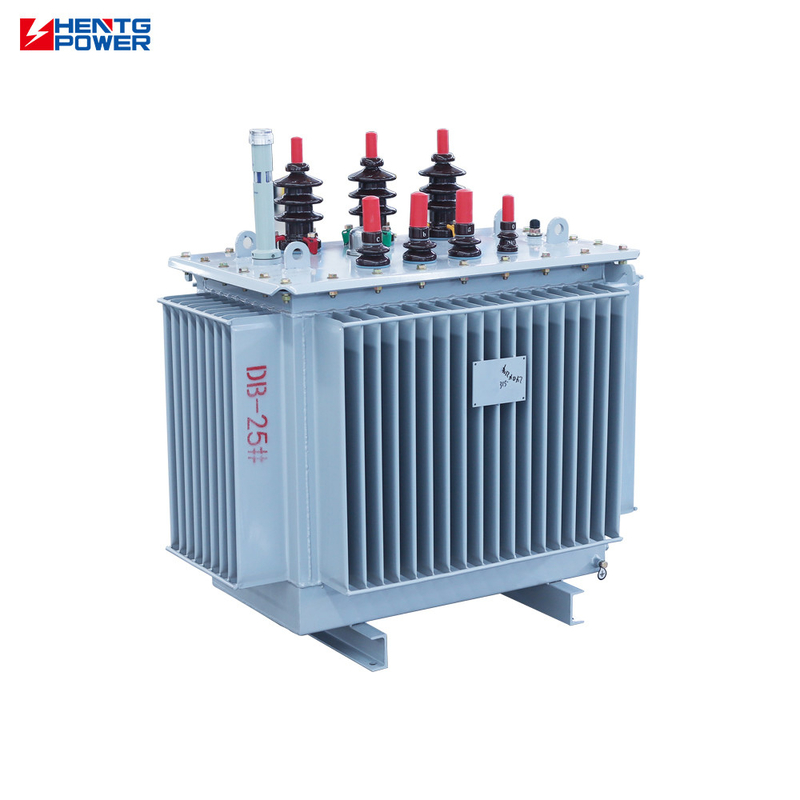

Electric Step Down Power Transformer MV HV Oil Immersed Distribution Transformer 500kva 1000Kva
Electric Step Down Power Transformer MV HV Oil Immersed Distribution Transformer 500kVA-1000kVA Product Specifications Attribute Value Type Distribution transformer, Oil-filled Transformer Material Copper Frequency 50Hz, 60Hz Shape Rectangle Winding Material Copper Application High Frequency Phase Three Coil Structure Circular coil Coil Number Dual-winding coil Input Voltage 10kV, 6kV, 6.3KV Output Voltage 0.4KV Cooling Method ONAF Vector Group Yyn0/Dyn11 Standard IEC60076
step down power transformer mv
,oil immersed distribution transformer 500kva
,step down power transformer mv hv
| Attribute | Value |
|---|---|
| Type | Distribution transformer, Oil-filled Transformer |
| Material | Copper |
| Frequency | 50Hz, 60Hz |
| Shape | Rectangle |
| Winding Material | Copper |
| Application | High Frequency |
| Phase | Three |
| Coil Structure | Circular coil |
| Coil Number | Dual-winding coil |
| Input Voltage | 10kV, 6kV, 6.3KV |
| Output Voltage | 0.4KV |
| Cooling Method | ONAF |
| Vector Group | Yyn0/Dyn11 |
| Standard | IEC60076 |
| Transformer type | S13 Oil-immersed Transformer |
| Warranty | 3 Years |
| Capacity | 500KVA~1000KVA |
| Impedence | 4% or Customized |
| Installation Method | Outdoor |
| Dielectric | Mineral oil (PCBs is prohibited) |

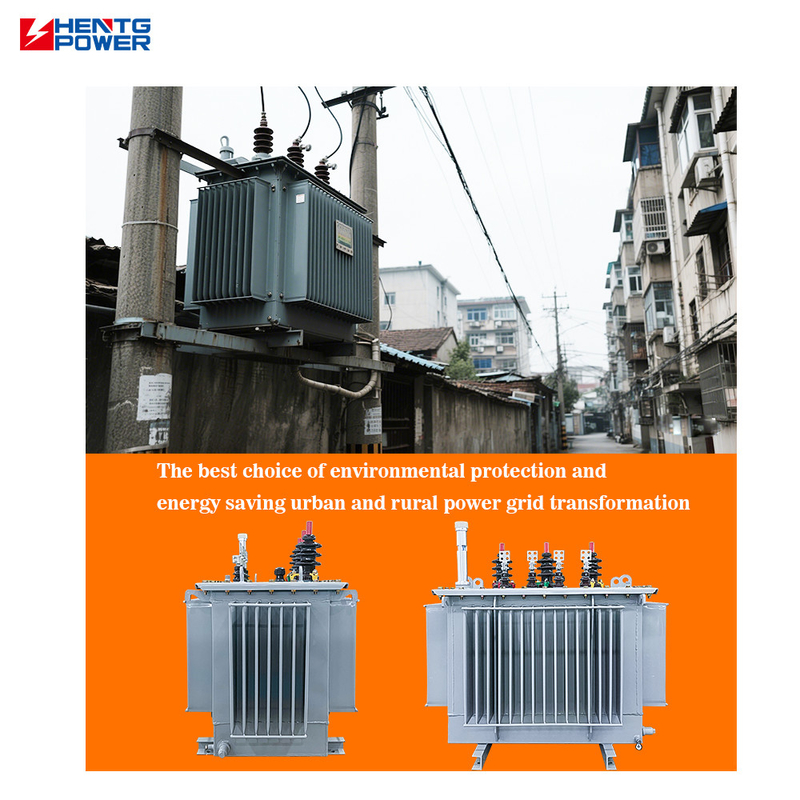

Our oil-immersed distribution transformers range from 30kVA to 2500kVA, with voltage levels up to 35kV. They are widely used in power utilities, renewable energy, industrial facilities, railway systems, and urban infrastructure. Designed to IEC and ANSI standards, our transformers offer high efficiency, low losses, and long service life, suitable for both indoor and outdoor environments.

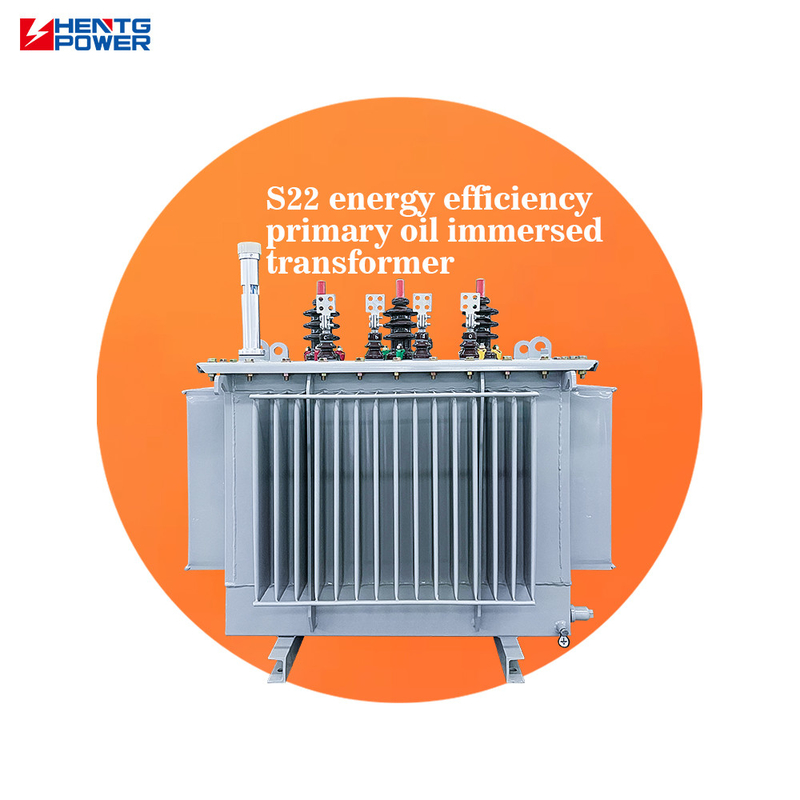

- Higher Energy Efficiency - Lower no-load loss (20-30% reduction compared to S11 models) and improved winding structure reduce resistance and load losses.
- Improved Temperature Rise Performance - Enhanced oil circulation and cooling systems maintain stable operation under load, extending insulation life.
- Reduced Noise Levels - High-permeability silicon steel and precision manufacturing lower magnetostriction for quieter operation.
- Robust Mechanical Design - Optimized winding structure and clamping improve short-circuit resistance and reduce vibration.
- Longer Service Life - Superior materials and structural improvements enable 20-30 years of service under proper conditions.
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 ±5% ±2X2.5% | 80 | 630 | 1.5 | 4.0 |
| 50 | 100 | 910 | 1.3 | |||
| 63 | 110 | 1090 | 1.2 | |||
| 80 | 130 | 1310 | 1.2 | |||
| 100 | 150 | 1580 | 1.1 | |||
| 125 | 170 | 1890 | 1.1 | |||
| 160 | 200 | 2310 | 1.0 | |||
| 200 | 240 | 2730 | 1.0 | |||
| 250 | 290 | 3200 | 0.9 | |||
| 315 | 340 | 3830 | 0.9 | |||
| 400 | 410 | 4520 | 0.8 | |||
| 500 | 480 | 5410 | 0.8 | |||
| 630 | 570 | 6200 | 0.6 | 4.5 | ||
| 800 | 700 | 7500 | 0.6 |

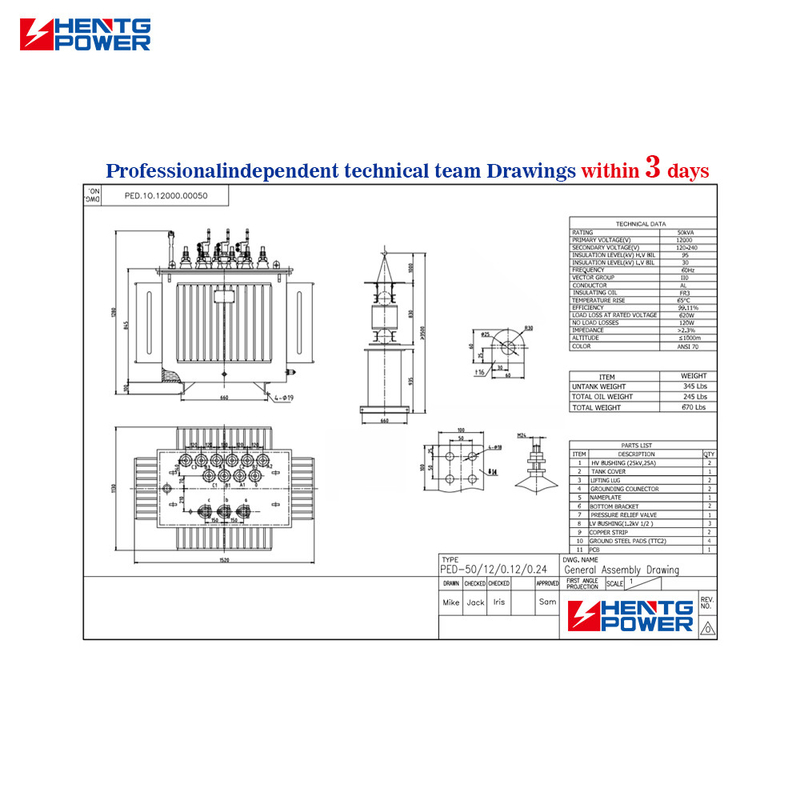

We respond within 1 hour with suitable transformer recommendations, reasonable quotations, and payment terms. Our technical team will confirm all drawing details within 7 days after payment.
After design approval, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide QC and test reports for all products.
We offer professional installation guidance or on-site support, plus a 2+ year warranty service.
If you have any questions, please contact us for discussion!
-
