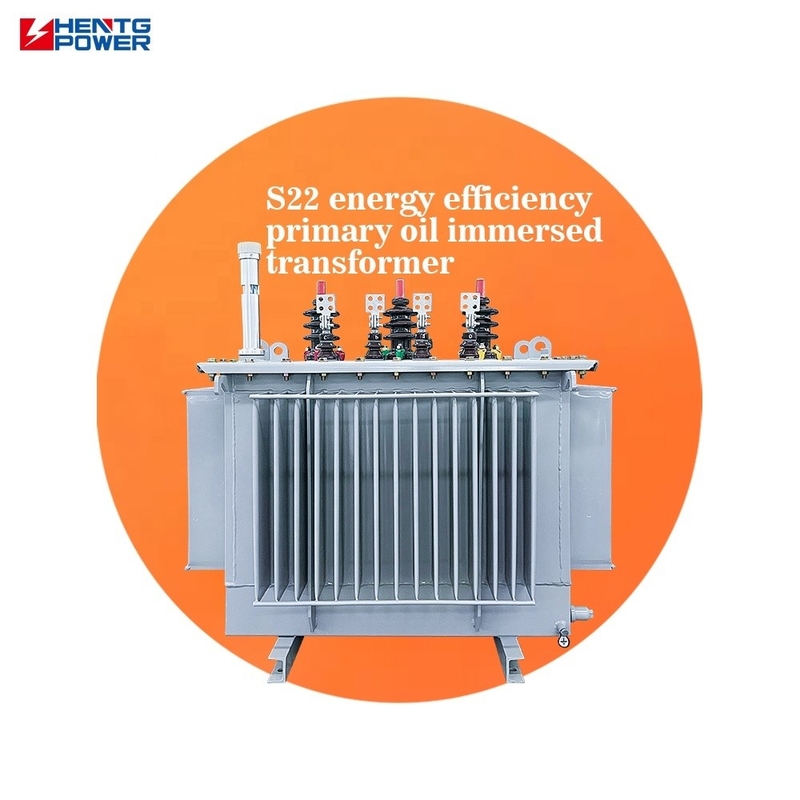

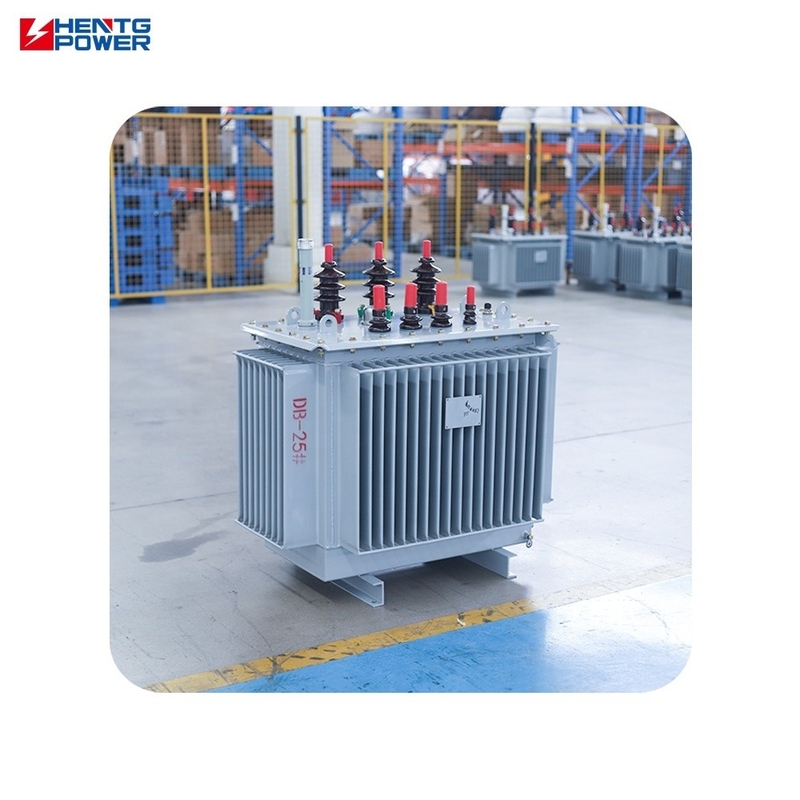

HENTG Power Oil immersed Electrical Transformer 30 Kva-630 KVA Dyn11 / Yyn0 Vector
HENTG Power Oil Immersed Electrical Transformer 30 KVA-630 KVA Dyn11 / Yyn0 Vector Key Specifications Attribute Value Application Power Distribution System Power Transformer Frequency 50Hz, 60Hz Phase Three Coil Structure Shell-Type Coil, layer coil, fully sealed construction, Disc Coil, round coil Output Voltage 10kV, 415V, 110V, 220V, 380V, 400V, 440V, 480V Input Voltage 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV Type Oil-Immersed Transformer, Voltage Regulator Transformer Rated
dyn11 oil immersed transformer
,dyn11 oil immersed electrical transformer
,yyn0 oil immersed transformer
| Attribute | Value |
|---|---|
| Application | Power Distribution System Power Transformer |
| Frequency | 50Hz, 60Hz |
| Phase | Three |
| Coil Structure | Shell-Type Coil, layer coil, fully sealed construction, Disc Coil, round coil |
| Output Voltage | 10kV, 415V, 110V, 220V, 380V, 400V, 440V, 480V |
| Input Voltage | 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV |
| Type | Oil-Immersed Transformer, Voltage Regulator Transformer |
| Rated Capacity | 30KVA~2500KVA |
| Vector Group | Dyn11 / Yyn0 |
| Rated Capacity (KVA) | Vector Group | Voltage Combination | No-load Loss | Load Loss | Impedance |
|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 ±5% ±2X2.5% 0.4 | 65 | 455/430 | 4.0 |
| 50 | 80 | 655/625 | |||
| 63 | 90 | 785/745 | |||
| 80 | 105 | 945/900 | |||
| 100 | 120 | 1140/1080 | |||
| 125 | 135 | 1360/1295 | |||
| 160 | 160 | 1665/1585 | |||
| 200 | 190 | 1970/1870 | |||
| 250 | 230 | 2300/2195 | |||
| 315 | 270 | 2760/2630 | |||
| 400 | 330 | 3250/3095 | |||
| 500 | 385 | 3900/3710 | |||
| 630 | 460 | 4460/4460 | 4.5 |
- Professional 30+ senior engineers offer 24 hours online service with 30-minute response time

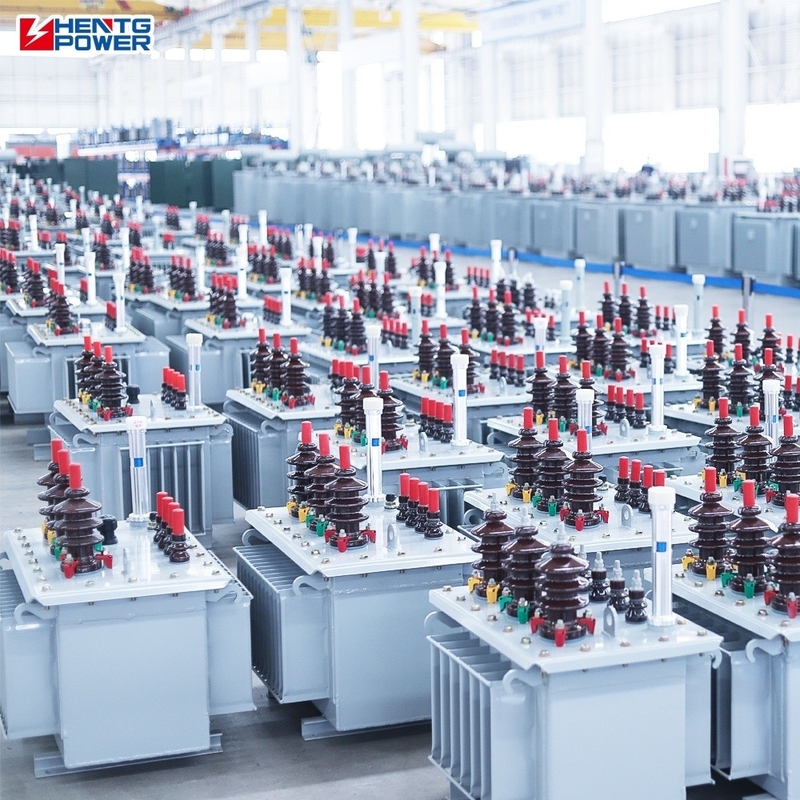

- 100,000m² factory with 250+ workers, 30+ senior engineers and 8 production lines
- 20,000+ sets annual production capacity
- 100% OQC testing with 8 main detection contents
- 15+ years power transformer design and manufacturing experience
- Compliance with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards
- Cross-industry power transformer solutions
- Global on-site technical support
-
