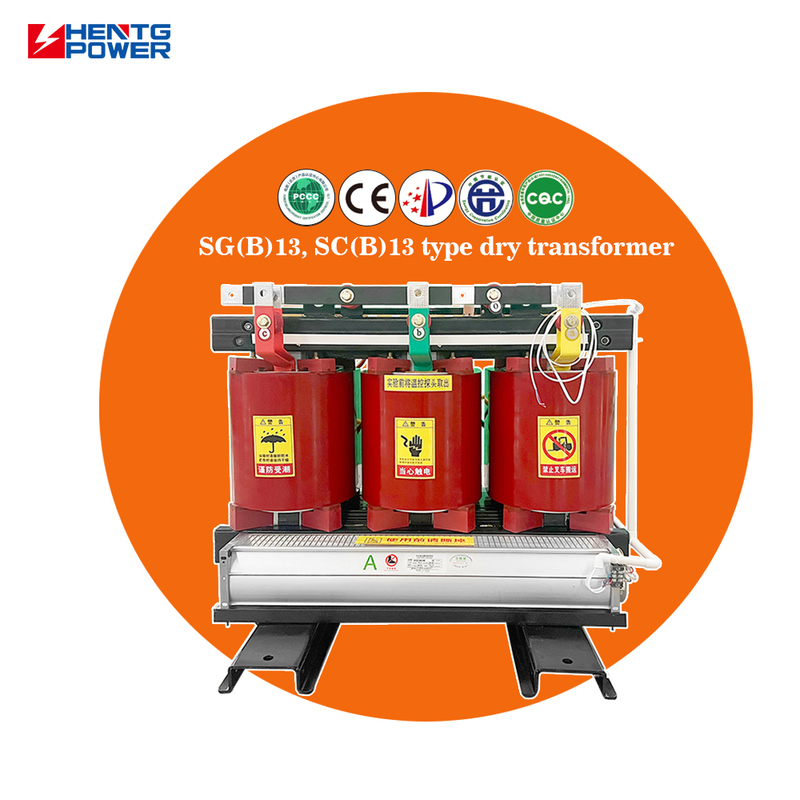

High-performance SC(B)13 Dry Type Power Transformer with 800kva and 1250kva Capacity
High-performance SC(B)13 Dry Type Power Transformer with Cooling Fan 800kva 1250kva HENTG POWER High-performance SC(B)13 Dry Type Power Transformer with Cooling Fan 800kva 1250kva The SC(B)13 dry type power transformer is designed for modern power distribution systems that require high safety, high efficiency, and long-term reliability. Manufactured with advanced cast-resin insulation and premium copper windings, this transformer offers excellent electrical performance with
800kva Dry Type Power Transformer
,1250kva SC(B)13 Transformer
,High-performance Cast Resin Transformer
HENTG POWER High-performance SC(B)13 Dry Type Power Transformer with Cooling Fan 800kva 1250kva
The SC(B)13 dry type power transformer is designed for modern power distribution systems that require high safety, high efficiency, and long-term reliability. Manufactured with advanced cast-resin insulation and premium copper windings, this transformer offers excellent electrical performance with significantly reduced losses.
Equipped with a forced-air cooling fan system, the SC(B)13 ensures superior heat dissipation, stable temperature rise, and extended overload capabilities--making it suitable for demanding environments such as commercial buildings, data centers, industrial plants, and public facilities.
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | |||
| 200 | 445 | 2270 | 1.1 | |||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 | 6.0 | ||
| 400 | 705 | 3590 | 1 | |||
| 500 | 835 | 4390 | 1 | |||
| 630 | 965 | 5290 | 0.85 | |||
| 630 | 935 | 5360 | 0.85 | |||
| 800 | 1090 | 6260 | 0.85 | |||
| 1000 | 1270 | 7310 | 0.85 | |||
| 1250 | 1500 | 8720 | 0.85 |
- High Efficiency, Low Loss (SC(B)13 Standard)
Optimized electromagnetic design reduces load and no-load losses. - Cast Resin Technology
Fire-resistant, moisture-proof, and dust-proof; ideal for indoor applications. - High-Grade Copper Windings
Ensures excellent conductivity and stable long-term performance. - Forced-Air Cooling System (Optional Fans)
Enhances cooling capacity and increases overload capability. - Safe & Eco-Friendly
No oil leakage, zero pollution, and low noise operation. - Customizable Voltage & Tappings
Supports special voltage, tapping range, enclosure type, sensors, and more.
- Commercial Complexes & Shopping Malls
- Hospitals, Schools & Public Buildings
- Industrial Plants & Manufacturing Facilities
- Data Centers & Critical Power Systems
- Renewable Energy & Distribution Networks
-
