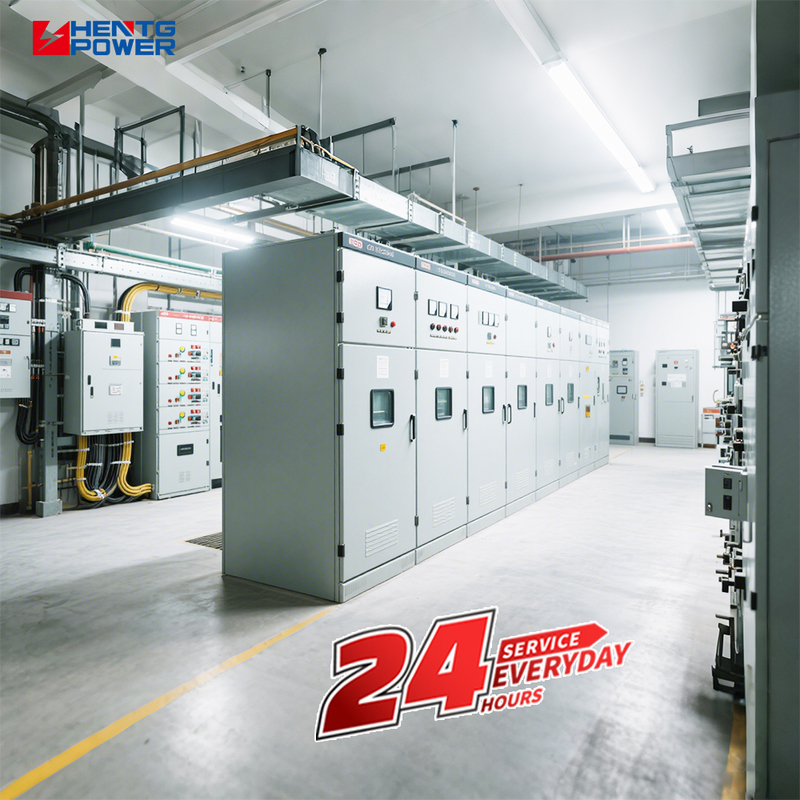

GGD Distribution Control Cabinet with Protection Level IP30-IP40 50Hz Frequency and 380V Rated Working Voltage
GGD Type AC Low Voltage Distribution Cabinet The GGD type AC low-voltage distribution cabinet is designed for power distribution systems in power plants, substations, petrochemical facilities, industrial plants, mining operations, and high-rise buildings. Operating at 50Hz AC frequency with a rated working voltage of 380V and current up to 3150A, this cabinet serves as a complete power distribution solution for energy conversion, distribution, and control. Key Features and
Protection Level IP30-IP40 GGD Distribution Control Cabinet
,50Hz Frequency Power Distribution Cabinet
,380V Rated Working Voltage AC Low Voltage Distribution Cabinet
- Universal welded and assembled frame construction using 8MF cold-formed steel for high precision and strength
- Excellent heat resistance and overload capacity suitable for diverse industrial power loads
- Comprehensive isolation and protection with IP30~IP40 rating (upgradeable to meet specific requirements)
- Strategic ventilation design with top/bottom windows and optional exhaust fans to prevent component overheating

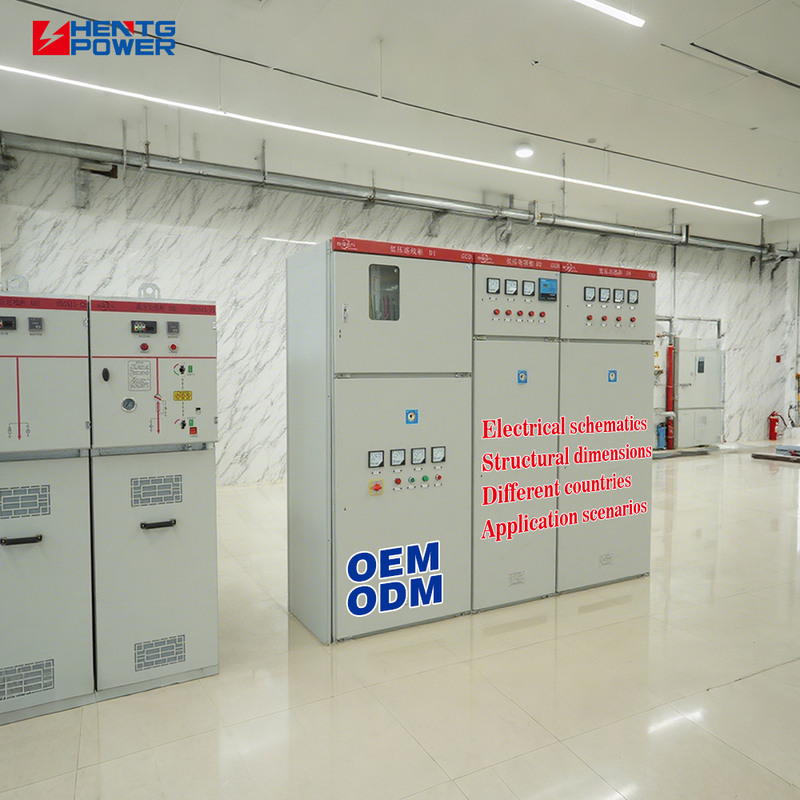

- Fully customizable electrical schematics and structural dimensions for various applications and countries
-
500kVA Compact Substation Transformer Electric Voltage Transformer With Flyback Topology
500kVA Compact Substation Transformer Electric Voltage Transformer With Flyback Topology Product Specifications Attribute Value Type power transformer, distribution transformer, European Box-Type Substation Material Aluminum, Copper, Copper Winding Frequency 50Hz, 60Hz Shape flat, Rectangle Topology Flyback, Boost, BUCK, FORWARD Winding Material Copper, Aluminum Application Power Phase Three Coil Structure TOROIDAL Coil Number Multi-winding coil Input Voltage 380V, 180V, 115V
-
1500kVA Compact Substation Voltage Transformer 3 Phase Ground Mounted Transformer
1500kVA Compact Substation Voltage Transformer 3 Phase Ground Mounted Transformer Product Specifications Attribute Value Type Power transformer, distribution transformer, Auto Transformer Frequency 50Hz, 60Hz Winding Material Aluminum Application Power Distribution System Phase Three Coil Structure Layered Winding Input Voltage 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV Output Voltage 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V,
-
Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer
Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer Product Specifications Attribute Value Type Power transformer, distribution transformer Material Aluminum, Copper Frequency 50Hz, 60Hz Input Voltage 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV Output Voltage 415V, 127V, 200V, 208V, 400V, 380V, 220V, 110V, 480V Capacity 500-2000 kVA Voltage Rating 11kV Power Rating 500kVA Insulation Class Class F Dimensions 1200mm x 800mm x 1000mm Cooling Method ONAN
