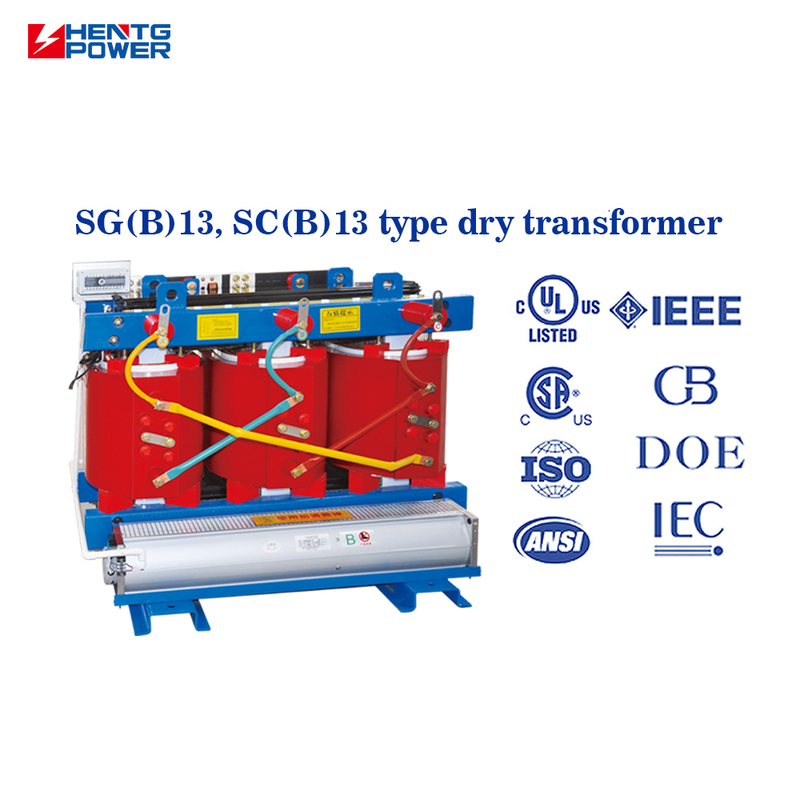

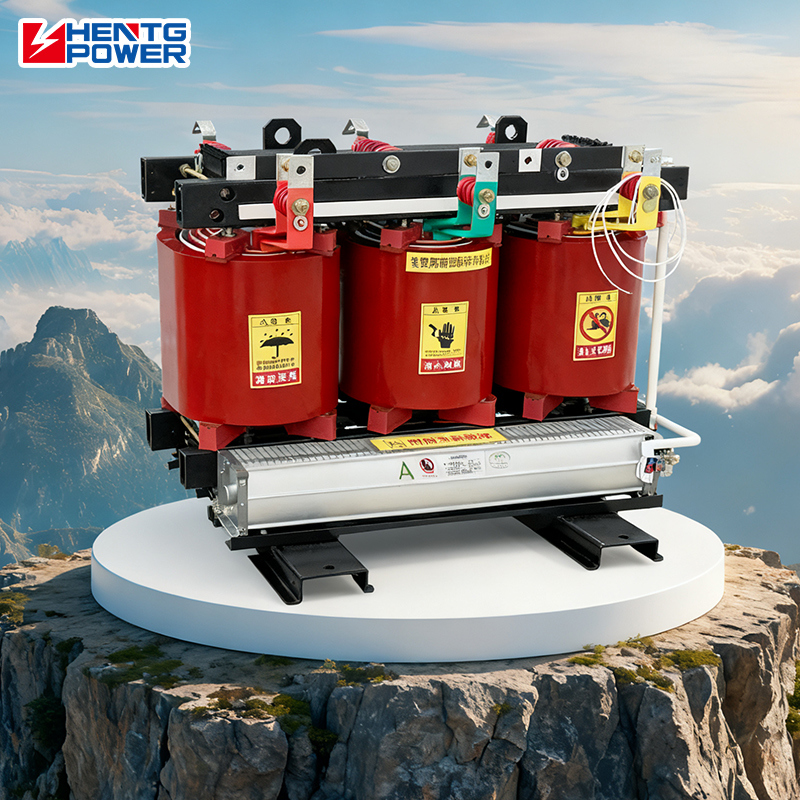

SCB13 Three-Phase Dry Type Transformer for Data Centers Low Loss Distribution Transformer 10kv Output 60hz
SCB13 Three-Phase Dry Type Transformer for Data Centers (10kV, 60Hz, Low Loss) The SCB13 three-phase dry type transformer is specially engineered to meet the strict requirements of data centers, IT facilities, and mission-critical infrastructure . With a 10kV output and 60Hz frequency , it delivers stable and efficient power distribution for servers, cooling systems, and sensitive electronic equipment. Built with cast resin insulation technology , the SCB13 transformer
The SCB13 three-phase dry type transformer is specially engineered to meet the strict requirements of data centers, IT facilities, and mission-critical infrastructure. With a 10kV output and 60Hz frequency, it delivers stable and efficient power distribution for servers, cooling systems, and sensitive electronic equipment.
Built with cast resin insulation technology, the SCB13 transformer ensures fire resistance, moisture resistance, and excellent dielectric strength, making it highly reliable in environments where safety and continuity of operation are paramount. Its low loss and high efficiency design significantly reduces energy consumption and operating costs, fully aligning with green data center initiatives.
- High Reliability – Guarantees stable power for uninterrupted IT operations
- Low Loss & Energy Saving – Reduced no-load and load losses, lowering electricity costs
- Fire & Moisture Resistant – Safe for indoor installation, no oil leakage risks
- Low Noise Operation – Quiet performance, suitable for enclosed server rooms
- Flexible Cooling Options – Natural air cooling (AN) or forced air cooling (AF) for different load demands
- Long Service Life – Optimized coil and core design ensures durability under continuous operation
- Data centers & server farms
- Cloud computing facilities
- Financial institutions & telecom hubs
- Hospitals & critical care facilities
- Commercial complexes & smart buildings
Data centers require uninterrupted power supply, high efficiency, and maximum safety. The SCB13 transformer provides stable voltage output, superior insulation performance, and low operating costs, ensuring that critical IT infrastructure remains secure and efficient.
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance | ||
|---|---|---|---|---|---|---|---|---|
| HV | Tapping range | LV | ||||||
| 30 | Yyn0 / Dyn11 | 10 6.3 6 |
±5% ±2X2.5% (+3/-1)X2.5% |
0.4 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | 1.5 | ||||
| 80 | 265 | 1240 | 1.5 | 1.3 | ||||
| 100 | 290 | 1410 | 1.5 | 1.3 | ||||
| 125 | 340 | 1660 | 1.1 | 1.1 | ||||
| 160 | 385 | 1910 | 1.3 | 1.1 | ||||
| 200 | 445 | 2270 | 1.1 | 1.1 | ||||
| 250 | 515 | 2480 | 1 | 1 | ||||
| 315 | 635 | 3120 | 1 | 1 | ||||
| 400 | 705 | 3590 | 1 | 1 | ||||
| 630 | 965 | 5360 | 0.85 | 0.85 | ||||
| 630 | 935 | 5290 | 0.85 | 0.85 | ||||
| 800 | 1090 | 6260 | 0.85 | 0.85 | ||||
| 1000 | 1270 | 7310 | 0.85 | 0.85 | ||||
| 1250 | 1500 | 8720 | 0.85 | 0.85 | ||||
| 1600 | 1760 | 10500 | 0.85 | 0.85 | ||||
| 2000 | 2190 | 13000 | 0.7 | 0.7 | ||||
| 2500 | 2590 | 15400 | 0.7 | 0.7 | ||||
-
