Outdoor Prefabricated Customized 35kv 10kv New Energy Power Combined Box Type Substation Price

Product Summary

Product characteristics Vacuum circuit breaker or load switch + fuse (combined electrical appliancetechnical solution can be used on the high voltage side of Huashi box. The electricalcharacteristics of the combined electrical structure is that when any phase fuse isblown, the load switch will be guaranteed to trip and cut off the power supply, and themain switch can be closed after replacing the fuse. The vacuum circuit breaker or load switch + fuse (combination electrical

Key Attributes

Brand Name: HENTG Power

Place of Origin: China

Certification: CE

MOQ: 1

Product Custom Attributes

Highlight

35kV oil immersed power transformer

5000kVA Dyn11 transformer

ONAN oil immersed transformer

Usage:

Power,Instrument,power Grid System,High Frequency,Distribution Transformer

Coil Number:

Autotransformer,Three,2,1-6,double Winding

Phase:

Three,Single,Single Or Three Phase

Coil Structure:

Toroidal,YNyn0d11,Other

Frequency:

50/60Hz,50Hz Or 60Hz

Rated Capacity:

30-3000kva,315,63,3000,250

Standard:

IEC60076,IEC Standards,ANCI,DIN,GB1094-1996

Rated Voltage:

35KV,13.2KV,10KV,6.3KV,22KV

Product Name:

Power Distribution Transformer,33/11 Kv 50/60Hz 5000Kva Oil Immersed Power Distribution Transformer,66KV Oil-immersed Power Transformers,Oil Type Power Transformer,22kv Oil Immersed Distribution High Voltage 5 Mva Power Transformer

Material:

Copper,Alumnium Or Copper,Copper+alumnium

Output Voltage:

15kv 10 Kv 0.4/0.69kv,0.415kv,13.8kv,0.4/0.23kV,200v/220/240/380v/400v/415v/440v

Vector Group:

Dyn11,Dyn5,Yyno Or Others,Dyn11/Yzn11,Dyn11 / Yyn0

Cooling Method:

Oil Natural,ONAN,Oil Cooling

Winding Material:

Cooper

Name:

Oil Immersed Distribusion Transformer,On-load Voltage Regulation Transformer,132kv Current Transformer,33kv Oil Immersed Electrical Ct Current Transformer Factory

Input Voltage:

Customized Product,11kv/10.5kv/10kv/6.3kv/6kv,5-35kV

Advantage:

Best Price & Best Quality In China

Product Description

Product characteristics

Vacuum circuit breaker or load switch + fuse (combined electrical appliancetechnical solution can be used on the high voltage side of Huashi box. The electricalcharacteristics of the combined electrical structure is that when any phase fuse isblown, the load switch will be guaranteed to trip and cut off the power supply, and themain switch can be closed after replacing the fuse.

The vacuum circuit breaker or load switch + fuse (combination electrical appliance)used in the high voltage side is set up mechanical interlock to prevent misoperation,and the vacuum circuit breaker or load switch + fuse (combination electricalappliance) is set up signal transmission signal to facilitate the background real-timemonitoring of its operating status and remote control function.

Product Parameters

Basic Technical Parameters
　
2
Insulation & Thermal Classes
　
Type & Model
S11-5000-33/0.69
　
Insulation Level
Class A

Rated Capacity
5000kVA
a
High-Voltage Side
　
Rated Voltage(HV / LV)
33kv/0.69kv
　
Lightning Impulse Withstand(peak)
200kv

Rated Current(HV / LV)
87.5A /4183.7 A
　
Short-Duration Power-Frequency Withstand(r.m.s.)
85kv

Voltage Ratio
±2 × 2.5 %
　
Lightning Impulse Withstand (peak)
　
Short-Circuit Impedance
7%
　
Short-Duration Power-Frequency Withstand (r.m.s.)
5kv

Vector Group
Dyn11
　
Rated Frequency
50Hz
　
Cooling Method
ONAN
　
Losses, Noise & No-Load Current
　
4
Other Technical Requirements
　
No-Load Loss
≤ 3970W (+15%)
4
Overall Dimensions (L × W × H)
2650 mm × 2900 mm × 2750 mm

Load Loss
≤ 39018W (+15%)
b.
Estimated Total Mass
10.7t

Sound Pressure Level
≤ 77 dB(A)
　
No-Load Current
0.50%

Feature

Advantage

Benefit

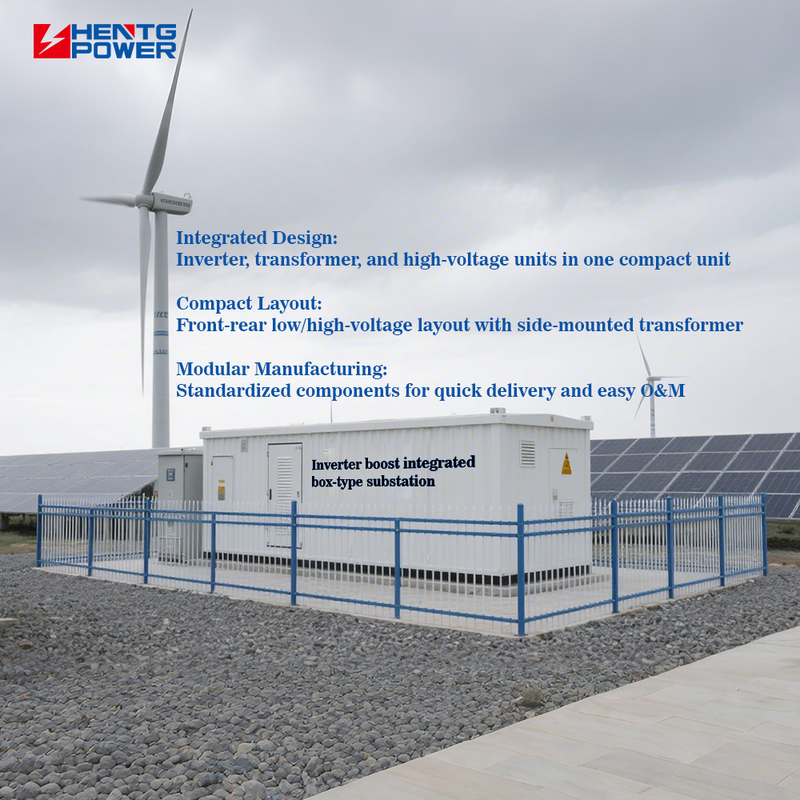

Integrated Design

Combines inverter,transformer,and HV distribution

Fewer devices, savesspace and installationtime

Modular Structure

Standardized componentsfor quick deliveryand easy O&M

Lower O&M costs,higher reliability

High-efficiency Inverter

>98.5% conversionefficiency

Minimizes power loss,improves energyconversion efficiency

Smart Monitoring
System

Real-time monitoring& remote control

Efficient management and fault alerts

Comprehensive
Protection

Over-voltageover-current short-circuit protection

Ensures safe operation for both equipment and personnel

All-weather Adaptability

IP54 rating,works in harsh environments

Applicable in deserts,plateaus and more

Step 1: We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms.We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.
Step 2:
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection
before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
Step 3:
We have a professional team to guide the installation, and also support on-site installation. We will provide
you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our
business now.
If you have any questions, welcome to click here for discussion !!!

With excellent quality and excellent service,Hentg Power Technology hascooperatedwith major customers VESTAS (VESTAS), General Electric (GE),
SIEMENS(SlEMENS),Schneider (Schneider),Toshiba Mitsubishi Electric and otherinternationalwell-known enterprises, And China Railway Engineering Group,China RailwayConstruction Group, China Mobile,

State Grid, China SouthernPower Grid,Shanghai Electric and other large state-owned holding enterprises toestablishlong-term stable customer cooperation.
