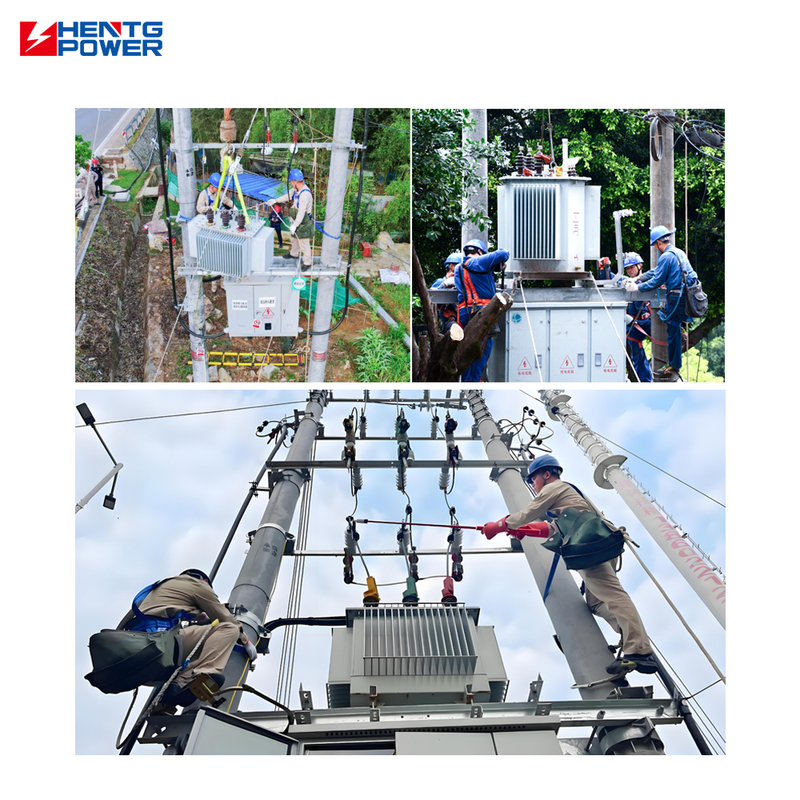

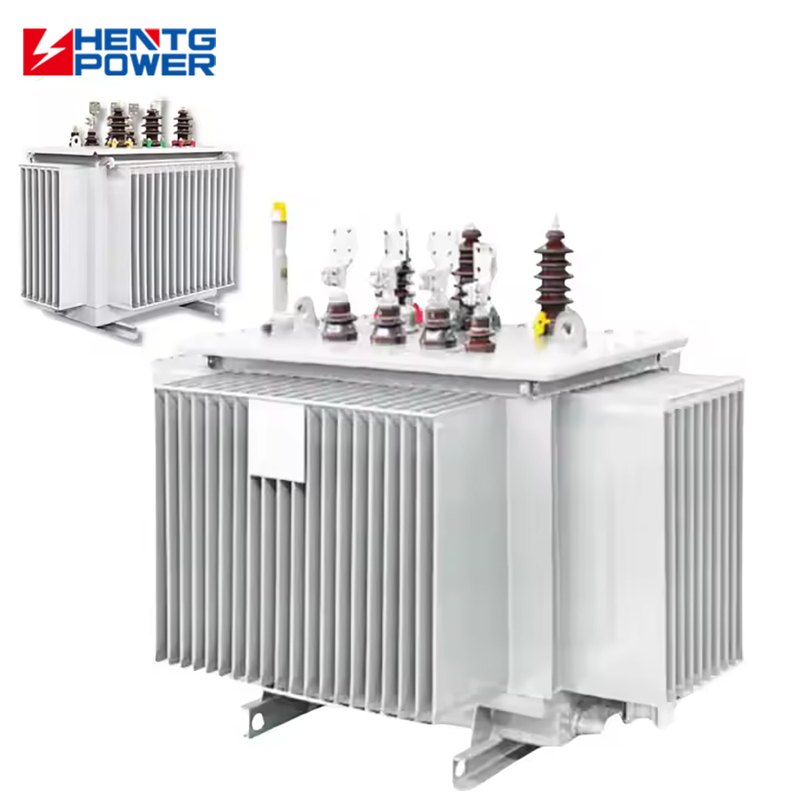

315kVA Oil Immersed Transformer 10kV Three-Phase Dyn11
1. Superior Reliability and DurabilityRugged Construction: The core is constructed from high-quality cold-rolled silicon steel sheets, offering high magnetic permeability and extremely low no-load losses. All-copper or copper foil windings provide low resistance and low load losses, allowing them to withstand transient short-circuit currents and ensure transformer stability even in harsh grid conditions. Long-Lasting Insulating Oil: High-quality mineral oil not only serves as
315kVA oil immersed transformer
,10kV three-phase transformer Dyn11
,oil immersed transformer with warranty
1. Superior Reliability and Durability

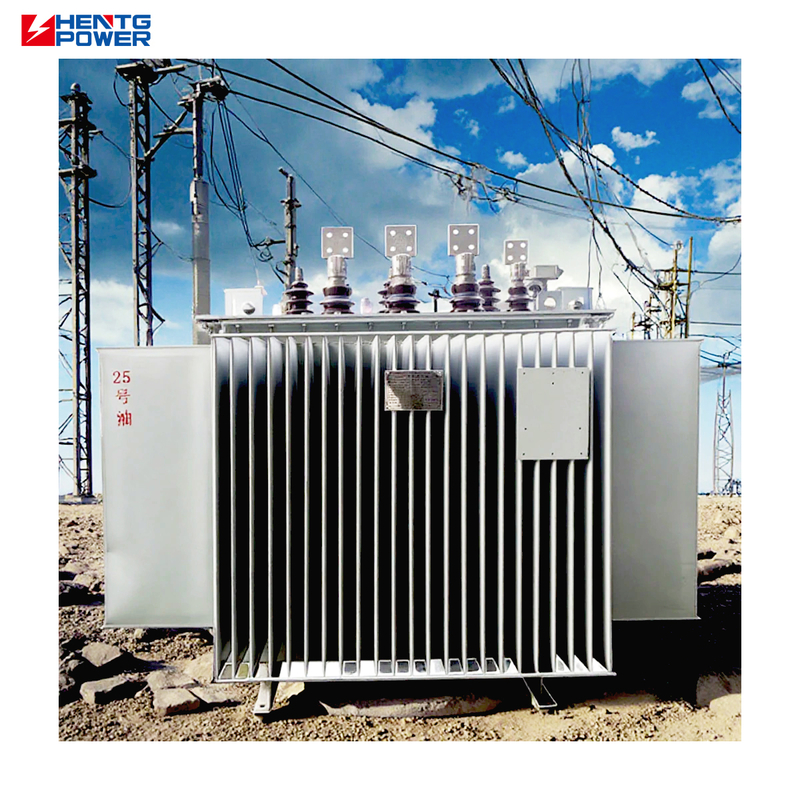

Rugged Construction: The core is constructed from high-quality cold-rolled silicon steel sheets, offering high magnetic permeability and extremely low no-load losses. All-copper or copper foil windings provide low resistance and low load losses, allowing them to withstand transient short-circuit currents and ensure transformer stability even in harsh grid conditions.
Long-Lasting Insulating Oil: High-quality mineral oil not only serves as a cooling medium but also as a highly effective insulating material. It effectively prevents oxidation and corona discharge from internal components, significantly extending the life of the transformer core.
Sealed Design: The housing is constructed from weathering steel, meticulously welded, and rigorously tested for tightness, effectively preventing moisture and contaminants from entering, making it suitable for a variety of indoor and outdoor environments.
| Type number | Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | lmpedance | |||
| HV | Tapping range | LV | Dy | Yy | ||||||
| S13-M-30 | 30 | Yyn0 / Dyn11 | 10 6.3 6 |
±5% ±2X2.5% |
0.4 | 80 | 630 | 600 | 1.5 | 4.0 |
| S13-M-50 | 50 | 100 | 910 | 870 | 1.3 | |||||
| S13-M-63 | 63 | 110 | 1090 | 1040 | 1.2 | |||||
| S13-M-80 | 80 | 130 | 1310 | 1250 | 1.2 | |||||
| S13-M-100 | 100 | 150 | 1580 | 1500 | 1.1 | |||||
| S13-M-125 | 125 | 170 | 1890 | 1800 | 1.1 | |||||
| S13-M-160 | 160 | 200 | 2310 | 2200 | 1.0 | |||||
| S13-M-200 | 200 | 240 | 2730 | 2600 | 1.0 | |||||
| S13-M-250 | 250 | 290 | 3200 | 3050 | 0.9 | |||||
| S13-M-315 | 315 | 340 | 3830 | 3650 | 0.9 | |||||
| S13-M-400 | 400 | 410 | 4520 | 4300 | 0.8 | |||||
| S13-M-500 | 500 | 480 | 5410 | 5150 | 0.8 | |||||
| S13-M-630 | 630 | 570 | 6200 | 6200 | 0.6 | 4.5 | ||||
| S13-M-800 | 800 | 700 | 7500 | 7500 | 0.6 | |||||
| S13-M-1000 | 1000 | 830 | 10300 | 10300 | 0.6 | |||||
| S13-M-1250 | 1250 | 970 | 12000 | 12000 | 0.5 | |||||
| S13-M-1600 | 1600 | 1170 | 14500 | 14500 | 0.5 | |||||
| S13-M-2000 | 2000 | 1360 | 18300 | 18300 | 0.4 | 5.0 | ||||
| S13-M-2500 | 2500 | 1600 | 21200 | 21200 | 0.4 | |||||
High efficiency and energy saving, reducing operating costs.
Low-loss design: Meets or even exceeds energy efficiency standards such as China's GB/T 25446, international IEC 60076, and EU EN 50588 (with clear energy efficiency ratings, such as "Energy Efficiency Level 1") for clarity. Lower no-load and loaded losses mean significant savings in electricity bills over the transformer's 20-30 year lifecycle.
Optimized cooling system: The oil-immersed design inherently offers superior heat dissipation compared to dry-type transformers. Through convection, the oil quickly dissipates heat generated by the windings and core into the air, ensuring continuous, efficient operation at rated capacity and minimizing efficiency losses due to overheating.
Safety and Maintenance Ease
Multiple Safety Protections: Standard features include an oil temperature gauge, oil level gauge, pressure relief valve, and gas relay (Buchholz relay). In the event of an internal fault, the gas relay immediately issues an alarm or trips, protecting the entire power grid.
Easy Maintenance: Sampling, filling, and drain valves facilitate regular oil sampling for testing (DGA dissolved gas analysis), enabling predictive maintenance and preventing potential problems.
