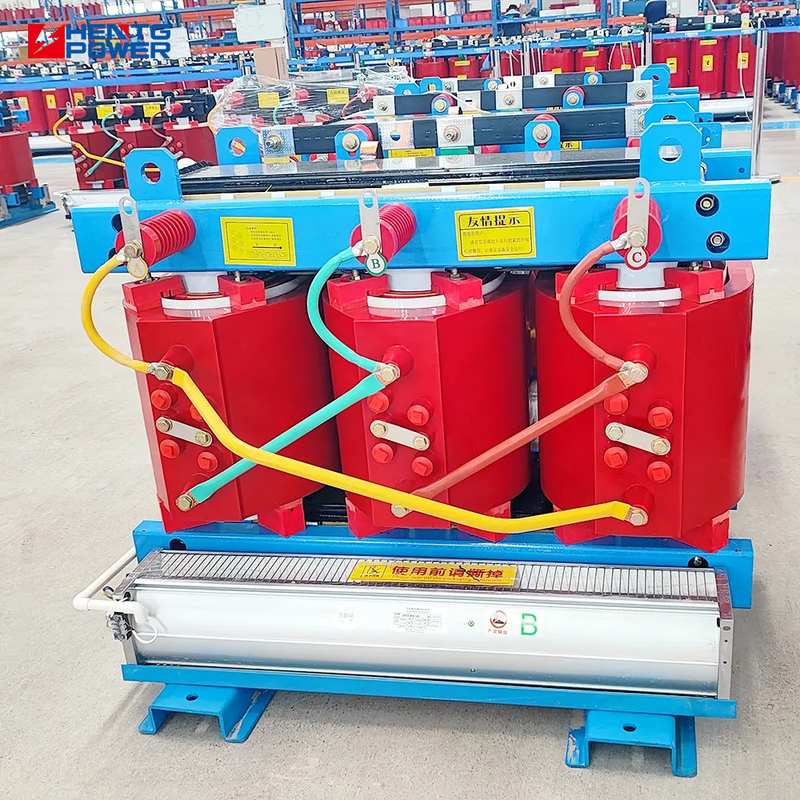

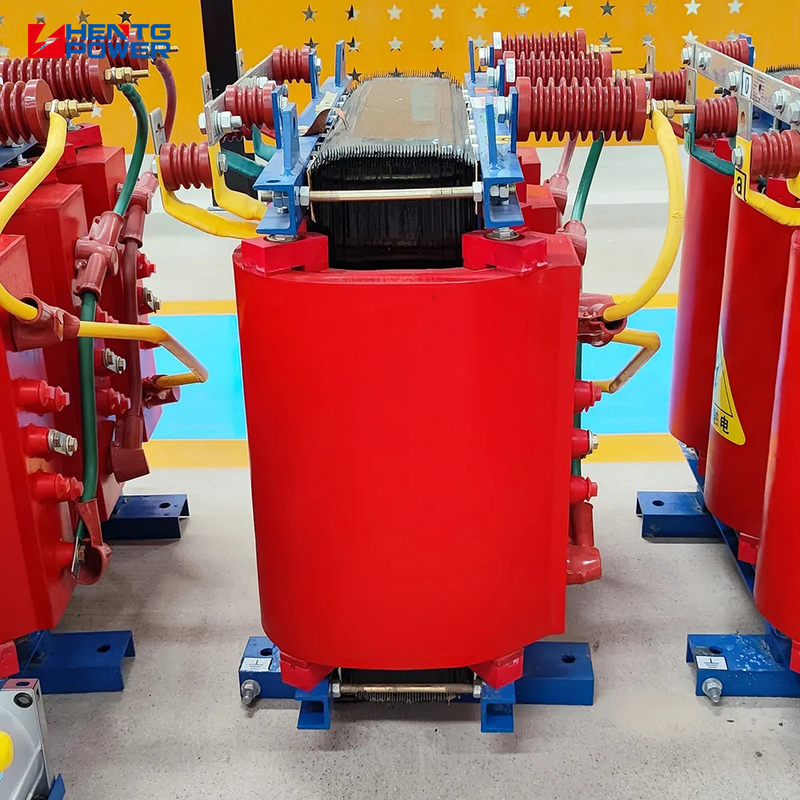

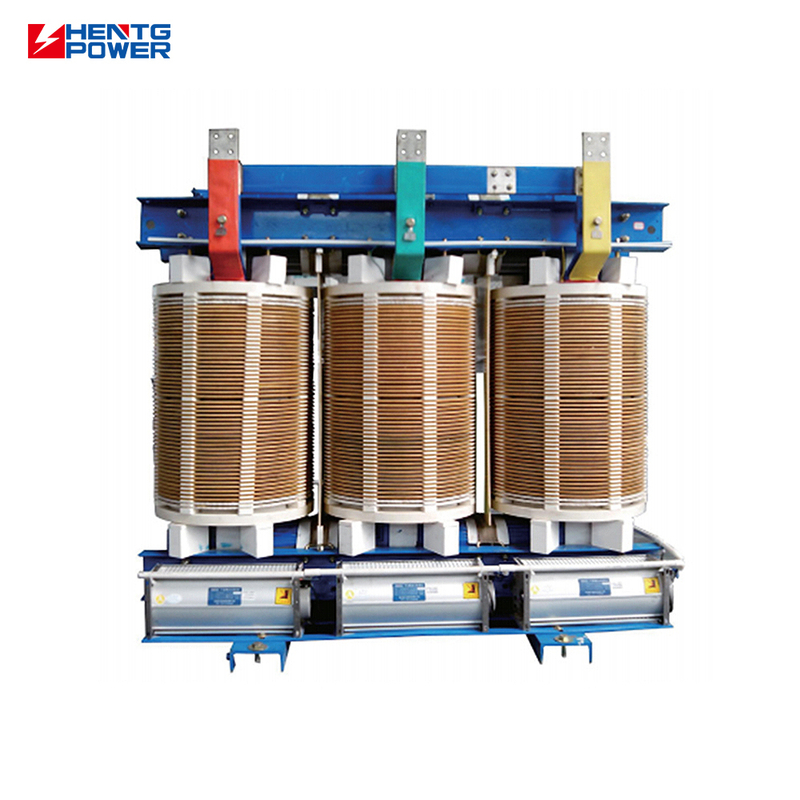

2500 kVA Dry Type Transformer 35KV 60Hz Dyn11
2500 KVA Dry Type Transformer 33KV 3 Phase Indoor Electrical Power Transformer Product Description OEM High Quality Epoxy Resin Dry-Type transformers 1600kva 2000kva 2500kva 60hz Key Specifications Attribute Value Frequency 60Hz Phase Three Output Voltage 415V, 110V, 220V, 380V, 400V, 440V, 480V Input Voltage 11kV, 10.5kV, 12.47kV, 10kV, 35kV, 6.6kV, 6.3kV, 6kV Place of Origin Jiangsu, China Brand Name HENTG POWER Model Number SC(B)13 Coil Number Three Windings, Multi Winding
2500 kVA dry type transformer
,35KV dry type transformer
,Dyn11 dry type transformer
| Attribute | Value |
|---|---|
| Frequency | 60Hz |
| Phase | Three |
| Output Voltage | 415V, 110V, 220V, 380V, 400V, 440V, 480V |
| Input Voltage | 11kV, 10.5kV, 12.47kV, 10kV, 35kV, 6.6kV, 6.3kV, 6kV |
| Place of Origin | Jiangsu, China |
| Brand Name | HENTG POWER |
| Model Number | SC(B)13 |
| Coil Number | Three Windings, Multi Winding, Two Windings |
| Application | Distribution system |
| Coil Structure | Layer coil, Disc Coil, Round coil, Shell-Type Coil |
| Type | Dry Type Transformer |
| Vector Group | Dyn11 / Yyn0 |
| Application | Indoor with high-performance requirements |
| Warranty | 18 months |
| Tapping Range | 2*2.5%/ 5% |
| Cooling Method | With cooling fans |
| Advantages | Strong overload capacity, and maintenance free |
- ✅ Safe, fireproof, pollution-free, maintenance free
- ✅ Low loss, low noise, significant energy-saving effect
- ✅ High mechanical strength, strong short-circuit resistance, good thermal stability, and long service life
- ✅ Good heat dissipation performance, strong overload capacity, and can operate for a short period of time under forced air cooling
- ✅ Has certain moisture resistance and can operate in harsh environments with high humidity
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | |||
| 200 | 445 | 2270 | 1.1 | |||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 | |||
| 400 | 705 | 3590 | 1 | |||
| 500 | 835 | 4390 | 1 | |||
| 630 | 965 | 5290 | 0.85 | |||
| 630 | 935 | 5360 | 0.85 | 6.0 | ||
| 800 | 1090 | 6260 | 0.85 | |||
| 1000 | 1270 | 7310 | 0.85 | |||
| 1250 | 1500 | 8720 | 0.85 | |||
| 1600 | 1760 | 10500 | 0.85 | |||
| 2000 | 2190 | 13000 | 0.7 | |||
| 2500 | 2590 | 15400 | 0.7 |
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms. We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list.

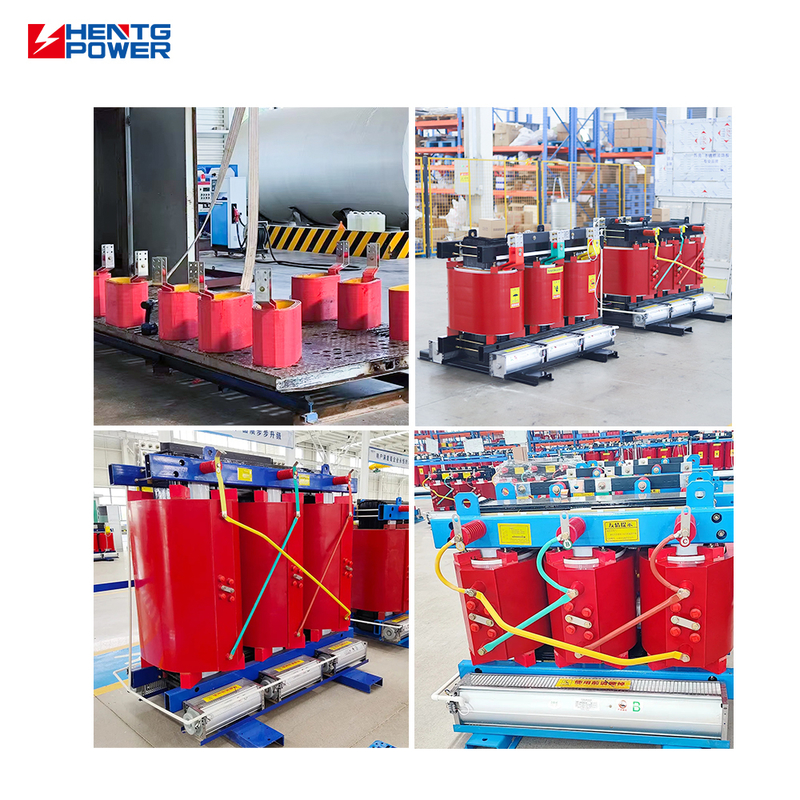

After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation.
-
