Classic Design Three Phase Power Transformer Oil Type 400kva 800kva 10kv
Classic Design Three Phase Power Transformer Oil Type 400kVA - 800kVA 10kV Product Specifications Attribute Value Type Power transformer, distribution transformer, Oil-filled Transformer Frequency 50Hz, 60Hz Winding Material Aluminum Application Power Distribution System Phase Three Coil Structure ...
power transformer oil type 400kva
,classic design three phase power transformer
,400kva three phase power transformer
| Attribute | Value |
|---|---|
| Type | Power transformer, distribution transformer, Oil-filled Transformer |
| Frequency | 50Hz, 60Hz |
| Winding Material | Aluminum |
| Application | Power Distribution System |
| Phase | Three |
| Coil Structure | Layered Winding |
| Cooling Method | ONAN ONAF OFAF |
| Vector Group | Dyn11/Yyn0 |
| Rated Capacity (kVA) | No-load Loss (W) | Load Loss (W) | Impedance (%) |
|---|---|---|---|
| 30 | 70 | 505 | 4.0 |
| 50 | 90 | 730 | 4.0 |
| 63 | 100 | 870 | 4.0 |
| 80 | 115 | 1050 | 4.0 |
| 100 | 135 | 1265 | 4.0 |
| 125 | 150 | 1510 | 4.0 |
| 160 | 180 | 1850 | 4.0 |
| 200 | 215 | 2185 | 4.0 |
| 250 | 260 | 2560 | 4.0 |
| 315 | 305 | 3065 | 4.0 |
| 400 | 370 | 3615 | 4.5 |
| 500 | 430 | 4330 | 4.5 |
| 630 | 510 | 4960 | 4.5 |
| 800 | 630 | 6000 | 4.5 |
We respond within 1 hour with transformer recommendations tailored to your needs, including competitive quotations and payment terms. Our professional technical team will confirm all drawing details with you within 7 days after payment, including technical data, weight, and parts list.
After finalizing production drawings, we prepare materials and manufacture your transformer with strict quality control. We provide QC reports and test certificates for all products. Custom accessories are available upon request.

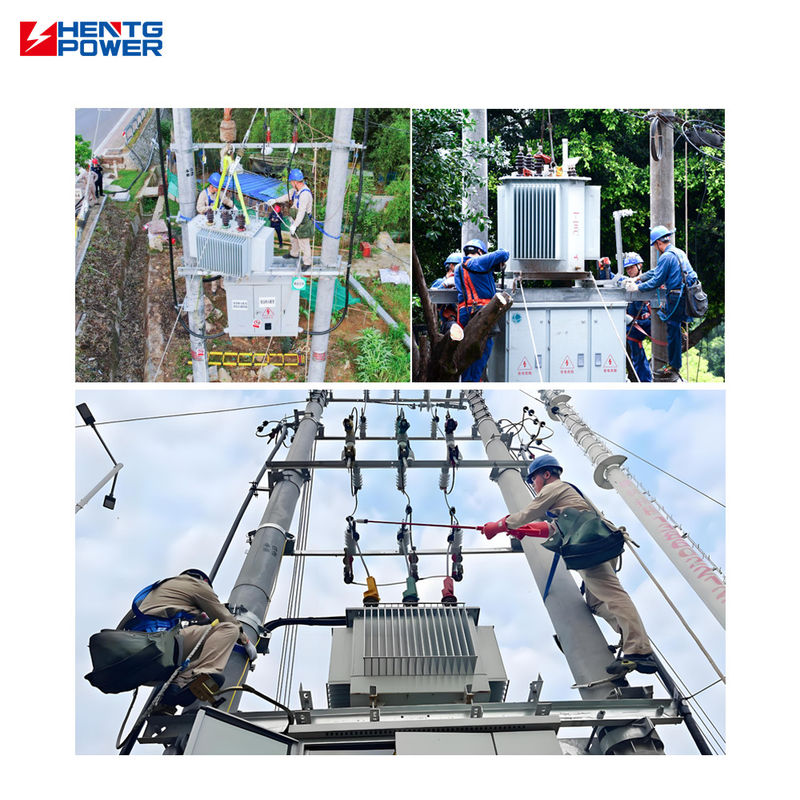

We offer professional installation guidance and on-site support. All transformers come with a minimum 2-year warranty. Our team is committed to creating win-win partnerships.
-
