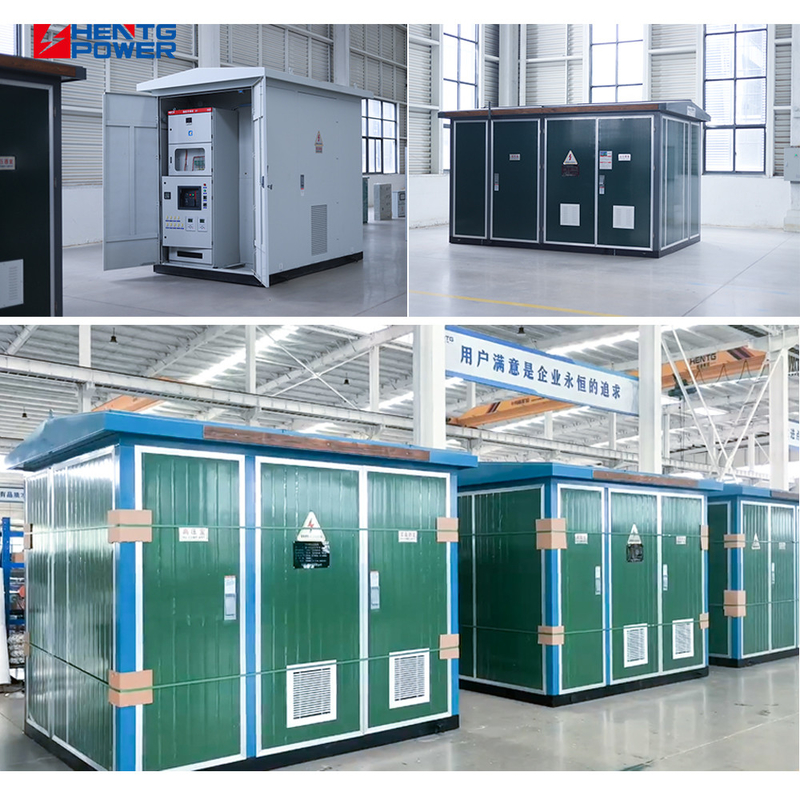

Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer
Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer Product Specifications Attribute Value Type Power transformer, distribution transformer Material Aluminum, Copper Frequency 50Hz, 60Hz Input Voltage 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV Output Voltage 415V, 127V, 200V, 208V, 400V, 380V, 220V, 110V, 480V Capacity 500-2000 kVA Voltage Rating 11kV Power Rating 500kVA Insulation Class Class F Dimensions 1200mm x 800mm x 1000mm Cooling Method ONAN
Box Type Compact Substation 500kva
,800kva Compact Substation Power Transformer
,Box Type Outdoor Power Transformer
| Attribute | Value |
|---|---|
| Type | Power transformer, distribution transformer |
| Material | Aluminum, Copper |
| Frequency | 50Hz, 60Hz |
| Input Voltage | 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV |
| Output Voltage | 415V, 127V, 200V, 208V, 400V, 380V, 220V, 110V, 480V |
| Capacity | 500-2000 kVA |
| Voltage Rating | 11kV |
| Power Rating | 500kVA |
| Insulation Class | Class F |
| Dimensions | 1200mm x 800mm x 1000mm |
| Cooling Method | ONAN |
| Efficiency | ≥ 97% |
| Operating Temperature | -25°C to 40°C |
HENTG Power's pad-mounted transformer is a fully sealed, fully insulated ground-mounted distribution unit, widely used in residential areas, shopping centers, industrial plants, and public parks. Built to North American standards, it offers high reliability, enhanced safety, and easy installation.
| Rated Frequency | 50 Hz |
| Rated Voltage | 6, 10, 35 kV |
| Max Working Voltage | 6.9, 11.5, 40.5 kV |
| Industrial Frequency Voltage-resisting Time | 32/36, 42/48, 95/118 kV |
| Rated Current | 400, 630 A |
| Rated Voltage | 380, 220 V |
| Rated Current Of Major Return Circuit | 100-3200 A |
| Rated short-circuit Current-resisting | 15, 30, 50 kA |
| Rated Capacity | 50-2000 kVA |
| Short-circuit Impedance | 4, 6 % |
| Vector Group | Yyn0, Dyn11 |
We respond within 1 hour with suitable transformer recommendations, competitive quotations, and payment terms. Our technical team confirms all drawing details within 7 days after payment, including technical data, weight, and parts list.
After finalizing production drawings, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide QC reports and test reports, with options for Factory Acceptance Tests (FAT).

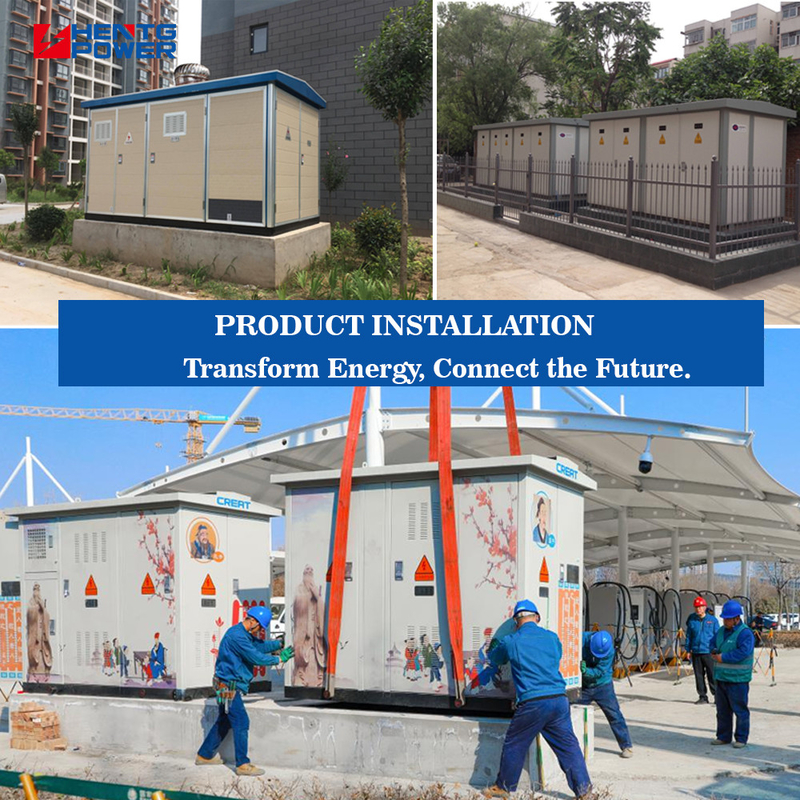

Our professional team provides installation guidance or on-site support. All products come with a 2+ year warranty and ongoing technical support.
- Aesthetic and Durable Appearance: Clean modern design with strong environmental adaptability that integrates well with urban architecture.
- Proximity to Load Centers: Enables deployment close to medium-voltage loads, reducing line losses and improving power quality.
- Cost-Effective Operation: Requires no civil infrastructure or full-time staffing, with long maintenance cycles for lower total cost of ownership.
- Environmentally Friendly: Modular design allows for relocation and reuse, supporting sustainable development goals.
HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, occupying 100,000 square meters. We specialize in reliable, high-performance solutions for global power systems.
We conduct pre-production sampling and final inspections before shipment, providing QC & test reports. We accept Factory Acceptance Tests (FAT) and manufacture transformers up to 500KV 480MVA, GIS, switchgear, and substations to ANSI/IEEE/DOE2016/CSA/IEC60076 standards.
We have a professional drawing and technical team that confirms all drawing details within 7 days. Our 30+ senior engineers provide 24/7 online support with 30-minute response times.
We accept OEM orders and negotiate business payment terms to meet customer requirements.
-
