10KV Step Down Low Voltage Oil Immersed Transformer Custom Electric Distribution Transformer
10KV Step Down Low Voltage Oil Immersed Transformer Custom electric distribution transformer designed for industrial applications with high efficiency and reliability. Product Specifications Attribute Value Type Distribution transformer, Oil-filled Transformer Material Copper, Aluminum, Steel ...
oil immersed transformer custom
,low voltage oil immersed transformer
,30kv oil immersed electrical transformer
Custom electric distribution transformer designed for industrial applications with high efficiency and reliability.
| Attribute | Value |
|---|---|
| Type | Distribution transformer, Oil-filled Transformer |
| Material | Copper, Aluminum, Steel |
| Frequency | 50Hz |
| Shape | Rectangle |
| Winding Material | Copper, Aluminum |
| Application | Electronic, Industrial |
| Phase | Three |
| Coil Structure | Circular coil |
| Coil Number | Dual-winding coil |
| Input Voltage | 10kV, 35kV |
| Output Voltage | 0.4KV |
| Color | White |
| Size | 150*80*120CM |
| Vector Group | Dyn 11 |
| Cooling Method | ONAN |

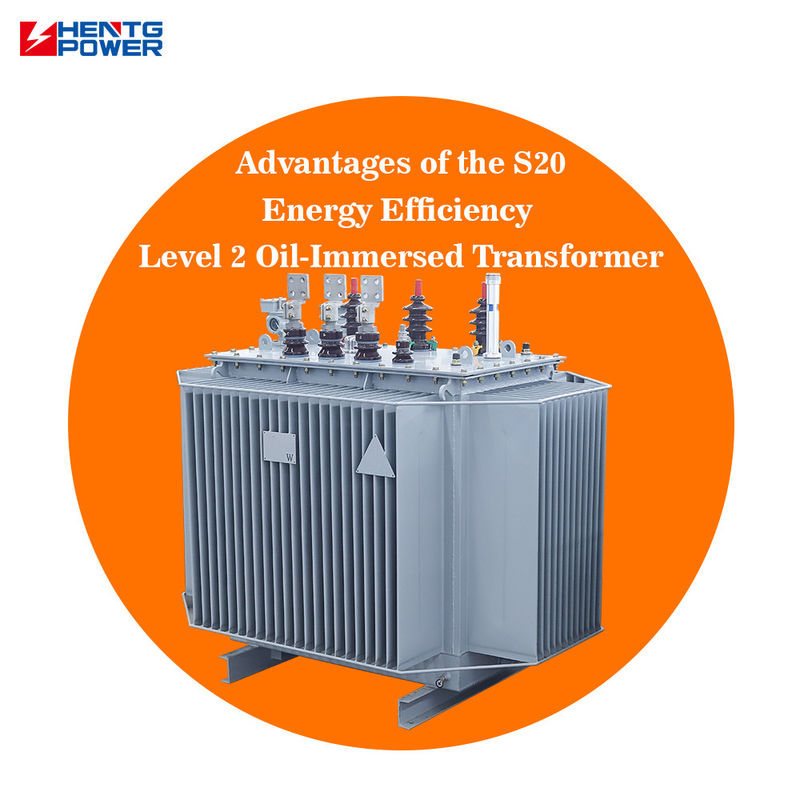

HENTG Power S20 30KV Step Down Low voltage Oil Immersed Transformer is a custom electric distribution transformer featuring:
- Oil-immersed design with integrated insulation kits
- Premium cellulose pressboard for high dielectric strength
- Structural stability for 30 kVA-2500 kVA distribution systems

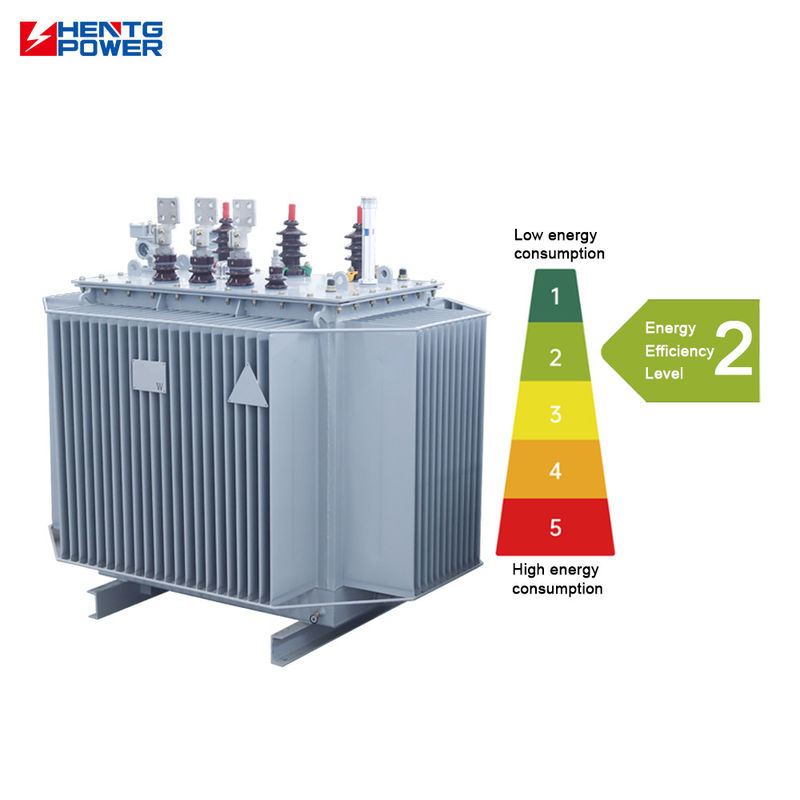

- S20 Type Energy-Efficient design
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | Impedance |
|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 70 | 505 | 4.0 |
| 50 | 90 | 730 | |||
| 63 | 100 | 870 | |||
| 80 | 115 | 1050 | |||
| 100 | 135 | 1265 | |||
| 125 | 150 | 1510 | |||
| 160 | 180 | 1850 | |||
| 200 | 215 | 2185 | |||
| 250 | 260 | 2560 | |||
| 315 | 305 | 3065 | |||
| 400 | 370 | 3615 | |||
| 500 | 430 | 4330 | |||
| 630 | 510 | 4960 | 4.5 | ||
| 800 | 630 | 6000 | |||
| 1000 | 745 | 8240 | |||
| 1250 | 870 | 9600 | |||
| 1600 | 1050 | 11600 | |||
| 2000 | 1225 | 14640 | 5.0 | ||
| 2500 | 1440 | 14840 |
HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide. Founded in 2011 with a 100,000 square meter facility, we specialize in reliable, high-performance solutions for global power systems.

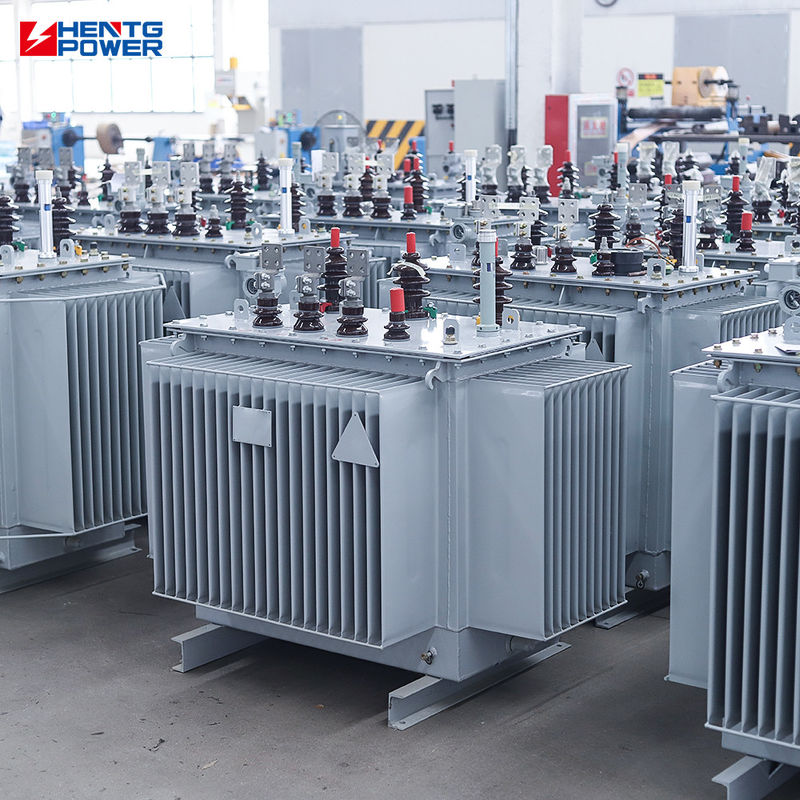

We implement strict quality control measures including pre-production samples, final inspections before shipment, and provide QC & test reports. We accept Factory Acceptance Tests (FAT). Our factory manufactures both oil type and dry type distribution transformers up to 500KV 480MVA power transformers, GIS, switchgear, and substations, compliant with ANSI/IEEE/DOE2016/CSA/IEC60076 standards. We offer a 2+ year guarantee service.
We have a professional drawing and technical team that can confirm all drawing contents within 7 days. Our technical team includes 30+ senior engineers providing 24/7 online support with responses within 30 minutes.
- Power Distribution Networks
-
