Place of Origin:
Hunan, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
S13
| Attribute | Value |
|---|---|
| Type | Power transformer, distribution transformer, Oil-filled Transformer |
| Frequency | 50Hz, 60Hz |
| Winding Material | Aluminum |
| Application | Power Distribution System |
| Phase | Three |
| Input Voltage | 3kV to 400kV (multiple options) |
| Output Voltage | 5V to 480V (multiple options) |
| Cooling Method | ONAN ONAF OFAF |
| Vector Group | Dyn11/Yyn0 |

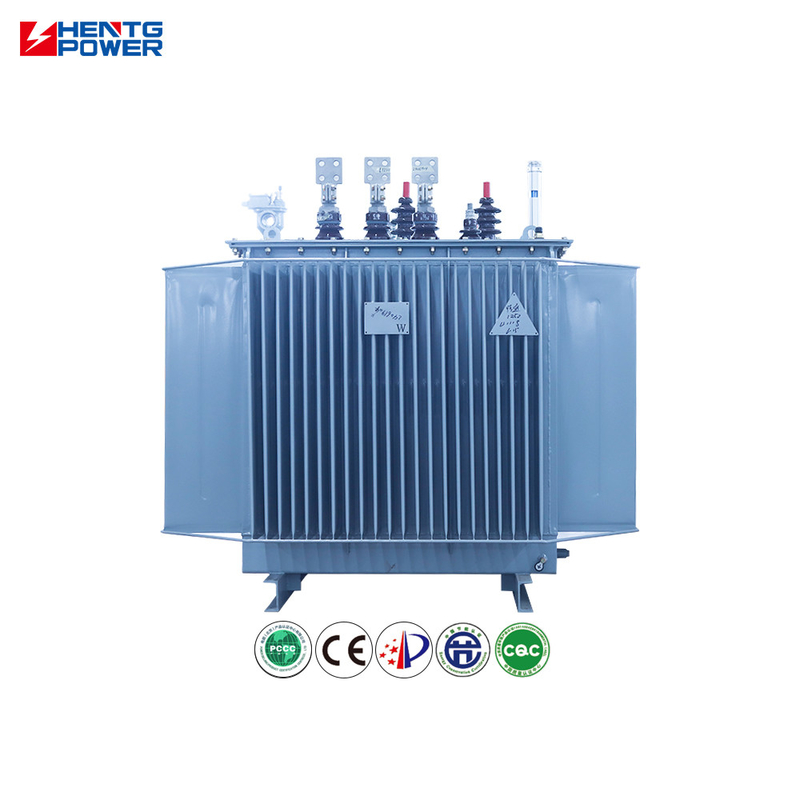

Our Type S13 oil-immersed distribution transformers range from 30kVA to 2500kVA, with voltage levels up to 35kV. Designed to IEC and ANSI standards, these transformers offer high efficiency, low losses, and long service life for both indoor and outdoor applications in power utilities, renewable energy, industrial facilities, and urban infrastructure.
| Rated Capacity (kVA) | Vector Group | Voltage Combination | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Impedance (%) |
|---|---|---|---|---|---|---|
| 30 | Yyn0/Dyn11 | 10/6.3/6 ±5% ±2×2.5% | 80 | 630 | 1.5 | 4.0 |
| 50 | 100 | 910 | 1.3 | |||
| 2000 | 1360 | 18300 | 0.4 | 5.0 | ||
| 2500 | 1600 | 21200 | 0.4 |

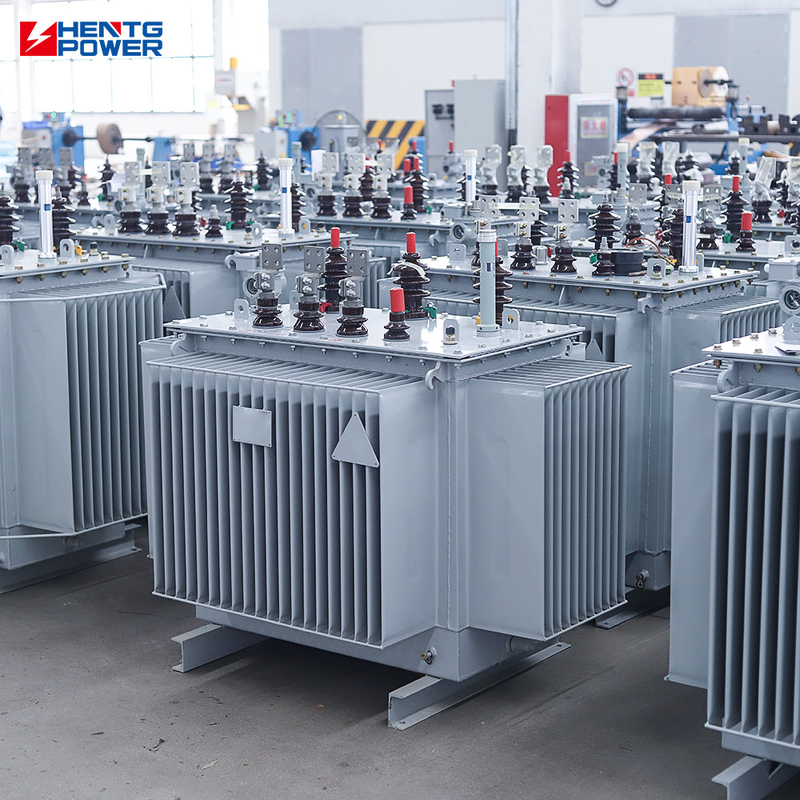

HENTG Power is an ISO9001 certified transformer manufacturer with a 100,000 m² production facility, specializing in reliable power solutions since 2011. Our team of 250 workers and 30+ engineers delivers 20,000 units annually, complying with international standards for global markets including North America, Africa, and Southeast Asia.

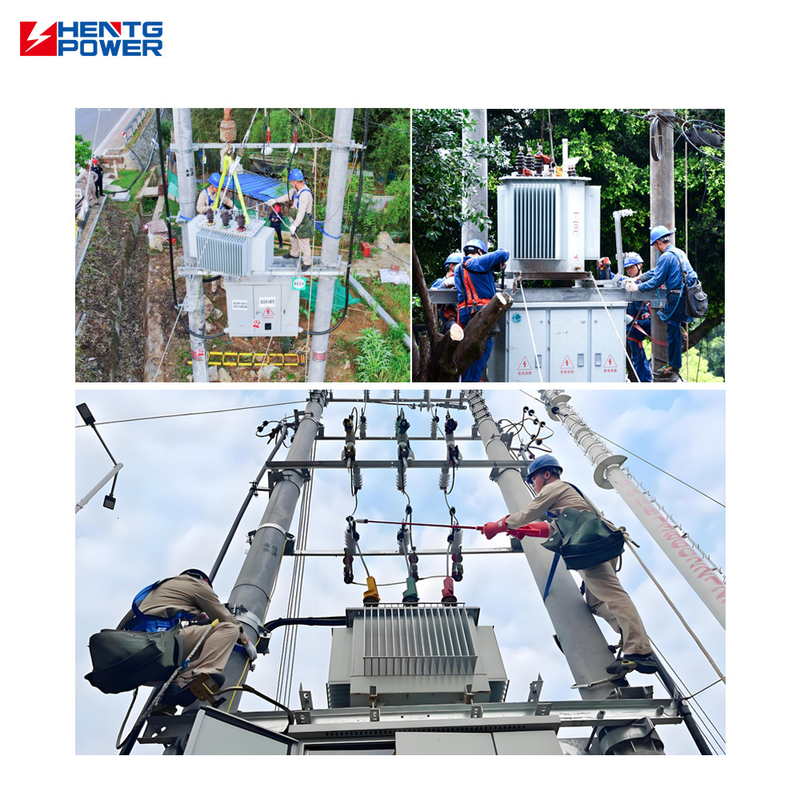

⚡️ Power Distribution Networks ⚡️ Industrial Facilities ⚡️ Renewable Energy Projects ⚡️ Urban Infrastructure ⚡️ Railway Systems
