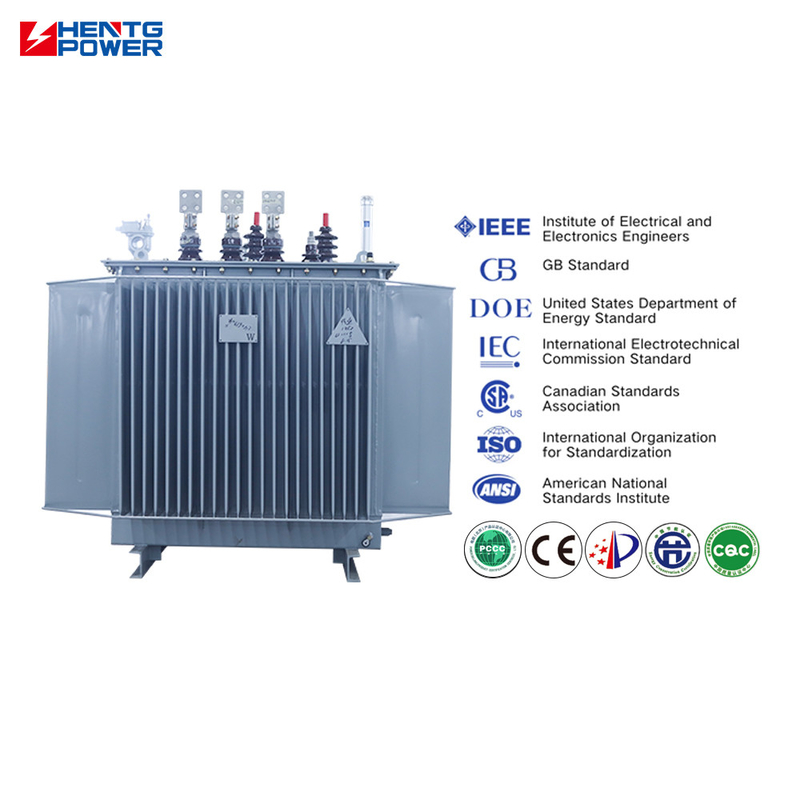

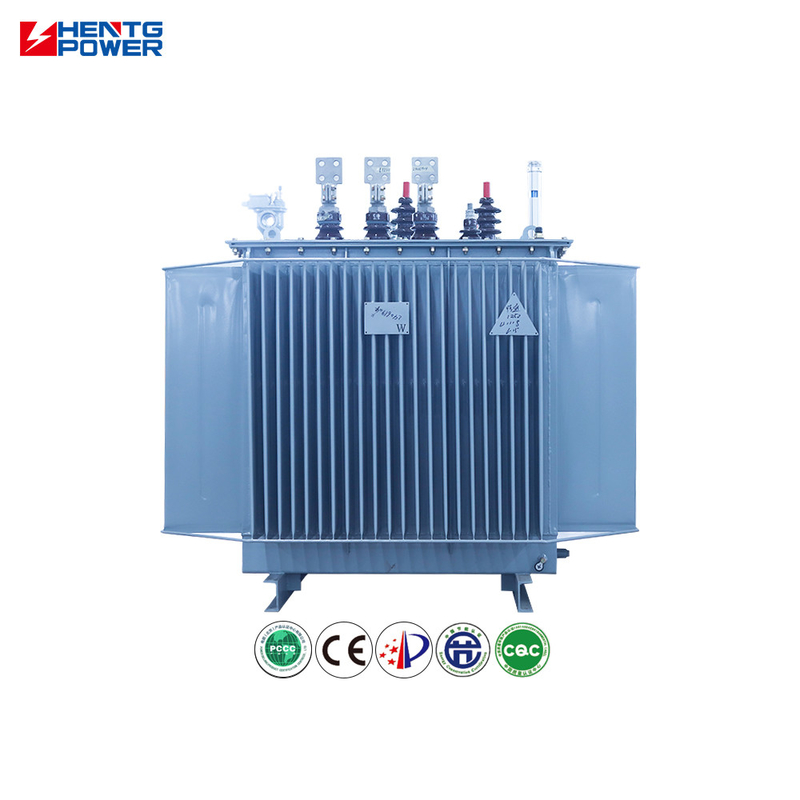

Hentg Power 10KV 50KVA Fabrieksprijs Warme verkoop Olie gevulde driefasige distributie transformator
Hentg Power 10KV 50KVA Factory Price Hot Selling Oil-filled Three-phase Distribution Transformer Product Specifications Attribute Value Type Power transformer, distribution transformer, Oil-filled Transformer Frequency 50Hz, 60Hz Winding Material Aluminum Application Power Distribution System Phase Three Coil Structure Layered Winding Coil Number Multi-winding coil Input Voltage 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV Output Voltage 5V, 400V, 208V,
50kva olie-gedompelde transformator
,50kva olie-gedompelde elektrische transformator
,met een vermogen van niet meer dan 50 kVA
| Attribuut | Waarde |
|---|---|
| Type | Vermogenstransformator, distributietransformator, oliegevulde transformator |
| Frequentie | 50Hz, 60Hz |
| Wikkelmateriaal | Aluminium |
| Toepassing | Stroomverdelingssysteem |
| Fase | Drie |
| Spoelstructuur | Gelaagde wikkeling |
| Spoelnummer | Multi-wikkelspoel |
| Ingangsspanning | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV |
| Uitgangsspanning | 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V |
| Koelmethode | ONAN ONAF OFAF |
| Vectorgroep | Dyn11/Yyn0 |
| Nominale capaciteit (KVA) | Vectorgroep | Spanningscombinatie | HV | Aftakbereik | LV | Verlies (W) | Impedantie (%) | ||
|---|---|---|---|---|---|---|---|---|---|
| Dy | Yy | ||||||||
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | ±5% ±2X2.5% | 0.4 | 70 | 505 | 480 | 4.0 | |
| 50 | 90 | 730 | 695 | ||||||
| 63 | 100 | 870 | 830 | ||||||
| 80 | 115 | 1050 | 1000 | ||||||
| 100 | 135 | 1265 | 1200 | ||||||
| 125 | 150 | 1510 | 1440 | ||||||
| 160 | 180 | 1850 | 1760 | ||||||
| 200 | 215 | 2185 | 2080 | 4.5 | |||||
| 250 | 260 | 2560 | 2440 | ||||||
| 315 | 305 | 3065 | 2920 | ||||||
| 400 | 370 | 3615 | 3440 | ||||||
| 500 | 430 | 4330 | 4120 | ||||||
| 630 | 510 | 4960 | 4960 | ||||||
| 800 | 630 | 6000 | 6000 | ||||||
| 1000 | 745 | 8240 | 8240 | 5.0 | |||||
-
Opwaartse olie-ondergedompelde transformator 125 kVA 12 kV transformator voor substation
Step Up Oil Immersed Type Transformer 125 KVA 12 KV Substation Power Transformer Product Specifications Attribute Value Type Distribution Transformer, Oil-filled Transformer Material Copper, Aluminum, Copper Winding Frequency 60Hz, 50Hz Winding Material Copper, Aluminum Application Power Distribution System Phase Three Rated Capacity 30-3000kVA Cooling ONAN/ONAF or Customized Protection Level IP00 Warranty 3 Years Product Overview The HENTG Power Step Up Transformer is a high
-
Instelbare Spanning Olie-ondergedompelde Transformator 6.3-10KV 250-630kVA 3-Fase Multi-Wikkeling
Adjustable Voltage Oil Immersed Transformer 6.3-10KV 250-630kVA 3 Phase Multi Winding Product Attributes Attribute Value Frequency 50Hz, 60Hz Coil Number Three Windings, Multi Winding, Two Windings, Single Winding Application Distribution system Coil Structure Fully sealed construction Output Voltage 415V, 110V, 220V, 380V, 400V, 440V Input Voltage 10.5kV, 3kV, 12.47kV, 6.6kV Type Oil-Immersed Transformer, Isolation Transformer, Voltage Regulator Transformer, AUTOTRANSFORMER,
-
Mv Hv Olie-ondergedompelde Transformator 315kVA tot 630kVA 3-Fase Distributietransformator 60Hz
MV HV Oil Immersed Transformer 315kVA to 630kVA 3 Phase Distribution Transformer 60Hz Product Specifications Attribute Value Frequency 60Hz Phase Three, Single Phase Application Power Transformer Output Voltage 415V, 380V, 400V, 110V, 220V, 440V, 480V Input Voltage 11kV, 10.5kV, 6.3kV, 6.6kV, 6kV, 10kV, 35kV Type Oil-Immersed Transformer Coil Copper/Aluminum Coil Usage Power, Distribution Transformer Rated Power 10-5000 kVA Insulation Class Class A, Class B, Class F, Class H
