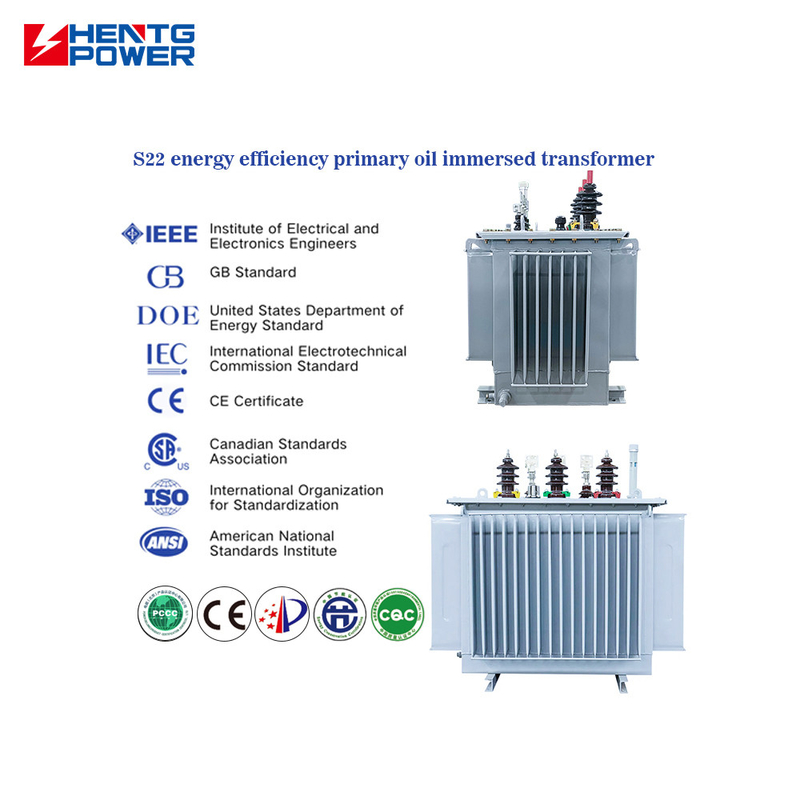

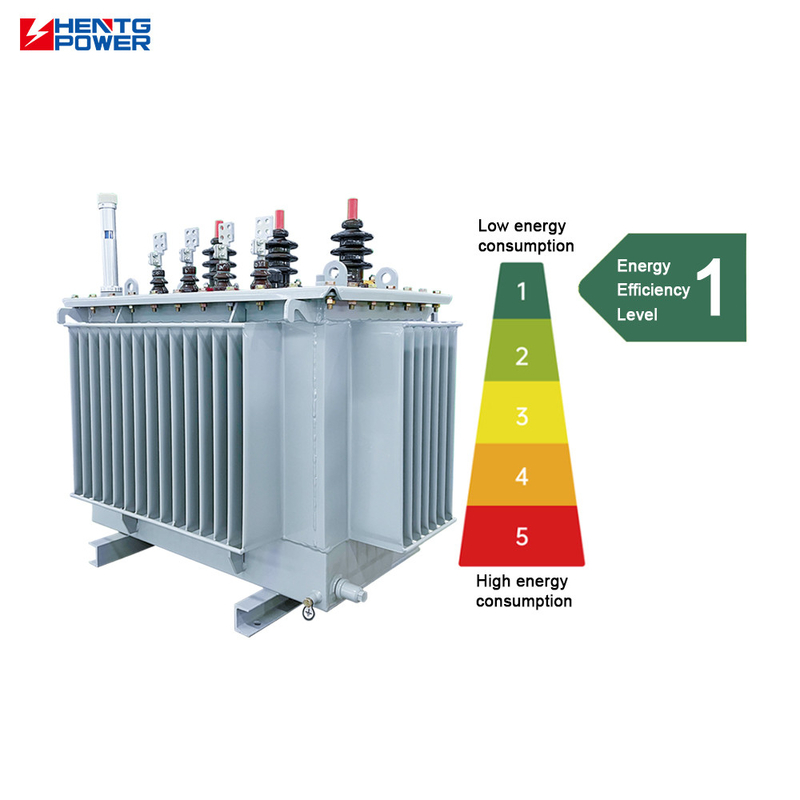

50Hz Frequentie Olie-Gedompelde Transformator 50kVA-800kVA 3 Fase 110V 380V 220V Uitgang
50Hz Frequency Oil Immersed Type Transformer 50kVA-800kVA 3 Phase 110V 380V 220V Output Product Specifications Attribute Value Frequency 50Hz, 60Hz Phase Three Application Power transformer Coil Structure Shell-Type Coil, layer coil, fully sealed construction, Disc Coil, round coil Output Voltage 10kV, 415V, 110V, 220V, 380V, 400V Input Voltage 10.5kV, 11kV, 3kV, 12.47kV, 6.6kV Type Oil-Immersed Transformer, Voltage Regulator Transformer Primary Voltage 6kV, 10-35KV Overload
220V Uitgang Olie-Gedompelde Transformator
,50Hz Frequentie Olie-Gedompelde Transformator
| Kenmerk | Waarde |
|---|---|
| Frequentie | 50Hz, 60Hz |
| Fase | Drie |
| Toepassing | Vermogenstransformator |
| Spoelstructuur | Shell-Type Spoel, laagspoel, volledig afgesloten constructie, Schijfspoel, ronde spoel |
| Uitgangsspanning | 10kV, 415V, 110V, 220V, 380V, 400V |
| Ingangsspanning | 10.5kV, 11kV, 3kV, 12.47kV, 6.6kV |
| Type | Olie-ondergedompelde Transformator, Spanningregelaar Transformator |
| Primaire Spanning | 6kV, 10-35KV |
| Overbelastingscapaciteit | 110% |
| Efficiëntie | 98% |
| Spoelnummer | 2 |
| Nominale HV Spanning | 11kV |
| Fabrikant | KNKONG |
| Spanningsbereik | 11kV - 230kV |
| Transformator Type | S11 Olie-ondergedompelde Transformator |
| Installatie | Binnen/Buiten |
| Nominale Capaciteit | 30-10000kVA |
| Beschermingsniveau | IP00 |
| Impedantie | 6% |
- Stroomdistributienetwerken
-
