Home > Products > Single Phase Pad Mounted Transformer >

CE Certified 50kVA Single Phase Pad Mounted Transformer for Residential & Commercial Power with Durable Design

CE Certified Pad Mounted Transformer

50kVA Oil Immersed Transformer

Durable Design Distribution Transformer

Place of Origin:

China

Brand Name:

HENTG Power

Certification:

Chat Now

Request A Quote

Product Details

Usage:

Power,Instrument,power Grid System,High Frequency,Distribution Transformer

Coil Number:

Autotransformer,Three,2,1-6,double Winding

Phase:

Three,Single,Single Or Three Phase

Coil Structure:

Toroidal,YNyn0d11,Other

Frequency:

50/60Hz,50Hz Or 60Hz

Rated Capacity:

30-3000kva,315,63,3000,250

Standard:

IEC60076,IEC Standards,ANCI,DIN,GB1094-1996

Type:

Oil Immersed,Oil Type,oil Immersed Current Transformer 132kv,Wound Core Oil-immersed,Oil-immersed

Rated Voltage:

35KV,13.2KV,10KV,6.3KV,22KV

Product Name:

Power Distribution Transformer,33/11 Kv 50/60Hz 5000Kva Oil Immersed Power Distribution Transformer,66KV Oil-immersed Power Transformers,Oil Type Power Transformer,22kv Oil Immersed Distribution High Voltage 5 Mva Power Transformer

Material:

Copper,Alumnium Or Copper,Copper+alumnium

Output Voltage:

15kv 10 Kv 0.4/0.69kv,0.415kv,13.8kv,0.4/0.23kV,200v/220/240/380v/400v/415v/440v

Vector Group:

Dyn11,Dyn5,Yyno Or Others,Dyn11/Yzn11,Dyn11 / Yyn0

Cooling Method:

Oil Natural,ONAN,Oil Cooling

Winding Material:

Cooper

Name:

Oil Immersed Distribusion Transformer,On-load Voltage Regulation Transformer,132kv Current Transformer,33kv Oil Immersed Electrical Ct Current Transformer Factory

Color:

Brown,Gull Grey

Input Voltage:

Customized Product,11kv/10.5kv/10kv/6.3kv/6kv,5-35kV

Advantage:

Best Price & Best Quality In China

Highlight:

CE Certified Pad Mounted Transformer

50kVA Oil Immersed Transformer

Durable Design Distribution Transformer

Payment & Shipping Terms

Minimum Order Quantity

info@hentgpower.com

Chat Now

Product Description

HENTG Power Single Phase 50kVA Pad Mounted Distribution Transformer

Designed for residential and commercial power applications with 50/60Hz frequency requirements.

Key Features

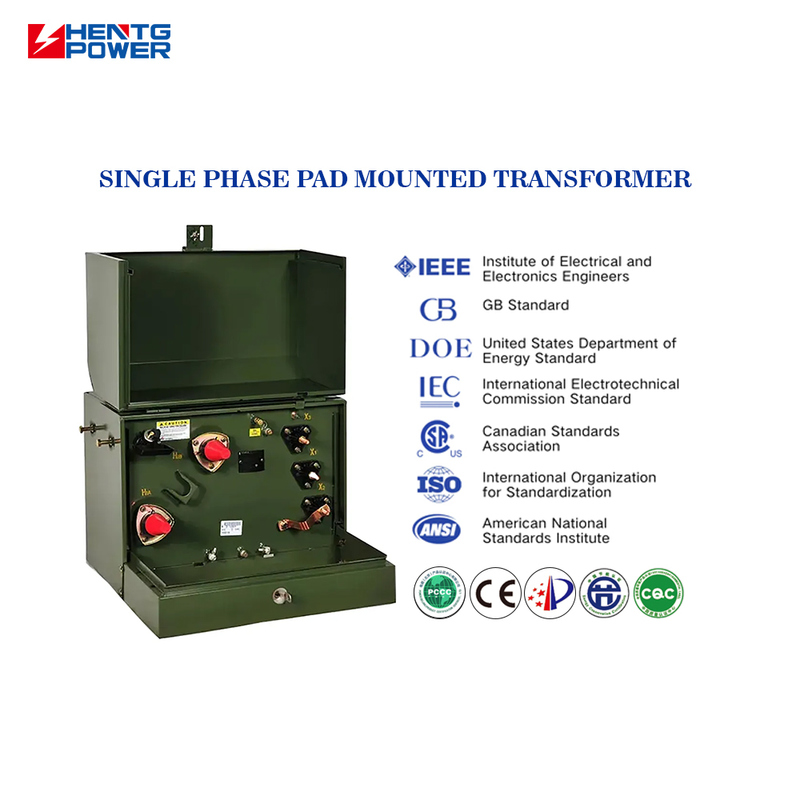

CE Certified & Global Standard Compliance: Meets EU CE directives with rigorous safety and EMC testing for worry-free operation and global market access.

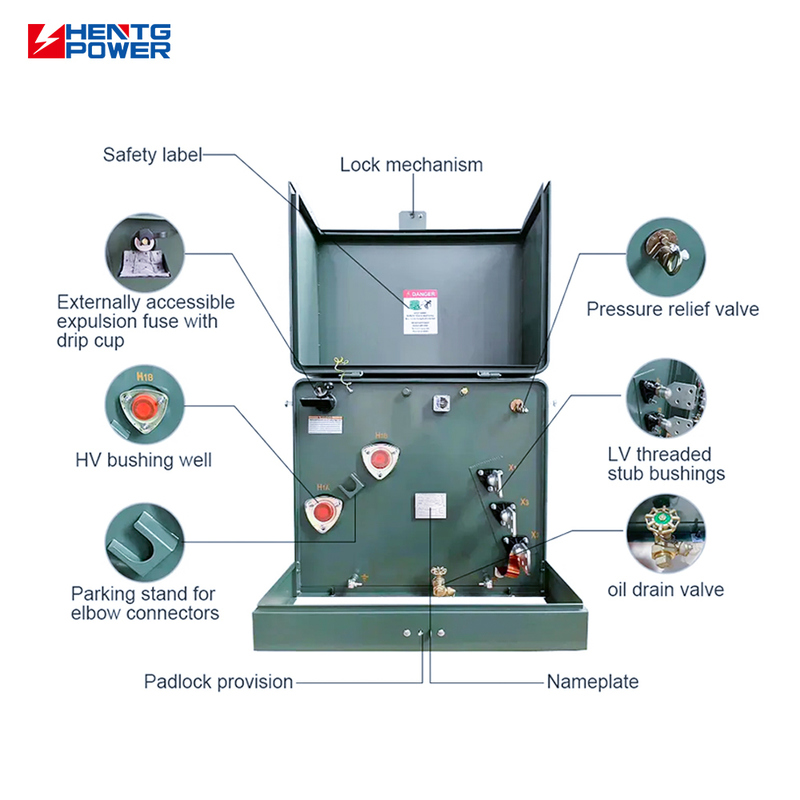

Durable Pad-Mounted Design: Fully enclosed protection against harsh environments including rain, dust, and salt spray. Ideal for outdoor, community, and agricultural applications.
Easy Installation: Eliminates need for poles with direct concrete base placement, saving space and reducing installation costs.
Stable Performance: Provides precise voltage output for 50kVA to 100kVA power range applications, protecting home appliances and commercial equipment.
Efficient Operation: High-quality silicon steel construction delivers low losses, low noise, and high efficiency for reliable community, business, and farm power solutions.

Technical Specifications

Capacity (KVA)	HV	Tapping Range	LV	No-load Loss (W)	Load Loss (W)	Dimension (mm)	Efficiency (%)
15	2400-34500	±2X2.5%	110-690	60-150	330-1150	610-740 (W) * 740-960 (D) * 840 (H)	98.82-99.49
25	2400-34500	±2X2.5%	110-690	60-150	330-1150	610-740 (W) * 740-960 (D) * 840 (H)	98.95
37.5	2400-34500	±2X2.5%	110-690	60-150	330-1150	610-740 (W) * 740-960 (D) * 840 (H)	99.05
50	2400-34500	±2X2.5%	110-690	60-150	330-1150	610-740 (W) * 740-960 (D) * 840 (H)	99.11
75	2400-34500	±2X2.5%	110-690	60-150	330-1150	610-740 (W) * 740-960 (D) * 840 (H)	99.19
100	2400-34500	±2X2.5%	110-690	60-150	330-1150	610-740 (W) * 740-960 (D) * 840 (H)	99.25
